Super-Flo emitter

SKU: BW0110
Auswahl Steuerzone / Lieferland
0,25 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
l/h
Price
Quantity

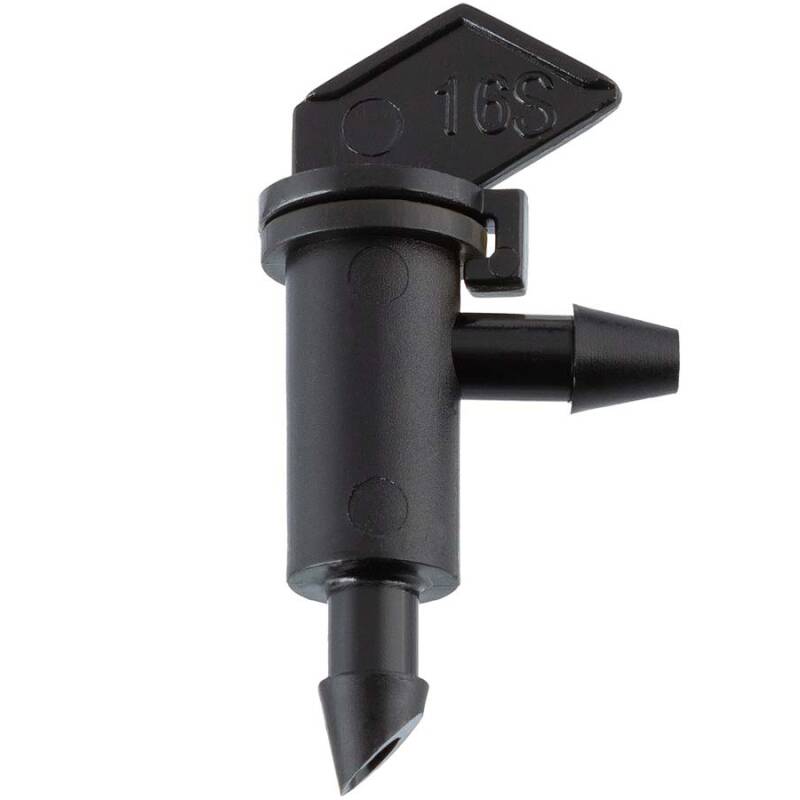

Super-Flo emitter
BW0110.00S.111
Schwarz, 4 l/h
4 l bei 1 bar
0,35 €*
pc.:

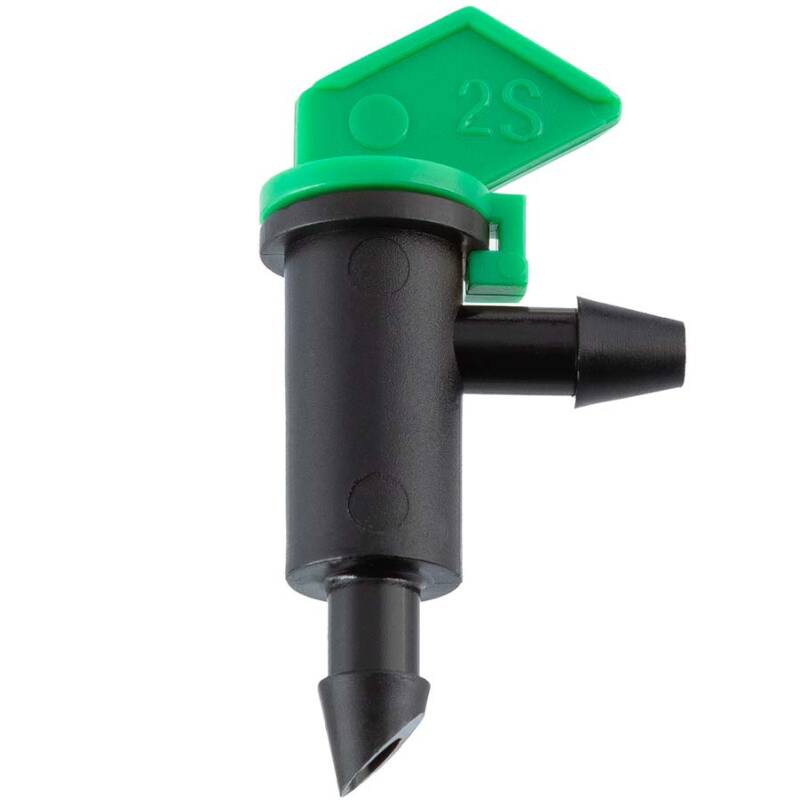

Super-Flo emitter
BW0110.00G.222
Grün, 8l/h
8 l/h bei 1 bar
0,35 €*
pc.:

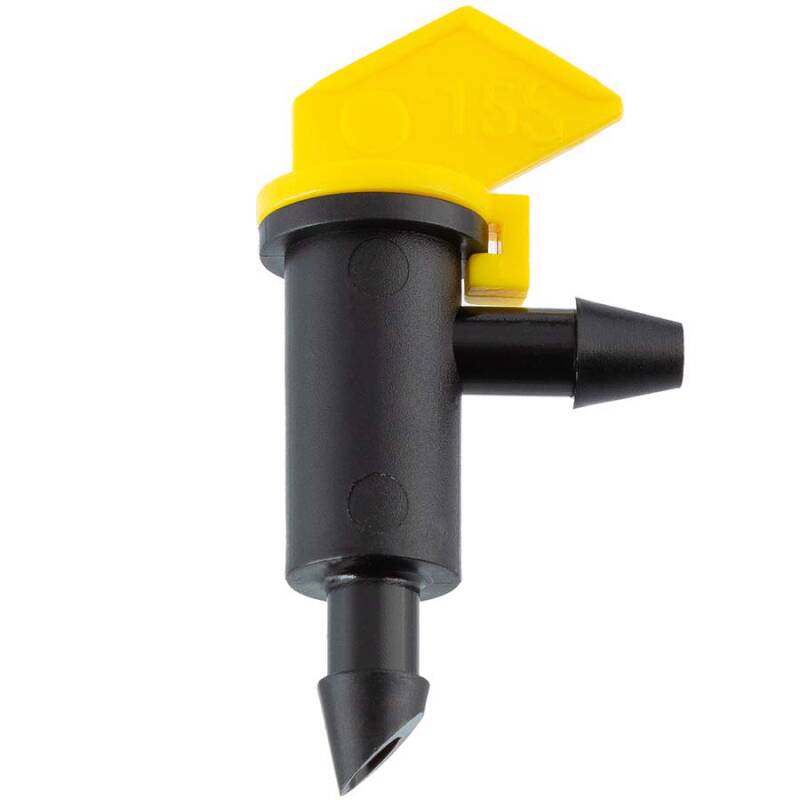

Super-Flo emitter
BW0110.00G.333
Gelb, 16 l/h
0 -37,8
0,35 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

SUPER-FLOTM Emitter

The Super-FloTM Emitter is uniquely designed and can be easily disassembled by turning it.
It features a standard barb connection at the base, as well as a side barb connection as an outlet for connecting to Soft PVC Micro Tubing or Hard PE Micro Tubing.


It is available in three different flow rates. The SUPER-FLOTM Emitter operates from 0.7 to 2.0 bar. In use, the colored handle always points towards the outlet barb.


Micro Irrigation with High Accuracy

  • up to eight independently adjustable flow rates
  • flow rate adjustable from 0 - 20 gph (0 - 75.7 l/h)
  • maximum operating pressure 3 bar at 20°C
  • screw-on 1/2" (20.96mm) thread
  • easily integrable into an irrigation system
  • barb connection suitable for PE (hard) 4mm micro tubing
  • integrated filter in 1/2" connection
BW-114 Application

SUPER-FLOTM Bubbler - Adjustable Distributor

Ideal for multiple, adjustable water discharge in close proximity.
BW-114 Installation

SUPER-FLOTM Bubbler - Distributor Installation

The SUPER-FLOTM Distributor can be installed either above or below ground in a valve box. The underground installation blends better into the overall design of your system, and the PE hard micro tubing can also be laid underground up to the point of use.
BW-112 Micro Tubing Closure

Micro Tubing - Application Tip

Close the micro tubing with end caps that are not in use to prevent insects from entering.
