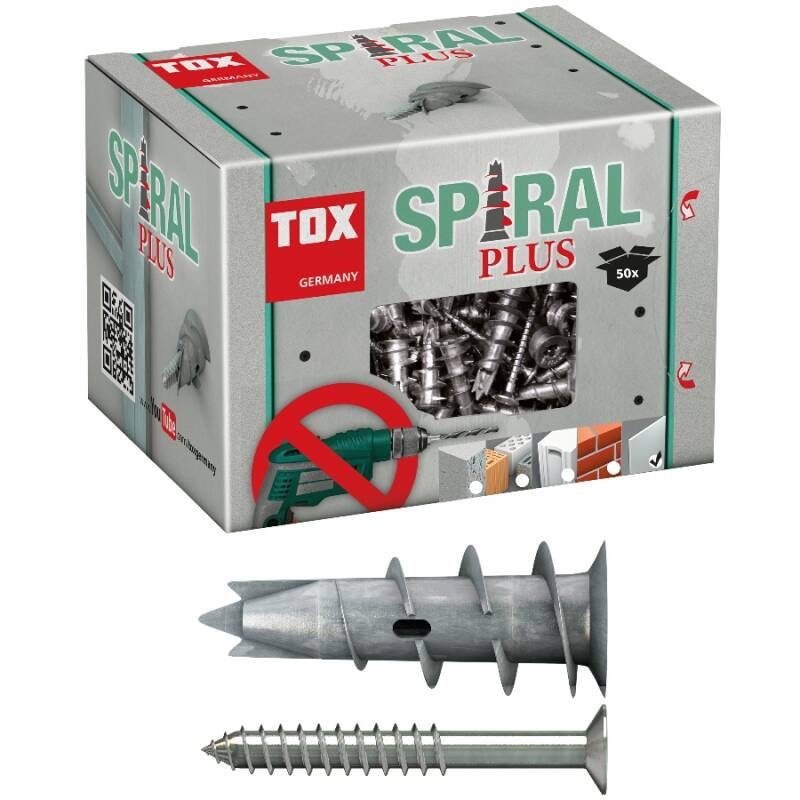

TOX gypsum plasterboard wall plug Spiral Plus

SKU: TOXZ68
Auswahl Steuerzone / Lieferland
from
0,35 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
Inhalt Dübel
Inhalt Schraube
Anchor lenght
mind. Hohlraumtiefe
dp
tfix
Dowel Ø
Screw Ø
Drill Ø
Price
Quantity

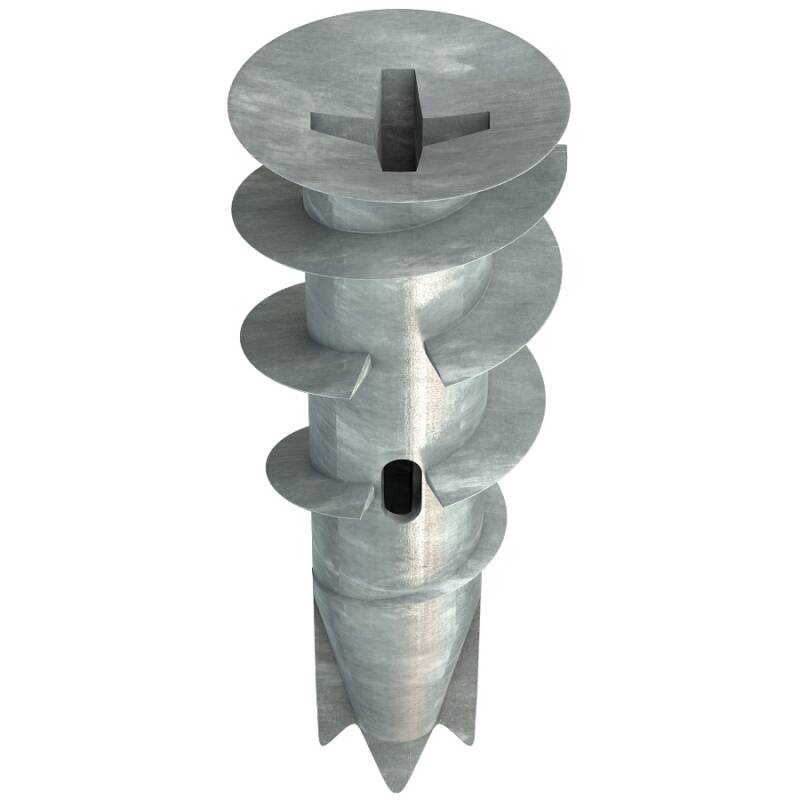

TOX gypsum plasterboard wall plug Spiral Plus 37, 1 pc.
TOXZ68.ONE.100
Typ 37 Stück
---
---
32
28
25
---
---
4,5
---
0,35 €*
pc.:

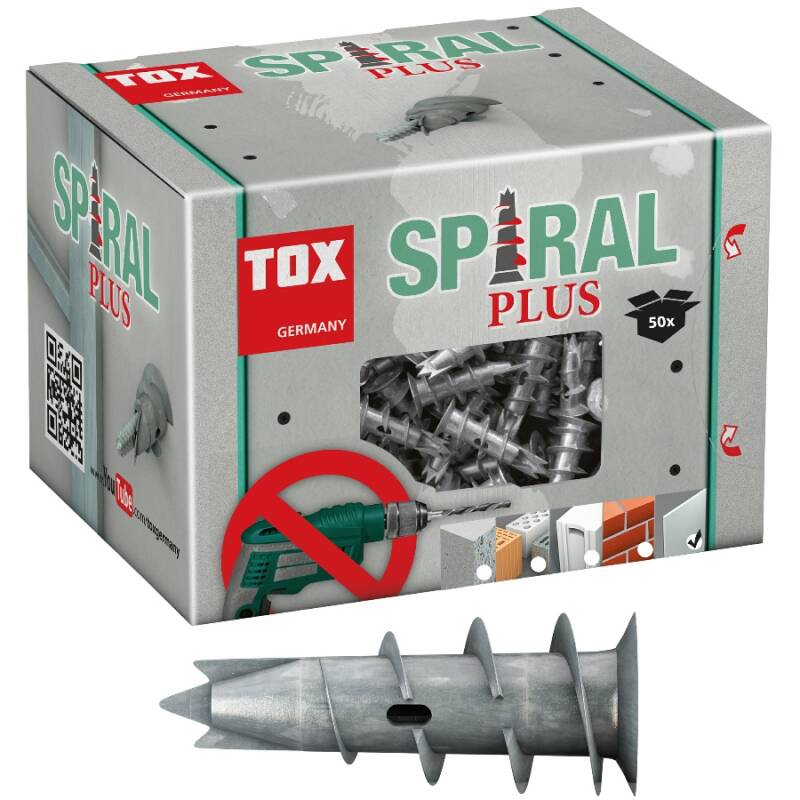

TOX gypsum plasterboard wall plug Spiral Plus 37, box 50 pc.
TOXZ68.BOX.100
Typ 37 Box
50 Stk.
---
32
28
25
---
---
4,5
---
15,08 €*
box:

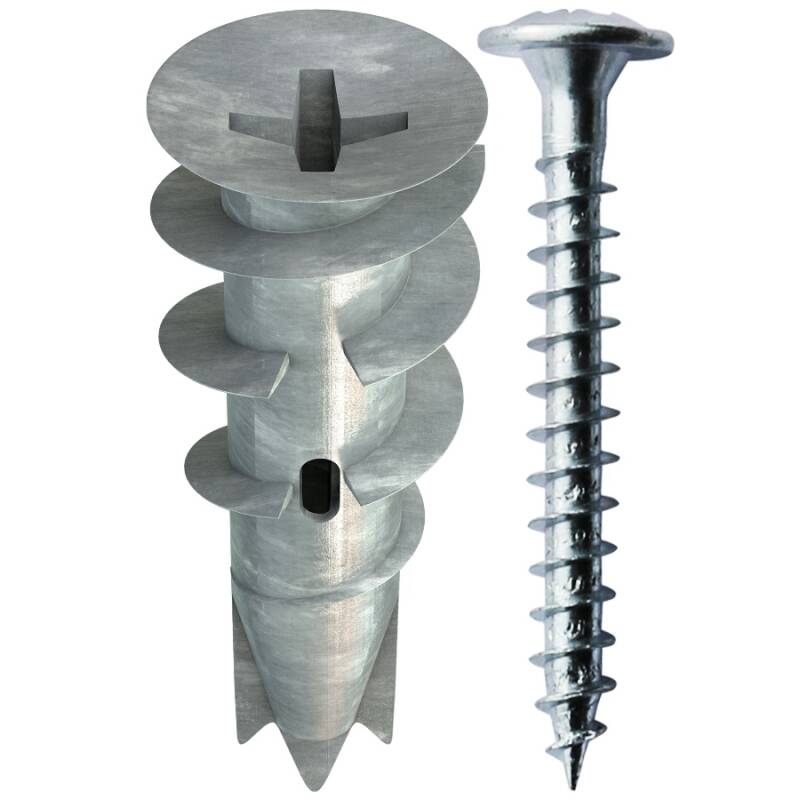

TOX gypsum plasterboard wall plug Spiral Plus 37-2 + screw, 1 pc.
TOXZ68.ONE.120
Typ 37-2 + Schraube (Stück)
---
---
32
28
25
12
---
4,5 x 35
---
0,44 €*
pc.:

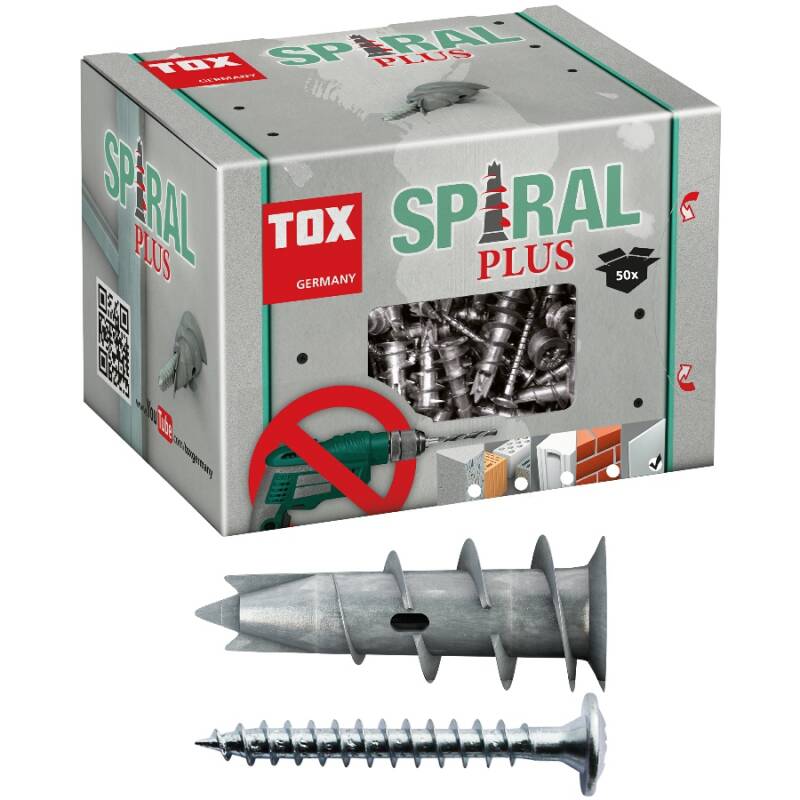

TOX gypsum plasterboard wall plug Spiral Plus 37-2 + screw, box 50 pc.
TOXZ68.BOX.120
Typ 37-2 + Schraube (Box)
50 Stk.
50 Stk.
32
28
25
12
---
4,5 x 35
---
19,54 €*
box:

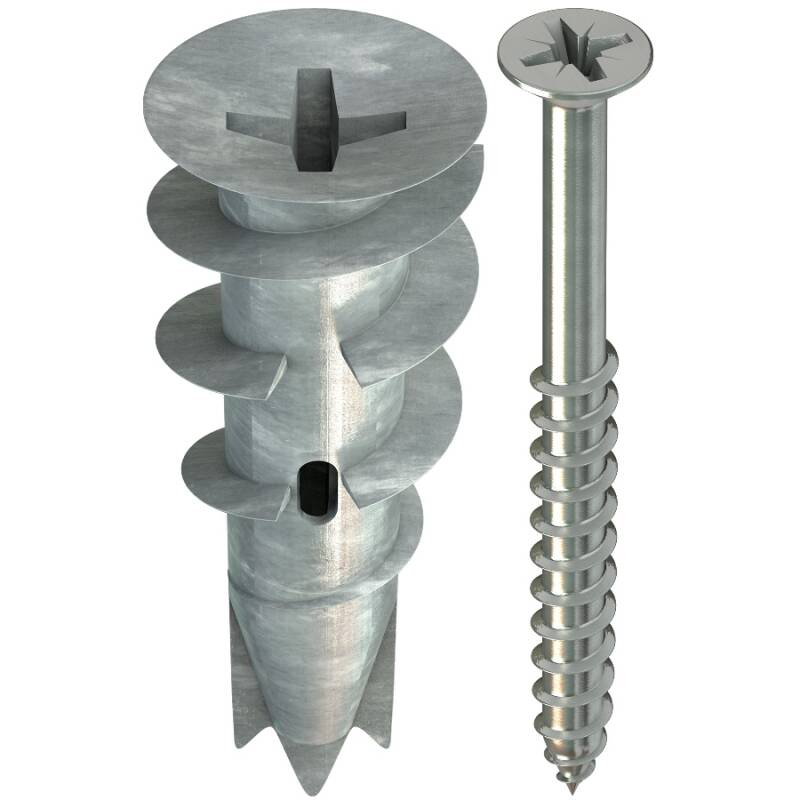

TOX gypsum plasterboard wall plug Spiral Plus 37-4 + screw, 1 pc.
TOXZ68.ONE.140
Typ 37-4 + Schraube (Stück)
---
---
32
28
25
27
---
4,5 x 50
---
0,55 €*
pc.:
TOX gypsum plasterboard wall plug Spiral Plus 37-4 + screw, box 50 pc.
TOXZ68.BOX.140
Typ 37-4 + Schraube (Box)
50 Stk.
50 Stk.
32
28
25
27
---
4,5 x 50
---
20,81 €*
box:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

TOX Gipskartondübel Spiral Plus

  • Ohne Vorbohren in Gipskarton
  • Direkt einschrauben
  • Kein Spezialwerkzeug erforderlich
  • In Gipsfaserplatten sehr hohe Haltwerte bis zu 20kg je Befestigungspunkt
  • Auch für M4-Schrauben geeignet
Tox Gipskartondübel Spiral Plus


Bitte beachten Sie hierzu die Baustoffe & Haltewerte Tabelle, sowie die fachgerechte Montage, um einen sicheren Wert zu gewährleisten.


DOWNLOADTOX Gipskartondübel Spiral Plus - Technisches Datenblatt
