All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

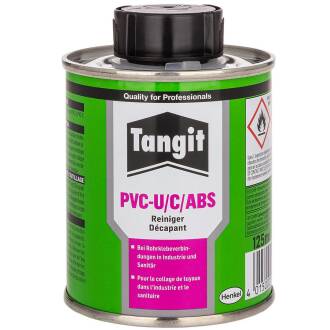

Tangit PVC-U adhesive and cleaner
Hazard warning: PVC-U adhesive Tangit
Tetrahydrofuran - Methyl ethyl ketone - Cyclohexanone
Highly flammable liquid and vapor. Causes serious eye damage. Causes skin irritation. May cause respiratory irritation. May cause drowsiness and dizziness. Suspected of causing cancer. Keep out of the reach of children. Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. Do not smoke. Do not breathe mist/vapor. Use only outdoors or in well-ventilated areas. Wear protective gloves/eye protection. IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses if possible. Continue rinsing. Immediately call a POISON CENTER or doctor. Dispose of waste and residues in accordance with local regulations.
Consumption of adhesive and cleaner for 100 splices
Pipe A-ø
Adhesive kg
Cleaner kg
32mm
approx. 0.8
approx. 0.5
40 mm
approx. 1.1
approx. 0.7
50mm
approx. 1.5
approx. 0.9
63mm
approx. 1.7
approx. 1.1
75mm
approx. 2.2
approx. 1.3
90mm
approx. 3.0
approx. 1.4
110mm
approx. 4.0
approx. 1.7
125mm
approx. 5.0
approx. 2.0
160mm
approx. 6.0
approx. 2.5
200mm
approx. 7.0
approx. 3.0
The information provided should be seen as a maximum guide value. The actual consumption depends on conditions such as working technique, gap size and temperature, depending on the application.
Use of PVC-U cleaner
Release agents are used in the manufacture of fittings. These and other greasy environmental influences or residues are safely removed by PVC-U Cleaner. PVC-U Cleaner dissolves the surface structure of the PVC-U fitting to a certain extent, which leads to optimum adhesion of the PVC-U adhesive. PVC-U Cleaner is a solvent mixture and has an infinite shelf life. It evaporates if the container is not closed.
PVC-U Cleaner is a solvent and highly flammable!
Use of PVC-U adhesive
Gluing PVC-U pipe and fittings is actually the wrong term, as the process is cold welding. After final curing, the pipe, adhesive and socket form a firmly bonded unit and, if carried out correctly, the joint has the same quality characteristics as the rest of the PVC-U pipe system. Once the adhesive has cured, no chemical substances are released into the pipe system. The bonded joint can no longer be removed and can only be destroyed mechanically. PVC-U adhesive can be stored unopened in its original container for at least 24 months - theoretically indefinitely. However, as a minimal exchange of oxygen takes place even in the unopened original container, the adhesive will thicken over time. This process is "accelerated" when the container is opened. Viscous adhesive that is no longer spreadable and can no longer be applied with a brush should no longer be used. Do not dilute with cleaner! Minimum ambient temperature for bonding work: + 5°C.
PVC-U adhesive contains a high proportion of solvents and is highly flammable!
