U-PVC air release valve

from
12,91 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Product picture
Item no.
Variation
B
G
L
Weight
Price
Quantity

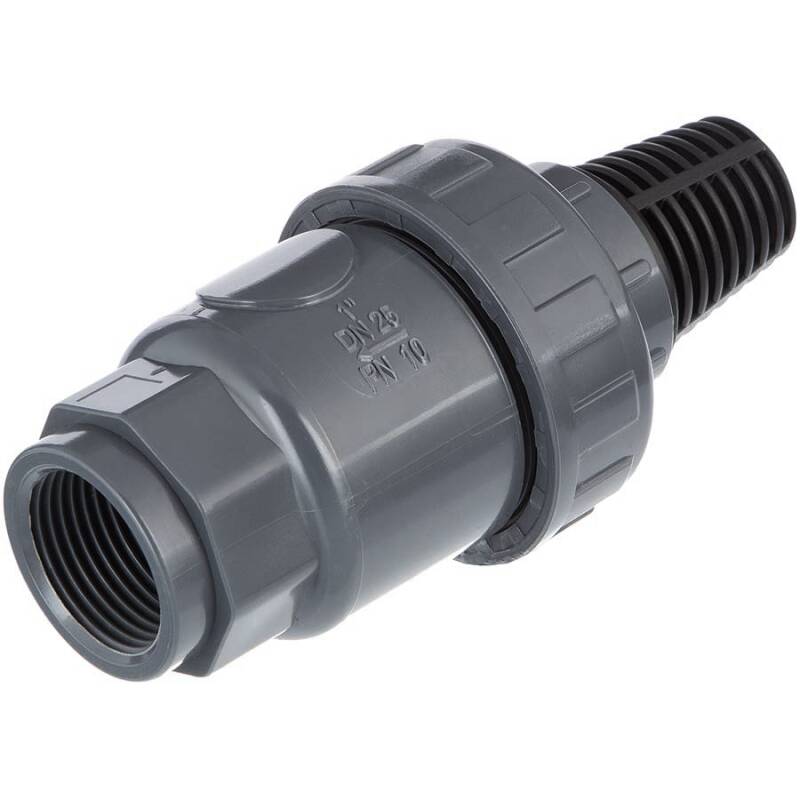

U-PVC air release valve female thread 1/2"
AKE960.0IG.020
IG 1/2"
49
1/2" (20,96mm)
116
93
12,91 €*
U-PVC air release valve female thread 3/4"
AKE960.0IG.025
IG 3/4"
60
3/4" (26,44mm)
127
144
15,51 €*
U-PVC air release valve female thread 1"
AKE960.0IG.032
IG 1"
67
1" (33,25mm)
143,5
208
24,04 €*
pc:

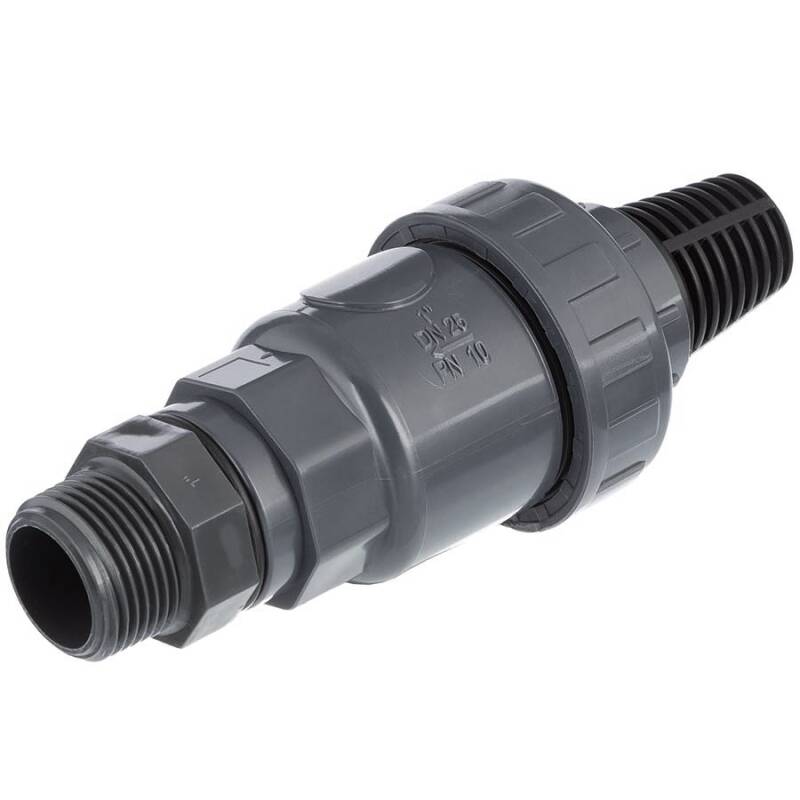

U-PVC air release valve male thread 1/2"
AKE960.0AG.020
AG 1/2"
49
1/2" (20,96mm)
144
104
13,30 €*
U-PVC air release valve male thread 3/4"
AKE960.0AG.025
AG 3/4"
60
3/4" (26,44mm)
158
167
15,97 €*
U-PVC air release valve male thread 1"
AKE960.0AG.032
AG 1"
67
1" (33,25mm)
181
245
24,67 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U Be- und Entlüftungsventil Rückschlagventil mit Kugel

Be- und Entlüftungsventil wahlweise mit Anschluss Innengewinde oder Aussengewinde zum Be- und Entlüften von Schwimmbad Pool- und Solaranlagen sowie zum Vermeiden einer Vakuumbildung von Behältern und Rohrleitungen.

Verbauen Sie das Be- und Entlüftungsventil stehend an höchster Stelle. Befindet sich in Ihrem System Luft, so entweicht diese über das Entlüftungsventil automatisch. Nachfließendes Wasser drückt die innenliegende Kugel gegen die Dichtung und verschließt den weiteren Ausfluss. Wird Ihr System geleert, so öffnet sich das Ventil durch die zurückfallende Kugel und nachfließende Luft füllt Ihr Leitungssystem und vermeidet ein eventuelle Beschädigung durch Unterdruck. Die Öffnung des Be- und Entlüftungsventils ist durch einen Gitterkorbaufsatz geschützt. Im Ventil befinden sich keine Metallteile.


Wichtig: Nicht verwendbar bei offenen Systemen, Niederdruckanlagen (unter PN 0,5 bar) oder Systemen mit hohem Lufteinschluss, da hier bei jeder Luftentweichung auch Restwasser mit austritt. In geschlossenen Räumen nicht verwendbar..


Anschluss:
Innen- oder Aussengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C
Material:
PVC-U, Gitterkorb: PP Polypropylen
Farbe:
Grau, Gitterkorb: Schwarz
DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD PVC-U technische Charakteristik
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
