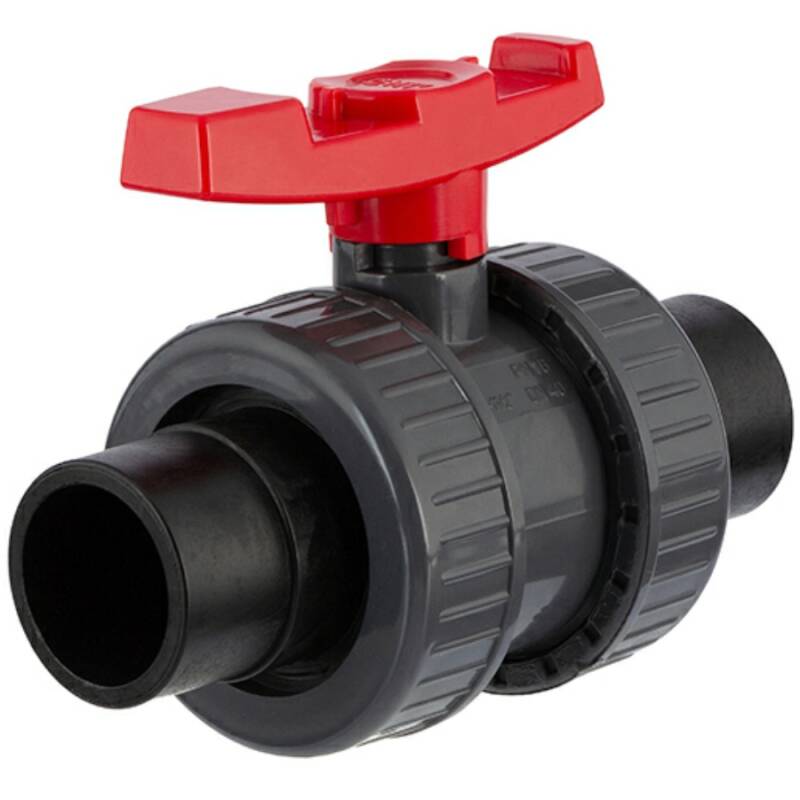

U-PVC and PTFE 2 way ball valve with male sockets PE100

from
8,78 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
Variants

Product picture
Item no.
Variation
B
D
DN
H
L
L1
Price
Quantity
U-PVC and PTFE 2 way ball valve with male sockets PE100 20mm
AK0955.000.020
20mm
56
20
14,5
71
123
17
8,78 €*
U-PVC and PTFE 2 way ball valve with male sockets PE100 25mm
AK0955.000.025
25mm
77
25
18,5
89
144
19,5
11,72 €*
pc.:
U-PVC and PTFE 2 way ball valve with male sockets PE100 32mm
AK0955.000.032
32mm
87
32
25
94
153
22,5
16,66 €*
pc.:
U-PVC and PTFE 2 way ball valve with male sockets PE100 40mm
AK0955.000.040
40mm
102
40
30
118
172
26
17,71 €*
pc.:
U-PVC and PTFE 2 way ball valve with male sockets PE100 50mm
AK0955.000.050
50mm
119
50
40
136
194
30
28,54 €*
pc.:
U-PVC and PTFE 2 way ball valve with male sockets PE100 63mm
AK0955.000.063
63mm
145
63
49
163
233
38
37,83 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U Kugelhahn PTFE (Teflon) 2fach Überwurfmutter, 2fach PE100 Stutzen

Anschluss:
2fach Überwurf, 2fach PE100 Stutzen
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
Kugeldichtung:
PTFE (Teflon)
O-Ring:
EPDM 70sh
Material:
PVC-U
Farbe:
Grau, Griff Rot
Durchflussrichtung:
geschraubte Kugelsicherung, Durchfluss in beiden Richtungen möglich
Einsatzbereich:
Pikto
Qualität Legende:
HTC-Indrustrie Qualitätslogo
Industriequalität: Druckleitungen für hochwertige Bewässerungssysteme, Marine, Chemie- und Textilindustrie.

Wichtig: Das Gewinde der Überwurfmutter ist bei jedem Kugelhahn oder anderer Armatur nicht mit Gewindefittings kombinierbar und ausschließlich für die Verschraubung auf den Kugelhahn vorgesehen. Dieses Gewinde ist nicht genormt und weicht von Hersteller zu Hersteller ab.


PVC-U Kugelhahn mit verschraubbarer Kugelhalterung (Sicherheitsblock), PTFE-Dichtung




HTC AK0955 Kugelhahn Explosionsbild
 Nummer  Bezeichnung  Material
 1  Einlegeteil
 Stutzen PE100
 PE100
 2  Einlegeteil
 Überwurfmutter
 PVC-U
 3  Einlegeteil
 O-Ring
 EPDM
 4  Körper  PVC-U
 5  Griff  Polypropylen
 6  Kugelwelle  PVC-U
 7  Wellendichtung  2fach EPDM
 8  Kugeldichtung  PTFE (Teflon)
 9  Kugel  PVC-U
 10  Kugeldichtung  PTFE (Teflon)
 11  O-Ring  EPDM
 12  Sicherheitsblock  PVC-U
 13  Einlegeteil
 O-Ring
 EPDM
 14  Einlegeteil
 Überwurfmutter
 PVC-U
 15  Einlegeteil
 Stutzen PE100
 PE100

orange dot Justierbarer Sicherheitsblock

AK0950 Justierbarer Sicherheitsblock

  • das Feature der Oberklasse: justierbarer Sicherheitsblock
    • beidseitige Durchflussrichtung, da die Kugelsicherung durch Gewinde gesichert ist
    • Einstellmöglichkeit der Abdichtung und Anpassung der Leichtgängigkeit
  • polierte Kugel - Antiblock System verhindert das ruckartige Öffnen
  • Doppelte O-Ring Abdichtung am Kugelhahnschaft bei allen Modellen
  • Kugeldichtung PTFE (Teflon)
  • O-Ring EPDM 70 shore
  • industriell einsetzbar - HDPE Kugelsitz: gute Beständigkeit gegen verdünnte Säuren, Alkalien, Salzlösungen (Salzwasser, Meerwasser), Spiritus, Ester, Fette und Benzine
  • kompakte, moderne Bauweise
  • hervorragendes Preis-/Leistungsverhältnis
  • Ersatzteilversorgung

orange dot Ersatzteile Kugelhahn HTC Serie AK0955

DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
