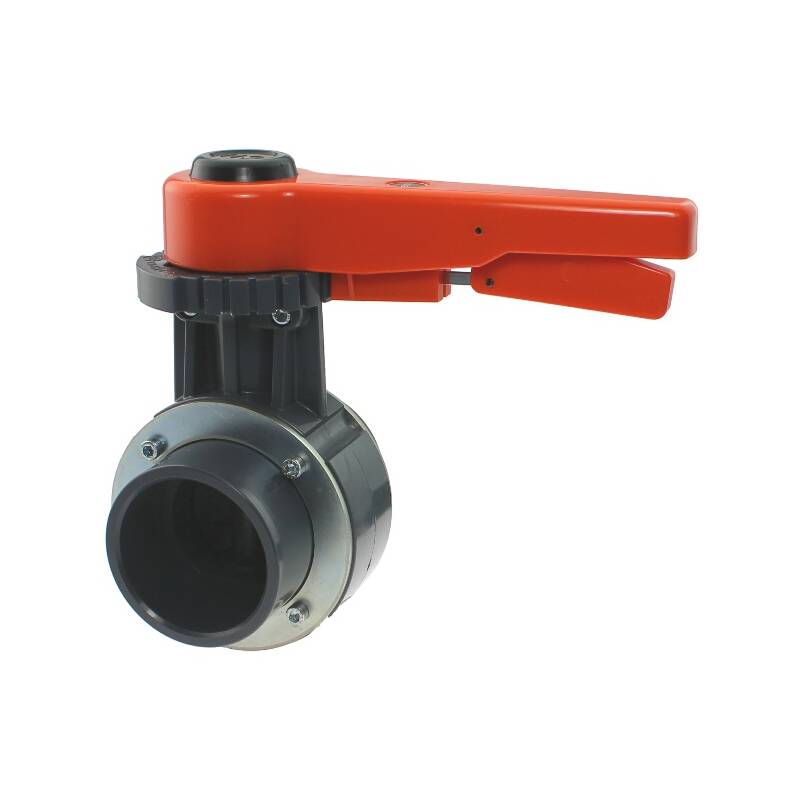

U-PVC butterfly valve solvent socket

SKU: AK0004
Auswahl Steuerzone / Lieferland
from
125,77 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
A
B
D
D1
D2
H
H1
H2
P
X
Weight
Price
Quantity
AK0004.000.075
75mm
49,5
126
65
75
90
239,5
65
126,5
209,5
103
2043
125,77 €*
pc.:
AK0004.000.090
90mm
50
154
80
90
105
254,5
72
134,5
209,5
103
2297
137,86 €*
pc.:
AK0004.000.110
110mm
48
160
100
110
125
296
94,5
153,5
209,5
103
2749
157,08 €*
pc.:
AK0004.000.125
125mm
56
180
125
125
140
310,8
109,5
153,5
209,5
103
3965
193,49 €*
pc.:
AK0004.000.160
160mm
64
212
150
160
184
345
123
174
299
103
5490
241,53 €*
pc.:
AK0004.000.200
200mm
72
256
200
200
220
407,7
145
215
299
103
9165
300,81 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Absperrklappe 2fach Klebemuffe

Anschluss:
2fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 6 bar bei 20°C, ab 160mm max. 4 bar
Material:
PVC-U
Farbe:
Grau
  • PVC-U Klappenteller
  • PVC-U Klappendichtring EPDM
  • Achse Stahl verzinkt
  • PP Handhebel mit Arretiermechanismus

DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
