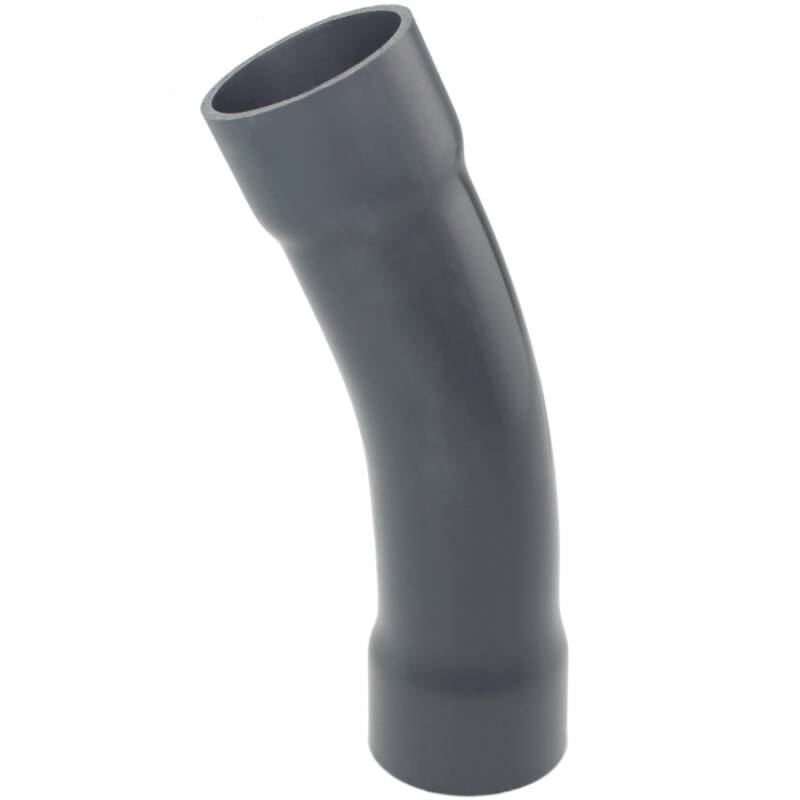

U-PVC f/f solvent bend 22,5°, 10 bar

from
0,50 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Item no.
Variation
D
H
L
Weight
Price
Quantity
AF0418.P10.020
20mm
20
mind. 95
mind. 19
18
0,50 €*
pc.:
AF0418.P10.025
25mm
25
mind. 97
mind. 20
24
0,67 €*
pc.:
AF0418.P10.032
32mm
32
mind. 107
mind. 22
32
1,07 €*
pc.:
AF0418.P10.040
40mm
40
mind. 142
mind. 26
62
1,81 €*
pc.:
AF0418.P10.050
50mm
50
mind. 196
mind. 31
133
2,86 €*
pc.:
AF0418.P10.063
63mm
63
mind. 205
mind. 43
226
4,38 €*
pc.:
AF0418.P10.075
75mm
75
mind 250
mind. 45
356
5,07 €*
pc.:
AF0418.P10.090
90mm
90
mind. 300
mind. 51
624
5,80 €*
pc.:
AF0418.P10.110
110mm
110
mind. 370
mind. 61
940
10,16 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U Bogen 22,5° aus Rohr, 2fach Klebemuffe

Anschluss:
2fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau

Wichtig: Im Gegensatz zu Spritzgussfittings werden diese Fittings aus Rohr thermisch verformt. Die Maße sowie die Ausführung können deshalb z.T. leicht abweichen.


DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
