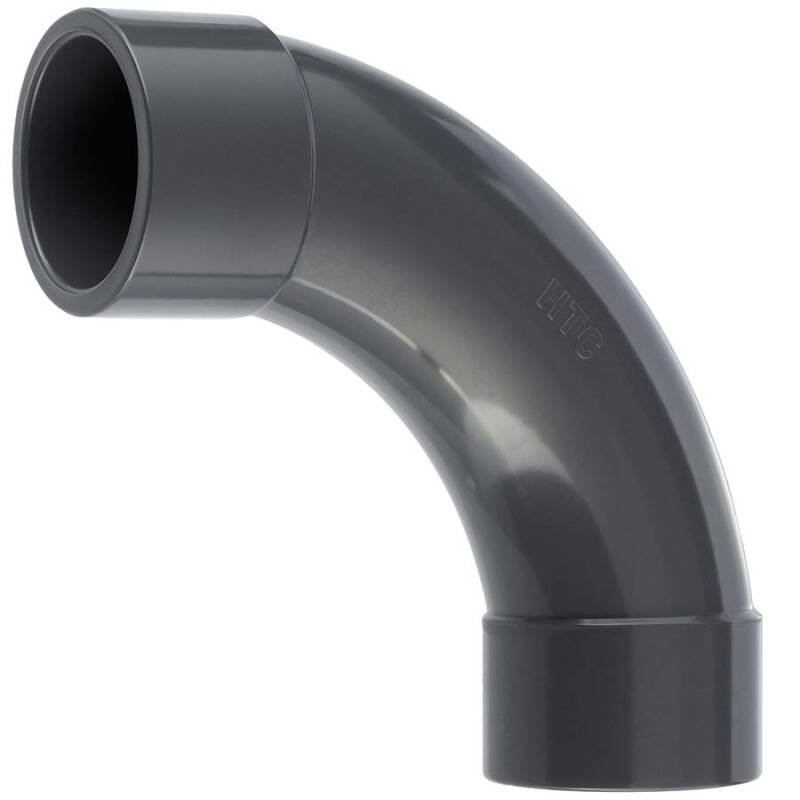

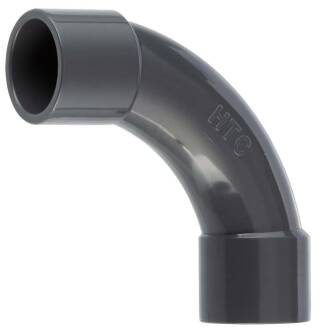

U-PVC f/f solvent bend 90°, 16 bar (injection moulding)

SKU: AF0424
Auswahl Steuerzone / Lieferland
from
1,34 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
Variants

Item no.
Variation
D
DN
E
L
Z
PN
Price
Quantity
AFX404.000.020
20mm
20
15
28
16
40
16
1,34 €*
pc.:
AFX404.000.025
25mm
25
20
36
19
50
16
2,21 €*
pc.:
AFX404.000.032
32mm
32
25
41
22
64
16
3,02 €*
pc.:
AFX404.000.040
40mm
40
32
51
26
80
16
4,38 €*
pc.:
AFX404.000.050
50mm
50
40
63
31
100
16
4,63 €*
pc.:
AFX404.000.063
63/75mm
63
50
75
38
126
16
7,97 €*
pc.:
AFX404.000.075
75mm
75
65
95
44
150
16
16,08 €*
pc.:
AFX404.000.090
90mm
90
80
113
51
180
16
22,65 €*
pc.:
AFX404.000.110
110mm
110
100
137
61
220
16
35,28 €*
pc.:
AFX404.000.160
160mm
160
150
189
86
207
16
170,15 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U Bogen 90°, Spritzguss 2fach Klebemuffe

Anschluss:
2fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
Besonderheit 50mm und 63mm:
jeweils Innenmaß (Muffe) und Aussenmaß (Stutzen) nutzbar
Einsatzbereich:
Pikto
Qualität Legende:
HTC-Indrustrie Qualitätslogo
Industriequalität: Druckleitungen für hochwertige Bewässerungssysteme, Marine, Chemie- und Textilindustrie.
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
