Variants

Item no.
Variation
E
F
G
G1
H
L
L1
S
Price
Quantity
AF0804.016.016
16mm x 3/8"
16
36
3/8" (16,66mm)
3/4" (26,44mm)
90
35
20
3,62 €*
pc:
AF0804.020.018
18mm x 1/2"
18
36
1/2" (20,96mm)
3/4" (26,44mm)
92
35
20
3,62 €*
pc:
AF0804.020.020
20mm x 1/2"
20
36
1/2" (20,96mm)
3/4" (26,44mm)
93
38
20
3,81 €*
pc:
AF0804.025.020
3/4" x 20mm
20 (20,4/19,2)
42,5
3/4" (26,44mm)
1" (33,25mm)
86
29,5
17
36
3,69 €*
pc:
AF0804.025.025
25mm x 3/4"
25
41
1" (33,25mm)
105
42
23
4,03 €*
pc:
AF0804.032.025
1" x 25mm
25 (25,5/24,2)
53
1" (33,25mm)
1 1/4" (41,91mm)
100
35
21
45,5
5,41 €*
pc:
AF0804.032.032
1" x 32mm
32 (32,5/31,5)
53
1" (33,25mm)
1 1/4" (41,91mm)
105
39
21
45,5
5,59 €*
pc:
AF0804.040.032
1 1/4" x 32mm
32 (32,5/31,5)
60,5
1 1/4" (41,91mm)
1 1/2" (47,81mm)
107,5
40
24
55
6,78 €*
pc:
AF0804.040.038
1 1/4" x 38mm
38 (38,8/37,5)
60,5
1 1/4" (41,91mm)
1 1/2" (47,81mm)
124,5
56
31
55
6,96 €*
pc:
AF0804.040.040
1 1/4" x 40mm
40
61
1 1/4" (41,91mm)
1 1/2" (47,81mm)
130
52
31
55
7,00 €*
pc:
AF0804.050.038
38mm x 1 1/2"
38
74
1 1/2" (47,80mm)
2" (59,61mm)
140
57
37,5
7,27 €*
pc:
AF0804.050.050
50mm x 1 1/2"
50
74
1 1/2" (47,80mm)
2" (59,61mm)
143
57
37,5
7,94 €*
pc:
AF0804.063.060
60mm x 2"
60
90
2" (59,61mm)
2 1/2" (75,18mm)
144
60
44,5
12,51 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

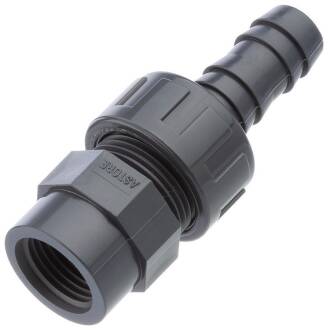

PVC-U Schlauchtüllen Verschraubung Innengewinde

Anschluss:
Innengewinde x Schlauchtüllenverschraubung
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
Dichtung:
EPDM
Einsatzbereich:
Pikto
Qualität Legende:
HTC-Indrustrie Qualitätslogo
Industriequalität: Druckleitungen für hochwertige Bewässerungssysteme, Marine, Chemie- und Textilindustrie.
DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
