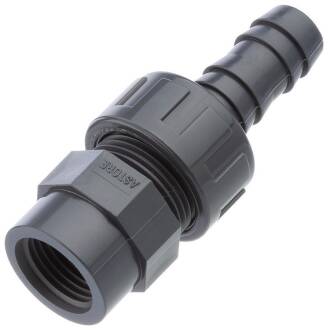

U-PVC female threaded union with hose tail

SKU: AF0804
Auswahl Steuerzone / Lieferland
from
3,62 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
E
F
G
G1
H
L
L1
S
Price
Quantity
AF0804.016.016
16mm x 3/8"
16
36
3/8" (16,66mm)
3/4" (26,44mm)
90
35
20
3,62 €*
pc:
AF0804.020.018
18mm x 1/2"
18
36
1/2" (20,96mm)
3/4" (26,44mm)
92
35
20
3,62 €*
pc:
AF0804.020.020
20mm x 1/2"
20
36
1/2" (20,96mm)
3/4" (26,44mm)
93
38
20
3,81 €*
pc:
AF0804.025.020
3/4" x 20mm
20 (20,4/19,2)
42,5
3/4" (26,44mm)
1" (33,25mm)
86
29,5
17
36
3,69 €*
pc:
AF0804.025.025
25mm x 3/4"
25
41
1" (33,25mm)
105
42
23
4,03 €*
pc:
AF0804.032.025
1" x 25mm
25 (25,5/24,2)
53
1" (33,25mm)
1 1/4" (41,91mm)
100
35
21
45,5
5,41 €*
pc:
AF0804.032.032
1" x 32mm
32 (32,5/31,5)
53
1" (33,25mm)
1 1/4" (41,91mm)
105
39
21
45,5
5,59 €*
pc:
AF0804.040.032
1 1/4" x 32mm
32 (32,5/31,5)
60,5
1 1/4" (41,91mm)
1 1/2" (47,81mm)
107,5
40
24
55
6,78 €*
pc:
AF0804.040.038
1 1/4" x 38mm
38 (38,8/37,5)
60,5
1 1/4" (41,91mm)
1 1/2" (47,81mm)
124,5
56
31
55
6,96 €*
pc:
AF0804.040.040
1 1/4" x 40mm
40
61
1 1/4" (41,91mm)
1 1/2" (47,81mm)
130
52
31
55
7,00 €*
pc:
AF0804.050.038
38mm x 1 1/2"
38
74
1 1/2" (47,80mm)
2" (59,61mm)
140
57
37,5
7,27 €*
pc:
AF0804.050.050
50mm x 1 1/2"
50
74
1 1/2" (47,80mm)
2" (59,61mm)
143
57
37,5
7,94 €*
pc:
AF0804.063.060
60mm x 2"
60
90
2" (59,61mm)
2 1/2" (75,18mm)
144
60
44,5
12,51 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U Schlauchtüllen Verschraubung Innengewinde

Anschluss:
Innengewinde x Schlauchtüllenverschraubung
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
Dichtung:
EPDM
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
