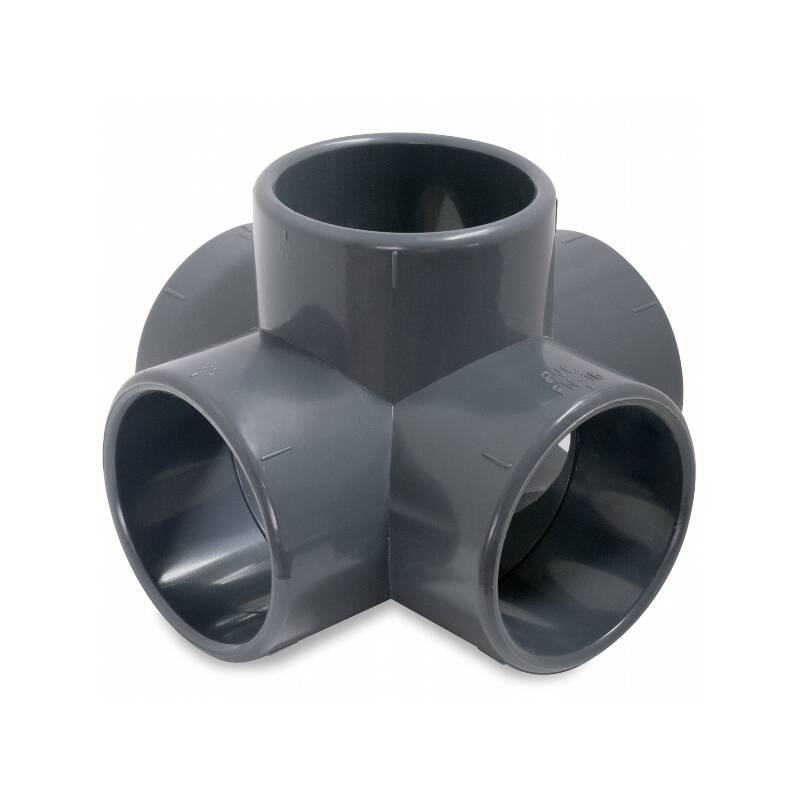

PVC-U Cross Piece, Quintuple Female Socket

SKU: AF0511
Auswahl Steuerzone / Lieferland
from
0,88 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(16) { ["meta keywords"]=> string(17) "PVC-U Kreuz_5fach" ["bild_abmessungen"]=> string(40) "/bilder/abmessungen/AF0511_Zeichnung.jpg" ["tabellen_ansicht"]=> string(1) "1" ["dimension_0010_variante"]=> string(22) "
10er Pack" ["dimension_0140_d"]=> string(8) "" ["dimension_0141_d1"]=> string(0) "" ["dimension_0400_l"]=> string(0) "" ["dimension_0420_l1"]=> string(0) "" ["dimension_0340_h"]=> string(0) "" ["dimension_0951_pn"]=> string(2) "10" ["break_after"]=> string(1) "1" ["break_after_color"]=> string(7) "#b1b1b1" ["break_after_thickness"]=> string(3) "2px" ["anbieterkennzeichnung_htc"]=> string(1) "1" ["hat_3d_bilder"]=> string(1) "1" ["gpsr_manufacturer_name"]=> string(5) "HTC©" }
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
D
D1
H
L
L1
PN
Price
Quantity
AY041
20mm
Stück
20
25,5
49
71,5
21,5
10
0,88 €*
pc:
AF0511.000.020-10
20
10er Pack
20
25,5
49
71,5
21,5
10
7,02 €*
0,70 € per pc.
AY042
25mm
Stück
25
30,5
56
81
25
10
1,29 €*
pc:
AF0511.000.025-10
25mm
10er Pack
25
30,5
56
81
25
10
10,25 €*
1,02 € per pc.
AY043
32
Stück
32
38,5
63,5
90,5
26
10
2,05 €*
pc:
AF0511.000.032-10
32
10er Pack
32
38,5
63,5
90,5
26
10
16,39 €*
1,64 € per pc.
AF0511.000.050
50
Stück
50
61
88
114
31
10
6,56 €*
pc:
AF0511.000.050-10
50
10er Pack
50
61
88
114
31
10
40,14 €*
4,01 € per pc.
AF0511.000.063
63mm
63
76
141
10
9,27 €*
pc:
AF0511.000.075
75mm
75
90
167
10
16,21 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U Cross Piece, Quintuple Female Socket

Connection:
Quintuple Female Socket
Temperature:
up to 45°C constant, temporarily up to 60°C
Operating pressure (PN):
max. 16 bar at 20°C
Material:
PVC-U
Color:
Grey
DOWNLOAD RoHS confirmation HTC
DOWNLOAD Bonding of PVC-U pipes and fittings
DOWNLOAD The thread designation – or why 1" is not exactly 25.4 mm
DOWNLOAD Sealing and connecting plastic threads
DOWNLOAD Chemical resistance of plastics
DOWNLOAD External characteristics of injection-moulded fittings
