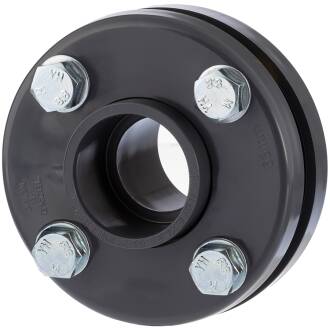

U-PVC flange set incl. gasket and zinc-coated screws

pc
  • Available immediately
  • Delivery time: 2 - 4 Workdays  (DE - int. shipments may differ)
All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.

Description

PVC-U Flanschsatz incl. Dichtung und Schraubensatz verzinkt, Klebemuffe

Anschluss:
Flanschsatz, 2fach Klebemuffe, bestehend aus:
- 1 Bundbuchse
- 1 Aufsteckflansch
- 1 Festflansch mit Bundbuchse
- 1 Dichtung Profi EPDM
- kompletter Schraubensatz verzinkt
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C, ab 160mm max. 10 bar (1.0 MPa)
Material:
PVC-U
Farbe:
Grau
MEHR LESEN Detailinfo: PVC-U Bundbuchse
MEHR LESEN Detailinfo: PVC-U Aufsteckflansch Losflansch
MEHR LESEN Detailinfo: PVC-U Festflansch mit Bundbuchse
MEHR LESEN Detailinfo: PVC-U Dichtung Profi
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
DOWNLOAD Montageanleitung für Flanschverbindungen
