Variants

Item no.
Variation
D
E
L
Z
Weight
Price
Quantity
AF0509.000.010
10mm
10
16
12
6,5
10
2,65 €*
pc:
AF0509.000.012
12mm
12
18
12
7,5
12
2,69 €*
pc:
AF0509.000.016
16mm
16
22
14
9,5
22
2,90 €*
pc:
AF0509.000.020
20mm
20
27
18
10
31
0,82 €*
pc:
AF0509.000.025
25mm
25
32
21
12,5
43
1,13 €*
pc:
AF0509.000.032
32mm
32
41
22
18
98
1,48 €*
pc:
AF0509.000.040
40mm
40
52
29
19
163
2,48 €*
pc:
AF0509.000.050
50mm
50
61
33,5
25
220
3,20 €*
pc:
AF0509.000.063
63mm
63
75
38
32,5
400
4,90 €*
pc:
AF0509.000.075
75mm
75
89
42
39
606
9,25 €*
pc:
AF0509.000.090
90mm
90
106
51
46
1115
13,45 €*
pc:
AF0509.000.110
110mm
110
130
61
56
1870
19,74 €*
pc:
AF0509.000.125
125mm
125
145
74
66
2345
69,51 €*
pc:
AF0509.000.160
160mm
160
183
90
79
4200
71,39 €*
pc:
A-509-200
200mm
200
229
115
100
7250
139,69 €*
pc:
A-509-225
225mm
225
255
130
127
10380
65,90 €*
pc:
A-509-280
280mm
280
313
153
140
17340
224,30 €*
pc:
A-509-315
315mm
315
356
166
157
24900
264,39 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

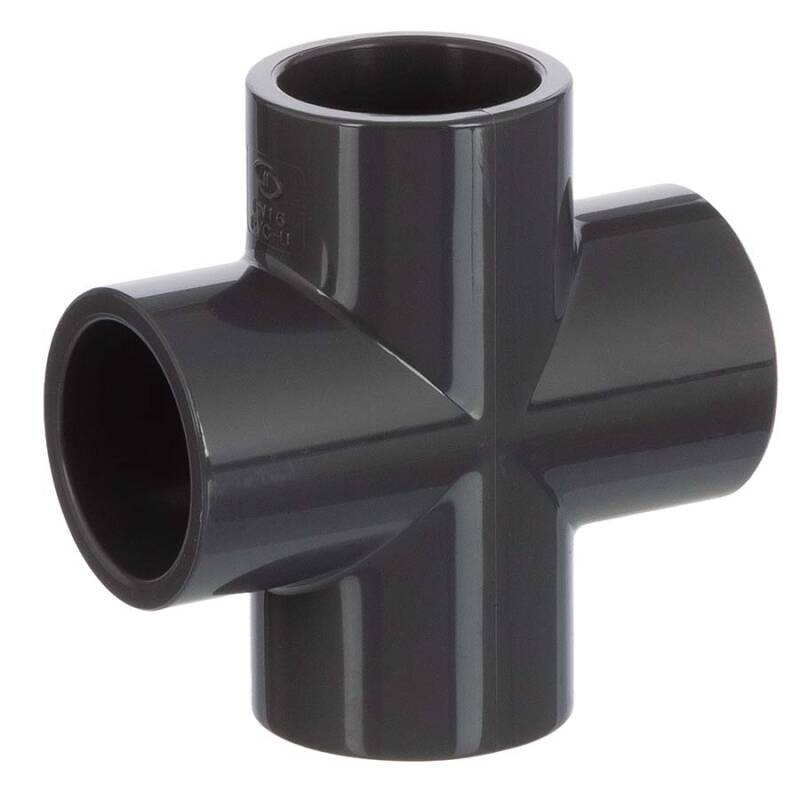

PVC-U Kreuz-Stück, 4fach Klebemuffe

Anschluss:
4fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C
Material:
PVC-U
Farbe:
Grau
DOWNLOAD PVC-U technische Charakteristik
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
DOWNLOAD RoSH Bestätigung - Coraplax CH PVC-U Fittings und Armaturen
DOWNLOAD Unbedenklichkeit Kontakt mit Trinkwasser und Nahrung - Coraplax PVC-UFittings
DOWNLOAD RoHS Konformitätserklärung - HTC
DOWNLOAD RoHS Konformitätserklärung - Hidroten
