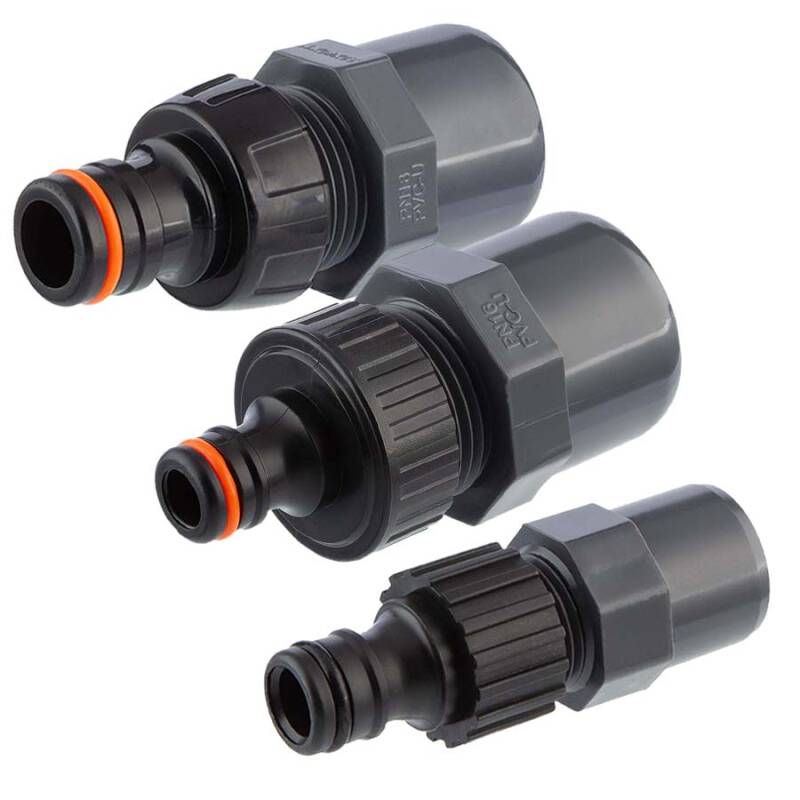

U-PVC male/female solvent socket with QuickConnector

0,71 €

including 19% VAT., plus shipping

Item number: AF0303

How to measure a threaded fitting

Item no.	Variation	D	D1	DN	L	SW	Price	Quantity
AF0303.QUI.020	20/25mm x QuickConnector	20	25	9	75	27	0,71 €^*	pc:
AF0303.QUI.025	25/32mm x QuickConnector	25	32	9	80	36	0,88 €^*	pc:
AF0303.QUI.032	32/40mm x QuickConnector	32	40	9	87	43	1,42 €^*	pc:
AF0303.QUI.040	40/50mm x QuickConnector	40	50	9	94	55	2,34 €^*	pc:
AF0303.QUI.050	50/63mm x QuickConnector	50	63	9	101	65	3,39 €^*	pc:
AF0303.JET.032	32/40mm x POWER JET	32	40	15	93	43	3,39 €^*	pc:
AF0303.JET.040	40/50mm x POWER JET	40	50	15	99	55	4,30 €^*	pc:
AF0303.JET.050	50/63mm x POWER JET	50	63	15	107	65	5,34 €^*	pc:

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

E-Mail

I would like to be notified by e-mail.
You will receive an automatic e-mail as soon as the item is available again. Unfortunately, we are not able to inform you in advance about an expected delivery date.

I have taken note of the privacy policy. I consent to my details and data being collected and stored electronically in order to respond to my enquiry. Note: you can revoke your consent for the future at any time by sending an e-mail to info@ht-connect.de.

Article details

Description

PVC-U Übergangsmuffe, Klebestutzen/-muffe x QuickConnector

Anschluss:

Klebestutzen/-muffe x QuickConnector (Gardena-System)

Gewindeverbindung:

inklusive Flachdichtung

DN:

QuickConnector Standard (1/2"-System) 9mm
POWER JET (3/4"-System) 15mm

Temperatur:

bis 45°C konstant, kurzzeitig 60°C

Arbeitsdruck ():

max. 6 bar bei 20°C Medium Wasser

Material:

PVC-U, QuickConnector: PP Polypropylen

Farbe:

Grau, QuickConnector: Schwarz

Einsatzbereich:

Profi-System POWER JET

Sie benötigen einen größeren Durchlass für mehr Durchfluss? Dann ist unser System POWER JET ideal. Das Profi-System POWER JET ist ideal in Verbindung mit längeren Schläuchen oder bei Einsatz von Pumpen. POWER JET Schlauchstecksystem für den Einsatz zwischen Hahn und Schlauch sowie Schlauch und Gerät - schnell, zuverlässig, wasserdicht und effektiv.

Kompatibel zu allen anderen Komponenten aus dem POWER JET Programm.

Zum Profi-System POWER JET
