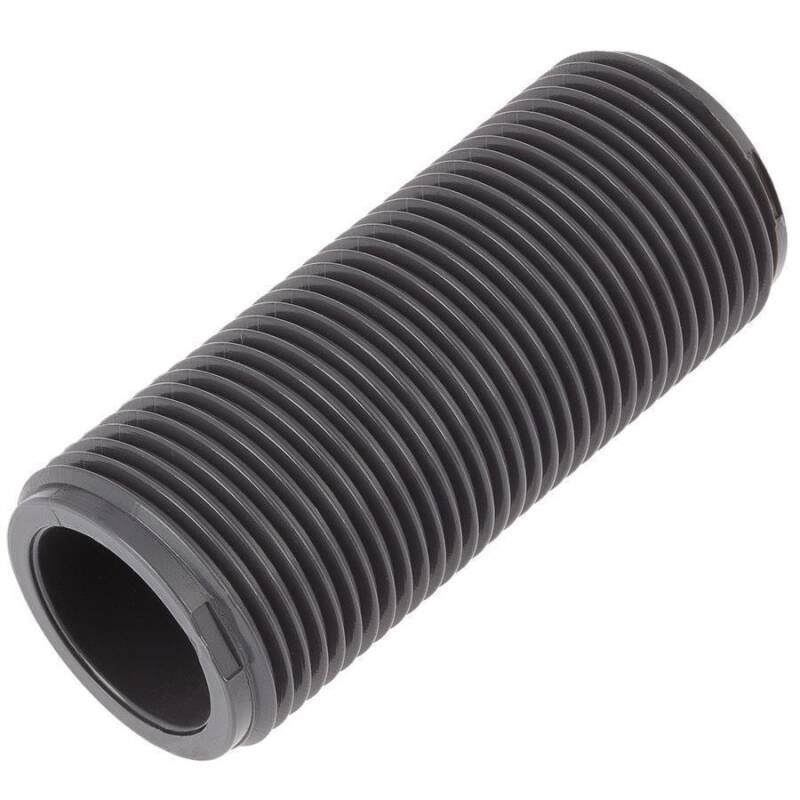

U-PVC male threaded bar

SKU: AF0100
Auswahl Steuerzone / Lieferland
from
2,06 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
H
p
Rp
PN
Price
Quantity
AF0100.000.020
1/2" x 60mm
60
14,5
1/2" (20,95mm)
16
2,06 €*
pc:
AF0100.000.025
3/4" x 60mm
60
18
3/4" (26,44mm)
16
2,14 €*
pc:
AF0100.000.032
1" x 80mm
80
23
1" (33,25mm)
16
2,48 €*
pc:
AF0100.000.040
1 1/4" x 80mm
80
31
1 1/4" (41,91mm)
16
3,47 €*
pc:
AF0100.000.050
1 1/2" x 80mm
80
37
1 1/2" (47,81mm)
16
3,75 €*
pc:
AF0100.000.063
2" x 100mm
100
47
2" (59,61mm)
16
4,32 €*
pc:
AF0100.000.075
2 1/2" x 120mm
120
65,5
2 1/2" (75,18mm)
16
7,00 €*
pc:
AF0100.000.090
3" x 150mm
150
76,5
3" (87,88mm)
16
8,09 €*
pc:
AF0100.000.110
4" x 150mm
150
99
4" (113,03mm)
16
9,12 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U Gewinderohr, Aussengewinde

Anschluss:
Aussengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
DOWNLOADRoHS Bestätigung HTC
DOWNLOADPVC-U technische Charakteristik
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
