All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

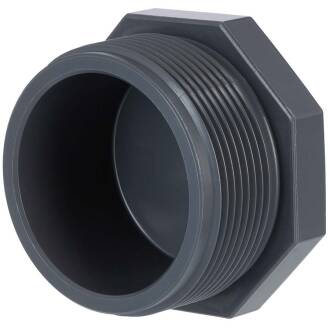

PVC-U End Cap Threaded Plug Male Thread
Connection:
Male thread
Thread:
BSP pipe thread G, non self-sealing, sealing with PTFE tape or similar.
Temperature:
up to 45°C constant, temporarily 60°C
Working pressure (PN):
max. 16 bar at 20°C with water up to 2 1/2", from 3" max. 10 bar
Material:
PVC-U
Colour:
Grey
DOWNLOADRoHS Certification HTC
DOWNLOAD Bonding PVC-U Pipes and Fittings
DOWNLOAD Thread designation – or why 1" is not 25.4 mm
DOWNLOAD Sealing and Connecting Plastic Threads
DOWNLOAD Chemical Resistance of Plastics
DOWNLOAD External Characteristics of Injection-Moulded Fittings
