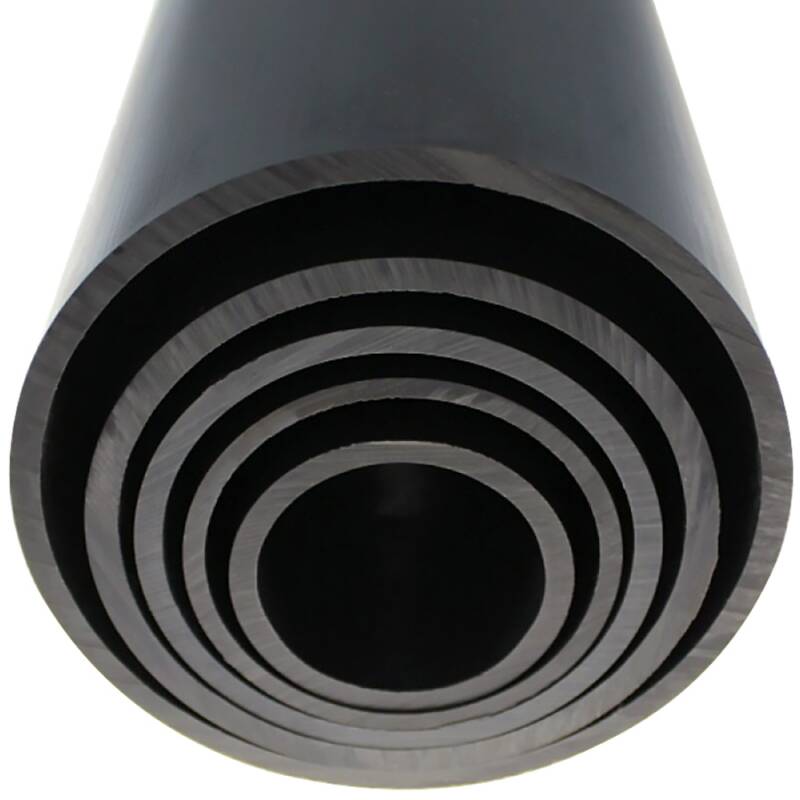

U-PVC pipe 125 x 4,8mm - PN 10

SKU: AR0125.P10
Auswahl Steuerzone / Lieferland
Choose the variation
Grey 125 x 4,8mm - PN10
from
13,92 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(13) { ["maximalmenge schlauch"]=> string(1) "0" ["dimension_0913_länge"]=> string(7) "1m ±1%" ["wichtiger_hinweis"]=> string(144) "

wichtiger Hinweis

Rohrzuschnitt 1m und 2m werden speziell für Ihren Auftrag produziert. Keine Rückgabe, kein Widerruf.

" ["tabellen_ansicht"]=> string(1) "1" ["dimension_0220_dn"]=> string(10) "max. 115,4" ["meta keywords"]=> string(20) "PVC-U Rohr_Druckrohr" ["dimension_0140_d"]=> string(11) "125" ["bild_abmessungen"]=> string(38) "/bilder/abmessungen/Rohr_Zeichnung.jpg" ["dimension_0760_w"]=> string(17) "mind. 4,8" ["dimension_0010_variante"]=> string(20) "1m Länge ohne Muffe" ["dimension_9899_en1452 (pn)"]=> string(10) "10" ["alternatives_icon"]=> string(49) "bilder/artikelicons/icon-rohr-grau-pn10-50x50.png" ["anbieterkennzeichnung_htc"]=> string(1) "1" }
View item details in PDF
How to measure a threaded fitting

wichtiger Hinweis

Rohrzuschnitt 1m und 2m werden speziell für Ihren Auftrag produziert. Keine Rückgabe, kein Widerruf.

  • Available immediately
   Variants

Item no.
Variation
D
DN
W
Length
EN1452 (PN)
Price
Quantity
AR0125.P10.001
1m Länge ohne Muffe
125
max. 115,4
mind. 4,8
1m ±1%
10
hat Überlänge
13,92 €*
Pipe:
AR0125.P10.002
2m Länge ohne Muffe
125
max. 115,4
mind. 4,8
2m ±1%
10
hat Überlänge
31,48 €*
Pipe:
AR0125.P10.006
6m Länge mit Muffe
125
max. 115,4
mind. 4,8
6m ±1%
10
89,96 €*
Pipe:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U Industrial Pipe Grey 125 x 4.8mm - PN 10 bar

Outer Diameter:
125mm
Wall Thickness:
see table
Temperature:
up to 45°C constant, short-term 60°C
Working Pressure:
see table (EN = EN 1452-2)
Material:
PVC-U
Color:
Grey

Shipping cost information Germany 1m pipes HTC Logo :
1 - 6 pipes shipping costs 7.90 EUR gross
7 - 12 pipes shipping costs 15.80 EUR gross
13 - 18 pipes shipping costs 23.70 EUR gross
19 - 24 pipes shipping costs 31.60 EUR gross
25 - 30 pipes shipping costs 39.50 EUR gross
31 - 36 pipes shipping costs 47.40 EUR gross
37 - 42 pipes shipping costs 55.30 EUR gross
43 - 48 pipes shipping costs 63.20 EUR gross
49 - 54 pipes shipping costs 71.10 EUR gross
55 - 60 pipes shipping costs 79.00 EUR gross

Shipping cost information Germany 2m pipes HTC Logo :
1 - 3 pipes shipping costs 9.90 EUR gross
4 - 6 pipes shipping costs 19.80 EUR gross
7 - 9 pipes shipping costs 29.70 EUR gross
10 - 12 pipes shipping costs 39.60 EUR gross
13 - 15 pipes shipping costs 49.50 EUR gross
16 - 18 pipes shipping costs 59.40 EUR gross
19 - 21 pipes shipping costs 69.30 EUR gross
22 - 24 pipes shipping costs 79.20 EUR gross
25 - 27 pipes shipping costs 89.10 EUR gross
28 - 30 pipes shipping costs 99.00 EUR gross

Note: Nominal pressure up to 90mm, ISO 4065 based on design coefficient C = 2.5. Nominal pressure from 110mm, ISO 4065 based on design coefficient C = 2.0.

  • Dimensions according to EN 1452-2
  • Delivery length +/- 1%
  • 1m length without socket
  • 2m length without socket
  • 6m length with formed socket
  • The unit DN results from the wall thickness and is to be understood according to DIN 8062 as nominal plus tolerance and not a usable dimension

Our quality – no compromises

  • Exclusively virgin material – no recycled granulate
  • LEAD FREE – free from lead or other heavy metals
  • Suitable and tested for drinking water applications
  • Top quality at a top price
DOWNLOAD RoHS confirmation HTC
DOWNLOAD Technical data sheet PVC-U pipe 125 x 4.8mm, PN 10
DOWNLOAD PVC-U pipe certificate B2 combustible materials
DOWNLOAD Bonding PVC-U pipes and fittings
DOWNLOAD PVC-U technical characteristics
DOWNLOAD Chemical resistance of plastics
