All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

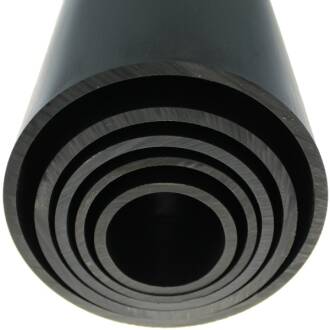

PVC-U Industrial Pipe Grey 200 x 4.9mm - PN 6 bar
Outer Diameter:
200mm
Wall Thickness:
see table
Temperature:
up to 45°C constant, short-term 60°C
Working Pressure:
see table (EN = EN 1452-2)
Material:
PVC-U
Color:
Grey
Shipping cost information Germany 1m pipes
:
up to 4 pipes shipping costs 7.90 EUR gross
5 - 8 pipes shipping costs 15.80 EUR gross
9 - 12 pipes shipping costs 23.70 EUR gross
13 - 16 pipes shipping costs 31.60 EUR gross
17 - 20 pipes shipping costs 39.50 EUR gross
21 - 24 pipes shipping costs 47.40 EUR gross
25 - 28 pipes shipping costs 55.30 EUR gross
29 - 32 pipes shipping costs 63.20 EUR gross
33 - 36 pipes shipping costs 71.10 EUR gross
37 - 40 pipes shipping costs 79.00 EUR gross
Shipping cost information Germany 2m pipes :
1 pipe shipping costs 7.90 EUR gross
2 pipes shipping costs 15.80 EUR gross
3 pipes shipping costs 23.70 EUR gross
4 pipes shipping costs 31.60 EUR gross
5 pipes shipping costs 39.50 EUR gross
6 pipes shipping costs 47.40 EUR gross
7 pipes shipping costs 55.30 EUR gross
8 pipes shipping costs 63.20 EUR gross
9 pipes shipping costs 71.10 EUR gross
10 pipes shipping costs 79.00 EUR gross
11 pipes shipping costs 86.90 EUR gross
12 pipes shipping costs 94.80 EUR gross
13 pipes shipping costs 102.70 EUR gross
14 pipes shipping costs 110.60 EUR gross
15 pipes shipping costs 118.50 EUR gross
Important: Nominal pressure up to 90mm, ISO 4065 based on design coefficient C = 2.5. Nominal pressure from 110mm, ISO 4065 based on design coefficient C = 2.0.
- Dimensions according to EN 1452-2
- Delivery length +/- 1%
- 1m length without socket
- 2m length without socket
- 6m length with molded socket
- The unit DN results from the wall thickness and is to be understood according to DIN 8062 as nominal plus tolerance and not a usable dimension
Our quality – no compromises
- Exclusively virgin material – no recycled granulate
- LEAD FREE – free from lead or other heavy metals
- Suitable and tested for drinking water applications
- Top quality at a top price
