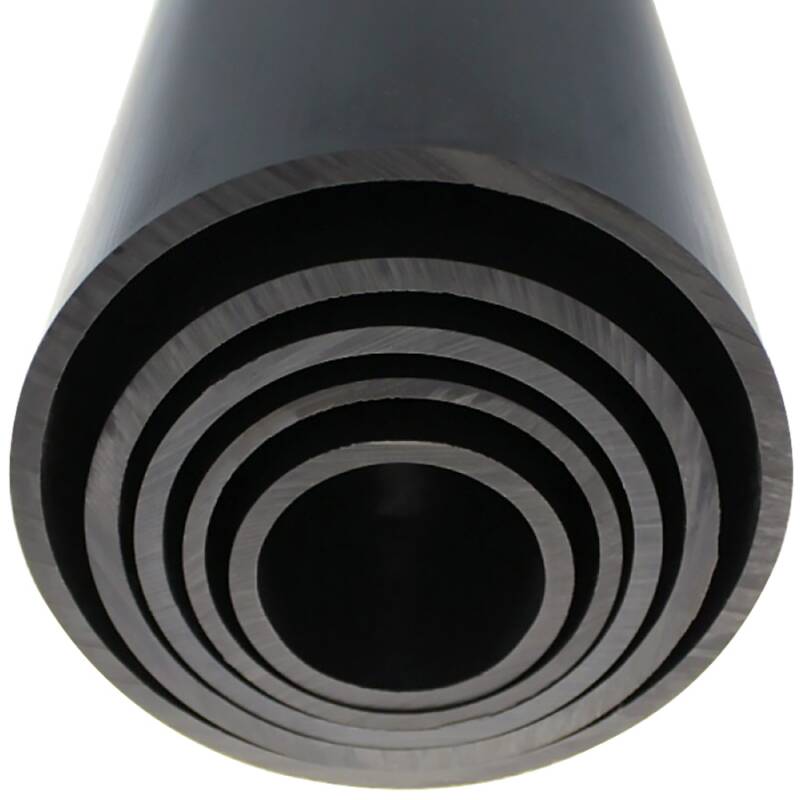

U-PVC pipe 50 x 3,7mm - PN 16
4,01 €

including 19% VAT., plus shipping

Item number: AR0050.P16

Choose the variation

Grey
50 x 3,7mm - PN16

wichtiger Hinweis

Rohrzuschnitt 1m und 2m werden speziell für Ihren Auftrag produziert. Keine Rückgabe, kein Widerruf.

Item no. Variation Price Quantity
AR0050.P16.001 1m Länge ohne Muffe 4,01 €*
AR0050.P16.002 2m Länge* 8,51 €*
Minimum order quantity: 6
AR0050.P16.005 5m Länge mit Muffe 20,03 €*

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U Rohr Industrierohr Grau 50 x 3,7mm -
PN
Pressure Nominal, englisch für Nenndruck, der Druck (in bar), für den genormte Rohrleitungsteile ausgelegt sind
16 bar

A-Ø:
50mm
Wandstärke:
siehe Tabelle
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck:
siehe Tabelle (EN 1452-2)
Material:
PVC-U
Farbe:
Grau
Einsatzbereich:
Pikto
Qualität Legende:
HTC-Indrustrie Qualitätslogo
Industriequalität: Druckleitungen für hochwertige Bewässerungssysteme, Marine, Chemie- und Textilindustrie.
Wichtig: Nenndruck bis 90mm, ISO 4065 basierend auf Auslegungskoeffizient C = 2,5. Nenndruck ab 110mm, ISO 4065 basierend auf Auslegungskoeffizient C = 2,0.
  • Abmessungen nach EN 1452-2
  • Lieferlänge +/- 1% (siehe Tabelle)
  • 1m Länge ohne Muffe
  • *2m Länge mit oder ohne angeformter Muffe - je nach Verfügbarkeit
  • 5m mit angeformter Muffe
  • Die Maßeinheit DN ergibt sich aus der Wandstärke und ist nach DIN 8062 als Soll plus Toleranz zu sehen und kein Nutzmaß

Unsere Qualität - keine Kompromisse

  • ausschließlich Reingranulat - kein Recyclinggranulat
  • LEAD FREE - frei von Blei oder andere Schwermetalle
  • Top Qualität zum top Preis
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD technisches Datenblatt PVC-U Rohr 50 x 3,7mm, PN 16
DOWNLOAD PVC-U Rohr Zertifikat B2 brennbare Baustoffe

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD PVC-U technische Charakteristik
DOWNLOAD chemische Beständigkeit von Kunststoffen
