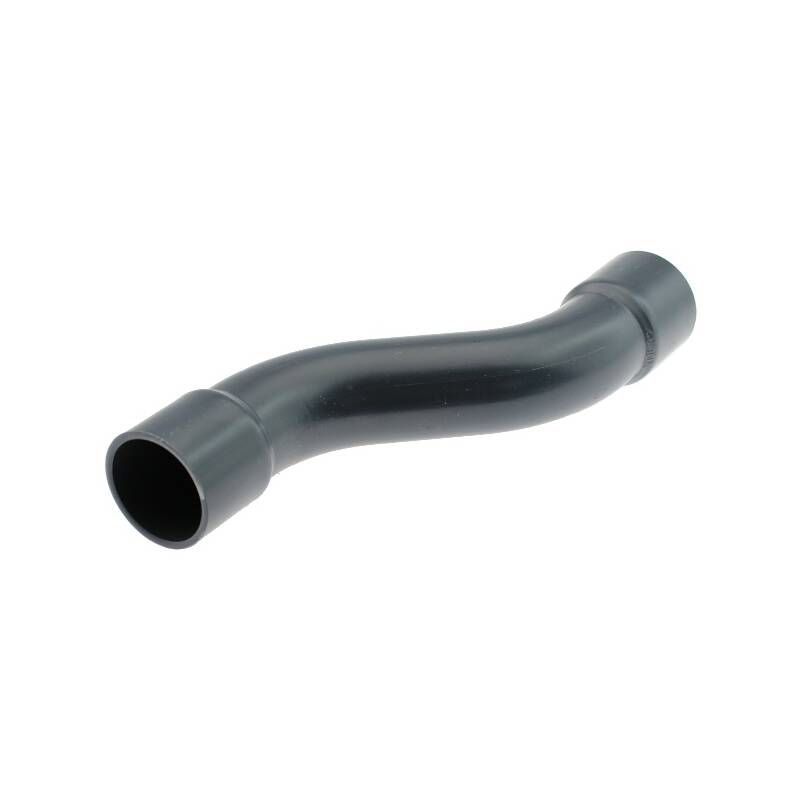

U-PVC solvent S bend f/f

from
6,46 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Item no.
Variation
B
D
Z1
Z2
Z3
Price
#custom.stp_headline#
Quantity
AF0411.000.032
32mm
22
32
35
57
60
6,46 €*
pc.:
AF0411.000.040
40mm
26
40
40
63
60
7,77 €*
pc.:
AF0411.000.050
50mm
31
50
50
55
85
10,22 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U S-Bogen 2fach Klebemuffe

Anschluss:
2fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C
Material:
PVC-U aus Rohr gefertigt
Farbe:
Grau

Wichtig: Im Gegensatz zu Spritzgussfittings werden diese Fittings aus Rohr thermisch verformt. Die Maße sowie die Ausführung können deshalb z.T. leicht abweichen.


DOWNLOADRoHS Bestätigung HTC

DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
