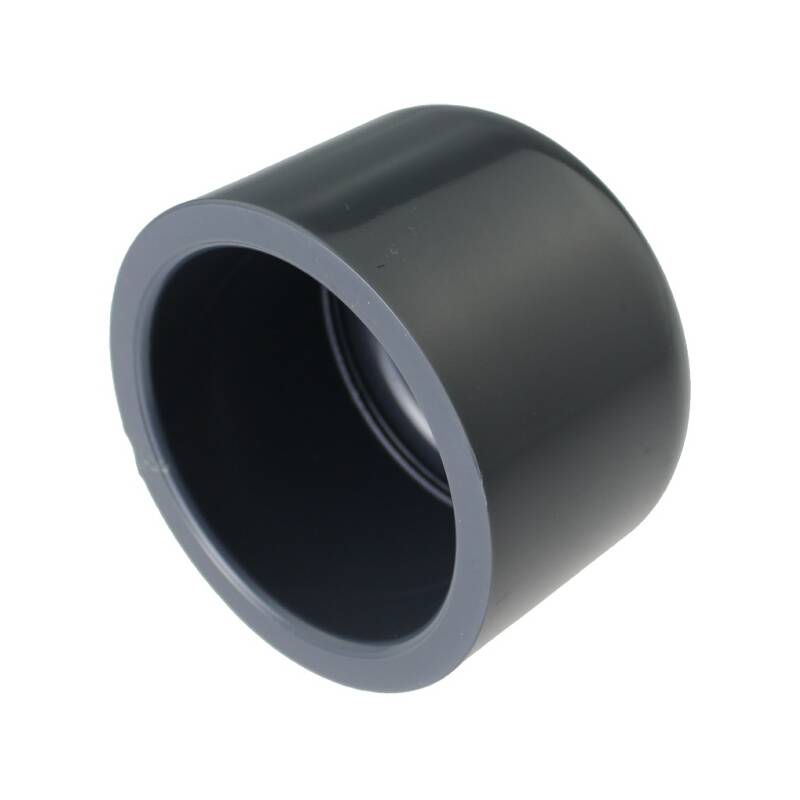

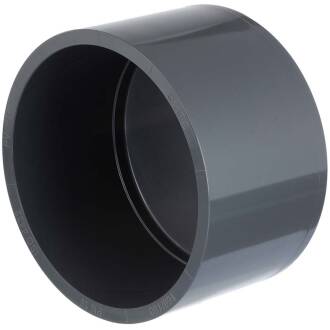

U-PVC solvent end cap

SKU: AF0815
Auswahl Steuerzone / Lieferland
from
0,19 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
D
D1
L
L1
PN
Price
Quantity
AF0815.000.012
12mm
12
16
17
13
16
0,26 €*
pc:
AF0815.000.016
16mm
16
20
20
14
16
0,19 €*
pc:
AF0815.000.020
20mm
20
26,8
22
17
16
0,24 €*
pc:
AF0815.000.040
40mm
40
50
36
26
16
0,60 €*
pc:
AF0815.000.050
50mm
50
60,5
43
32
16
0,75 €*
pc:
AF0815.000.075
75mm
75
87
65
44
16
2,08 €*
pc:
AF0815.000.090
90mm
90
110
75
51
16
2,96 €*
pc:
AF0815.000.110
110mm
110
131
91
61
16
5,08 €*
pc:
AF0815.000.160
160mm
160
186,5
126
86
10
18,14 €*
pc:
AF0815.000.200
200mm
200
226
150
106
10
31,26 €*
pc:
A-815-280
280mm
280
309
167
140
10
41,65 €*
pc:
A-815-315
315mm
315
352
226
164
10
47,60 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Fehlende Größen finden Sie in unserem Nachfolgemodell Endkappe, Klebekappe flach

PVC-U Endkappe, Klebekappe mit Klebemuffe

Anschluss:
Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser bzw. max. 10 bar ab 160mm
Material:
PVC-U
Farbe:
Grau
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
