Variants

Item no.
Variation
A
B
C
D
E
F
Weight
Price
Quantity
AF0412.032.025
32 x 32/25mm
32
25
22
19
55
58
40
1,70 €*
pc.:
AF0412.040.032
40 x 40/32mm
40
32
26
22
63
87
65
2,30 €*
pc.:
AF0412.050.040
50 x 50/40mm
50
40
31
26
88
97
130
2,74 €*
pc.:
AF0412.063.050
63 x 63/50mm
63
50
38
31
106
117
313
3,87 €*
pc.:
AF0412.075.063
75 x 75/63mm
75
63
45
38
125
140
308
8,07 €*
pc.:

incl. 19% VAT , plus shipping costs

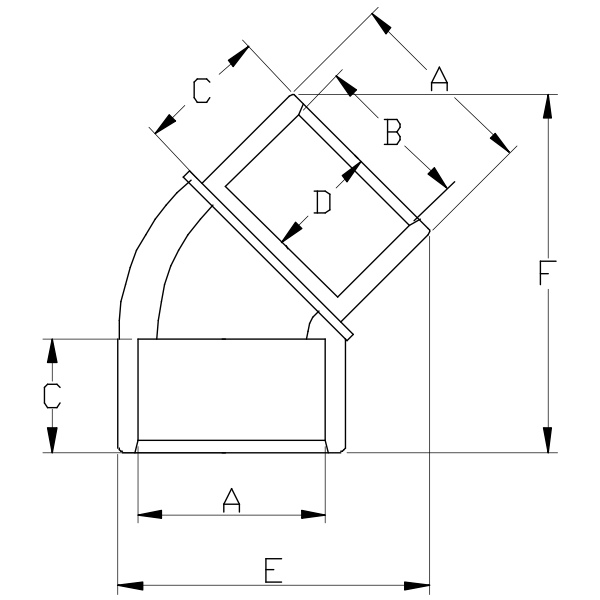

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

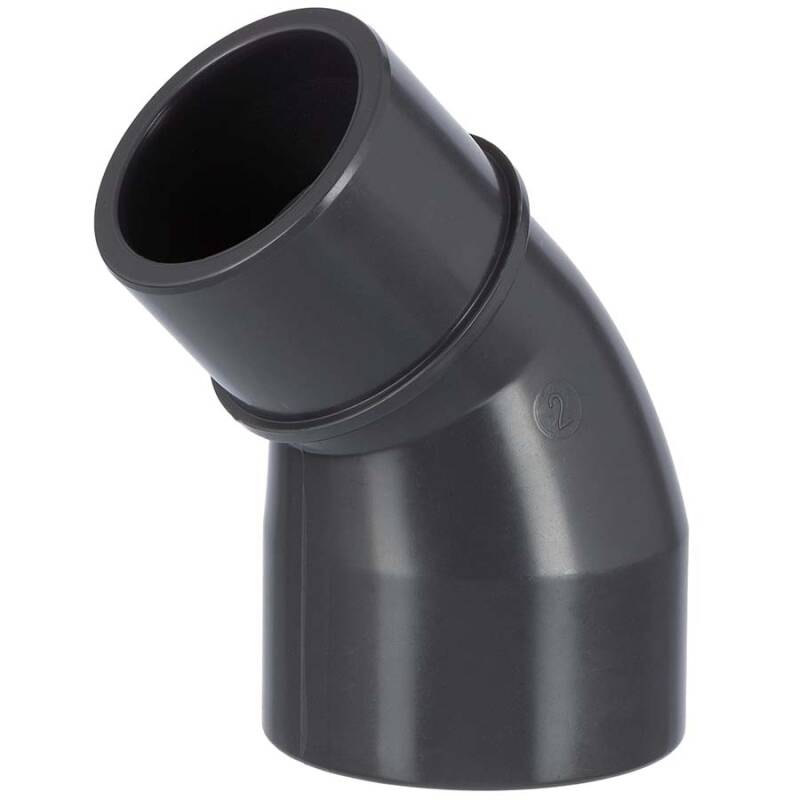

PVC-U Reduzierwinkel 45° Klebemuffe x Klebestutzen/-muffe

Anschluss:
Klebemuffe x Klebestutzen /-muffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C
Material:
PVC-U
Farbe:
Grau
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
