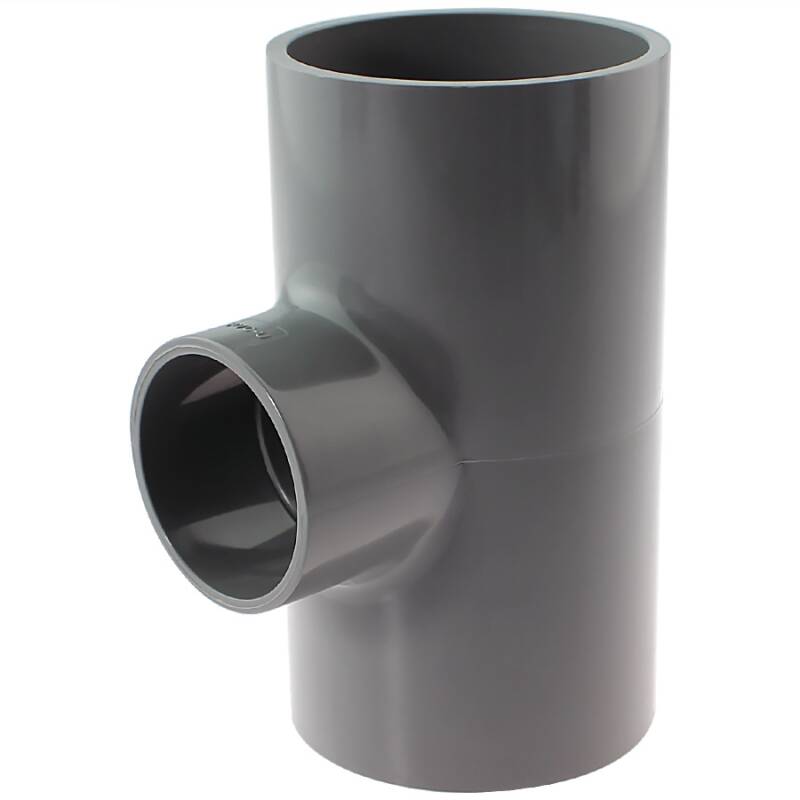

U-PVC solvent reducing tee 90° - ECO

SKU: AL0503
Auswahl Steuerzone / Lieferland
from
0,27 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
B
D
D1
d
D2
d1
d2
L
Weight
Price
Quantity
AL0503.025.020
25 x 20mm
46
25
30
20
18
25
16
62
22
0,27 €*
pc:
AL0503.032.020
32 x 20mm
53
32
37
20
22
25
15
69
33
0,46 €*
pc:
AL0503.032.025
32 x 25mm
55
32
37
25
22
30
18
74
36
0,48 €*
AL0503.040.020
40 x 20mm
62
40
46
20
26
25
16
77
51
0,98 €*
pc:
AL0503.040.025
40 x 25mm
63
40
46
25
26
30
17
80
56
0,98 €*
pc:
AL0503.040.032
40 x 32mm
68
40
46
32
26
38
21
89
64
1,00 €*
pc:
AL0503.050.020
50 x 20mm
71
50
57
20
31
25
14
85
79
1,02 €*
pc:
AL0503.050.025
50 x 25mm
75
50
58
25
33
30
17
92
93
1,02 €*
pc:
AL0503.050.032
50 x 32mm
78
50
58
32
32
37
21
99
103
1,02 €*
pc:
AL0503.050.040
50 x 40mm
86
50
57
40
34
47
28
108
119
1,02 €*
pc:
AL0503.063.020
63 x 20mm
82
63
69
20
36
24
14
97
96
1,70 €*
pc:
AL0503.063.025
63 x 25mm
87
63
70
25
37
31
17
105
129
1,70 €*
pc:
AL0503.063.032
63 x 32mm
92
63
71
32
37
38
20
112
148
1,70 €*
pc:
AL0503.063.040
63 x 40mm
94
63
70
40
37
46
24
120
151
1,70 €*
pc:
AL0503.063.050
63 x 50mm
103
63
71
50
36
71
30
131
190
1,83 €*
pc:
AL0503.075.032
75 x 32mm
104
75
83
32
43
39
21
127
205
2,63 €*
pc:
AL0503.075.040
75 x 40mm
109
75
84
40
44
46
24
136
253
2,63 €*
pc:
AL0503.075.050
75 x 50mm
116
75
84
50
47
57,5
29
153
295
3,32 €*
pc:
AL0503.090.050
90 x 50mm
129
90
101
50
48,5
57
25,5
161
408
4,86 €*
pc:
AL0503.090.063
90 x 63mm
131
90
97
63
52
70
38
194
322
4,86 €*
pc:
AL0503.090.075
90 x 75mm
139
90
97
75
53
97
52
195
337
4,86 €*
pc:
AL0503.110.050
110 x 50mm
149
110
123
50
59,5
56,5
29
181
631
6,32 €*
pc:
AL0503.110.063
110 x 63mm
153
110
120
63
61
70
39
234
628
6,32 €*
pc:
AL0503.110.075
110 x 75mm
159
110
120
75
61
82
44
234
652
6,32 €*
pc:
AL0503.110.090
110 x 90mm
169
110
120
90
61
98
61
234
667
6,32 €*
pc:
AL0503.160.050
160 x 50mm
203
160
175
50
140
57
26
336
2007
16,10 €*
pc:
AL0503.160.090
160 x 90mm
221
160
175
90
87
98
50
333
1973
17,02 €*
pc:
AL0503.160.110
160 x 110mm
230
160
175
110
86
120
62
333
2020
17,78 €*
pc:
AL0503.200.032
200 x 32mm
235
200
220
32
189
39
15
417
3895
35,88 €*
pc:
AL0503.200.050
200 x 50mm
244
200
220
50
180
57
25
417
3925
35,91 €*
pc:
AL0503.200.110
200 x 110mm
270
200
216
110
102
120
58
416
2460
41,29 €*
pc:
AL0503.200.160
200 x 160mm
298
200
219
160
107
176
86
415
4060
41,29 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

Größen, welche nicht angezeigt werden sind nicht mehr vorrätig

PVC-U T-Stück 90° reduziert ECO, 3fach Klebemuffe

Anschluss:
3fach Klebemuffe
Arbeitsdruck (PN):
max. PN 6 bar bei 20°C Medium Wasser
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Material:
PVC-U
Farbe:
Hellgrau
Einsatzbereich:
Pikto
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
