Variants

Item no.
Variation
D
D1
L
L1
Price
Quantity
AL0101.000.020
20mm
20
25
35
17
0,19 €*
pc:
AL0101.000.025
25mm
25
30
41
19
0,23 €*
pc:
AL0101.000.032
32mm
32
37
48
23
0,30 €*
pc:
AL0101.000.040
40mm
40
47
56
27
0,43 €*
pc:
AL0101.000.050
50mm
50
56,5
67
32
0,56 €*
pc:
AL0101.000.063
63mm
63
70
81
39
0,83 €*
pc:
AL0101.000.075
75mm
75
82
92
46
1,55 €*
pc:
AL0101.000.090
90mm
90
100
107
51
2,61 €*
pc:
AL0101.000.110
110mm
110
120
129
61
4,15 €*
pc:
AL0101.000.160
160mm
160
173
157
75
15,40 €*
pc:
AL0101.000.200
200mm
200
215
208
102
29,46 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

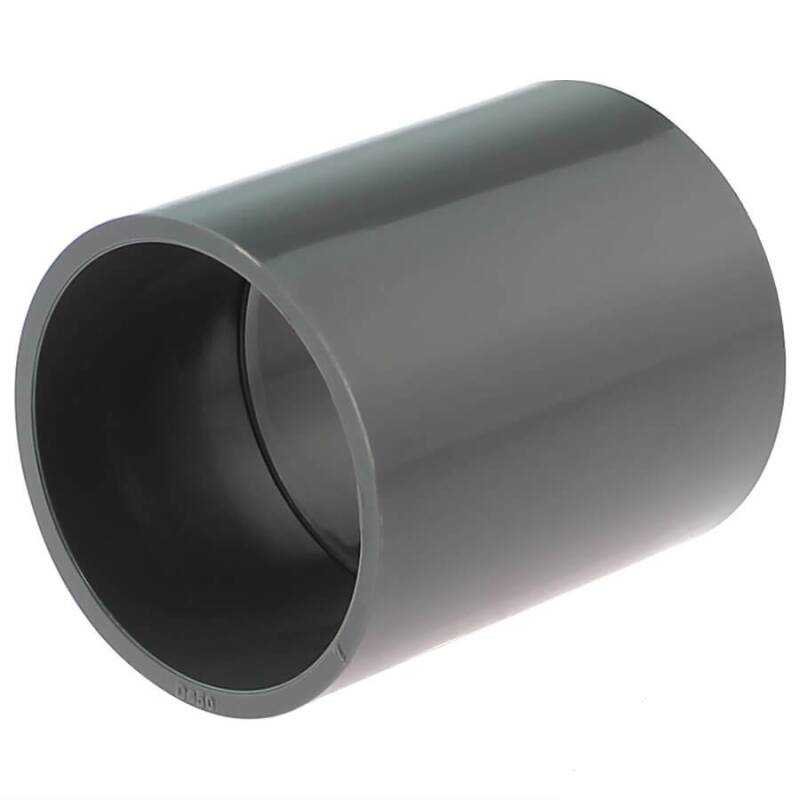

PVC-U Socket



 Connection:       solvent socket x solvent socket
 Temperature:  up to 45°C constant, short time 60°C
 Working pressure (PN):  max. 16 bar till 20°C
 Material:  PVC-U
 Color:  grey
 Application:


DOWNLOAD PVC-U technische Charakteristik

DOWNLOAD Kleben von PVC-U Rohren und -Fittings

DOWNLOAD Die Gewindekennung - oder warum 1" eben keine 25,4mm sind

DOWNLOAD Chemische Beständigkeit von Kunststoffen

DOWNLOAD Äußere Merkmale von Spritzgussfittings

DOWNLOAD RoSH Bestätigung - Coraplax CH PVC-U Fittings und Armaturen

DOWNLOAD Unbedenklichkeit Kontakt mit Trinkwasser und Nahrung - Coraplax PVC-U Fittings
