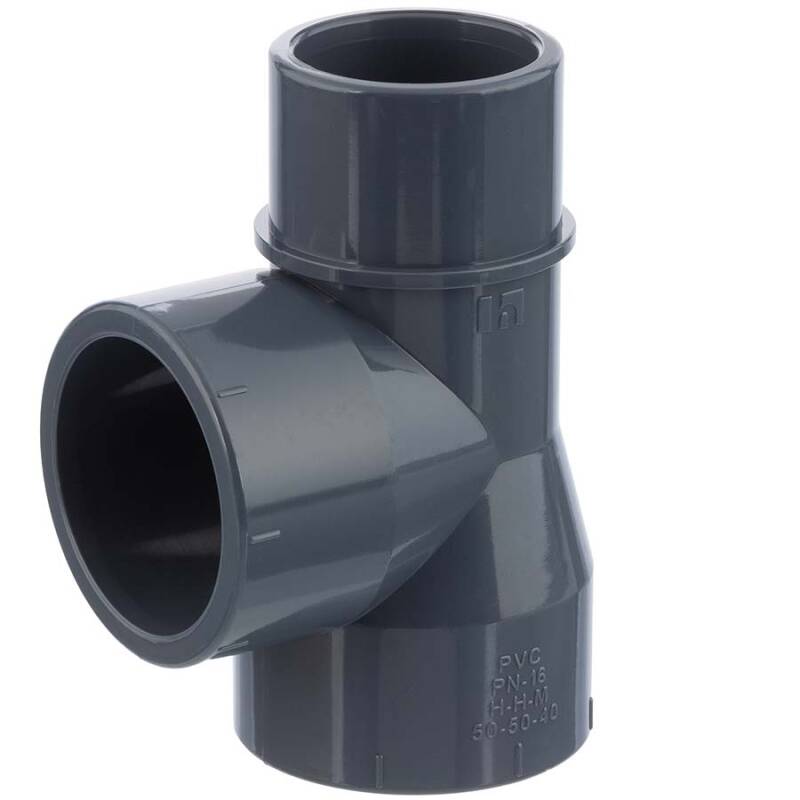

U-PVC solvent tee 90° with one male/female socket

SKU: AF0519
Auswahl Steuerzone / Lieferland
from
1,77 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
A
a
B
C
D
E
F
Weight
Price
Quantity
AF0519.032.025
32 x 32 x 25/32
32
32
25
22
19
85
59
62
1,77 €*
pc.:
AF0519.040.032
40 x 40 x 32/40
40
40
32
26
22
106
74
102
2,65 €*
pc.:
AF0519.050.040
50 x 50 x 40/50
50
50
40
31
26
125
88
175
3,57 €*
pc.:
AF0519.063.050
63 x 63 x 50/63
63
63
50
38
31
154
104
256
4,86 €*
pc.:
AF0519.075.063
75 x 75 x 63/75
75
75
63
45
38
180
130
460
9,91 €*
pc.:
AF0519.110.090
110 x 110 x 90/110
110
110
110
61
51
250
183
1478
25,92 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PVC-U T-Stück 90°, 2fach Klebemuffe x Klebestutzen/-muffe

Ermöglicht Ihnen das Anbinden von Fittings ohne Rohrzwischenstück

Anschluss:
2fach Klebemuffe x Klebestutzen/-muffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
DOWNLOAD RoHS Konformitätserklärung - HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
