PVC-U Tee 90°, Female Socket x Female Thread

SKU: AF0504
Auswahl Steuerzone / Lieferland
from
1,09 €
incl. 19% VAT , plus shipping costs
  • Available immediately
array(18) { ["bild_abmessungen"]=> string(40) "/bilder/abmessungen/AF0504_Zeichnung.jpg" ["meta keywords"]=> string(27) "PVC-U T-Stück_Innengewinde" ["tabellen_ansicht"]=> string(1) "1" ["dimension_0010_variante"]=> string(0) "" ["dimension_0140_d"]=> string(8) "" ["anbieterkennzeichnung_htc"]=> string(1) "1" ["dimension_0288_g"]=> string(8) "" ["dimension_0400_l"]=> string(0) "" ["dimension_0420_l1"]=> string(0) "" ["dimension_0450_l2"]=> string(0) "" ["dimension_0141_d1"]=> string(0) "" ["dimension_0144_d2"]=> string(0) "" ["dimension_0060_b"]=> string(0) "" ["break_after"]=> string(1) "1" ["break_after_color"]=> string(7) "#b1b1b1" ["break_after_thickness"]=> string(3) "2px" ["hat_3d_bilder"]=> string(1) "1" ["gpsr_manufacturer_name"]=> string(5) "HTC©" }
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
B
D
D1
D2
G
L
L1
L2
Price
Quantity
AF0504.016.016
16mm x 3/8"
---
16
22
22
3/8" (16,66mm)
46
14
13
1,09 €*
pc:
In stock: 156
delivery status: 1 - 4 working days
AF0504.020.020
20mm x 1/2"
31,5
20
29
29
1/2" (20,96mm)
54
16
15,5
1,15 €*
pc:
In stock: 1153
delivery status: 1 - 4 working days
AF0504.025.025
25mm x 3/4"
---
25
32,5
32,5
3/4" (26,44mm)
66,5
20
18,5
1,31 €*
pc:
In stock: 25
delivery status: 1 - 4 working days
AF0504.032.032
32mm x 1"
46,5
32
43
44
1" (33,25mm)
94
22
20
1,59 €*
pc:
In stock: 1022
delivery status: 1 - 4 working days
AF0504.040.040
40mm x 1 1/4"
---
40
50
50
1 1/4" (41,91mm)
99,5
28
22
2,40 €*
pc:
In stock: 159
delivery status: 1 - 4 working days
AF0504.050.050
50mm x 1 1/2"
62
50
60,5
60,5
1 1/2" (47,81mm)
120
31,5
23,5
3,78 €*
pc:
In stock: 444
delivery status: 1 - 4 working days
AF0504.063.063
63mm x 2"
---
63
75
74,5
2" (59,61mm)
142
38
34
6,53 €*
pc:
In stock: 139
delivery status: 1 - 4 working days
AF0504.075.075
75mm x 2 1/2"
---
75
89
89
2 1/2" (75,18mm)
166
44
37
9,33 €*
pc:
In stock: 5
delivery status: 1 - 4 working days
AF0504.110.110
110mm x 4"
---
110
129
128
4" (113,03mm)
236
62
46,5
14,57 €*
pc:
In stock: 25
delivery status: 1 - 4 working days

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

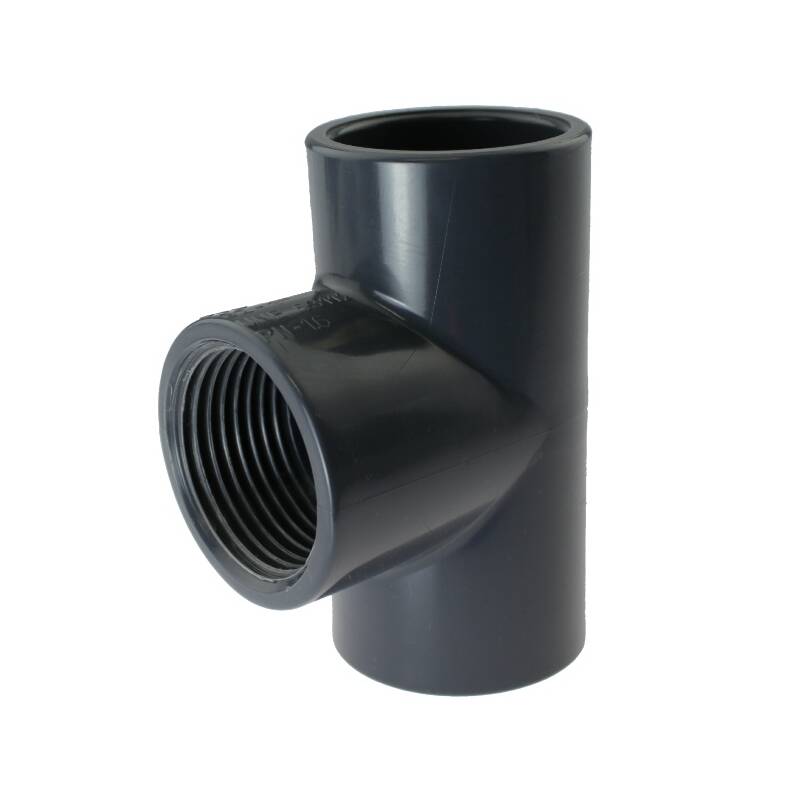

PVC-U Tee 90°, Female Socket x Female Thread

Connection:
Two Female Sockets x Female Thread
Thread Connection:
BSP pipe thread G, not self-sealing, sealing with Teflon tape or similar
Temperature:
up to 45°C constant, temporarily up to 60°C
Operating pressure (PN):
max. 10 bar at 20°C
Material:
PVC-U
Color:
Grey
DOWNLOAD RoHS declaration of conformity - HTC
DOWNLOAD Bonding of PVC-U pipes and fittings
DOWNLOAD The thread designation – or why 1" is not exactly 25.4 mm
DOWNLOAD Sealing and connecting plastic threads
DOWNLOAD Chemical resistance of plastics
DOWNLOAD External characteristics of injection-moulded fittings
