Description

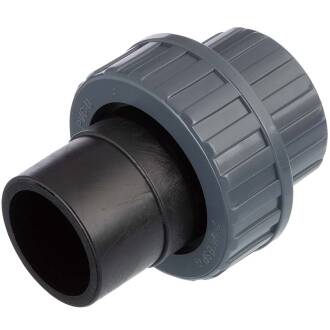

PVC-U Verschraubung, Klebemuffe x Schweißstutzen PE100
Anschluss:
Klebemuffe x Schweißstutzen PE100
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
Dichtung O-Ring:
NBR
Material:
PVC-U - Einlegeschweißstutzen PE100
Farbe:
Grau, Stutzen: Schwarz
Einsatzbereich:
Ersatzteile Verschraubung AF0616
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
