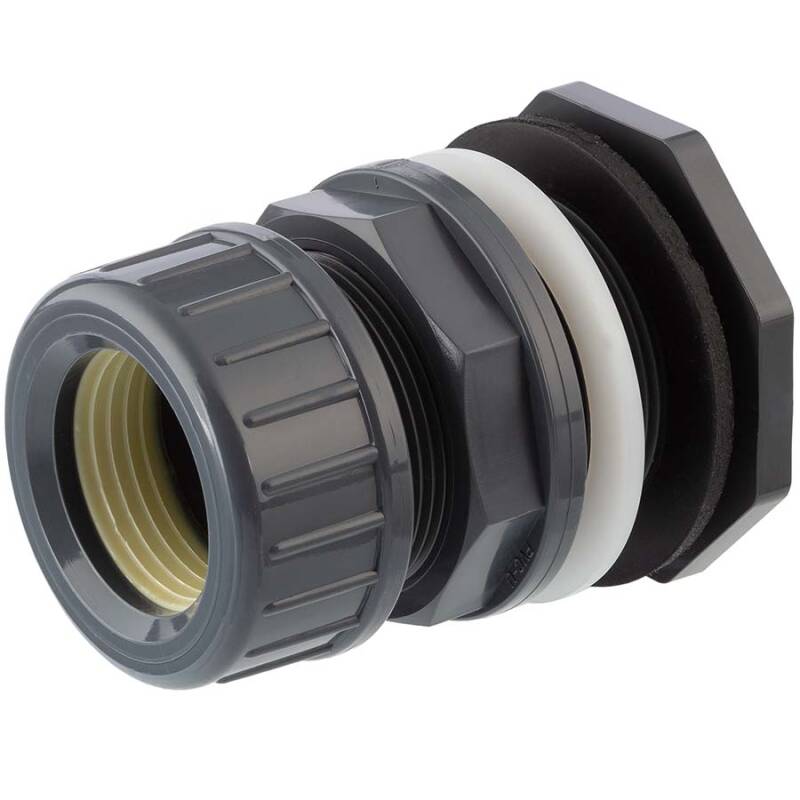

U-PVC table duct with clamping nut

SKU: AF0822
Auswahl Steuerzone / Lieferland
from
10,31 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
Das Rohr kann komplett durch die Kupplung geschoben werden. Immer von der - siehe Bild - linken Seite einschieben, ansonsten besteht die Gefahr der Deformierung der weißen Quetschhülse!
  • Available immediately
Variants

Item no.
Variation
D
d1
d3
S
Z1
Z2
min. hole
Price
Quantity
AF0822.000.020
20mm Klemm x 3/4"
56
20
3/4" (26,44mm)
32
8
0-25
26,5
10,31 €*
pc:
AF0822.000.025
25mm Klemm x 1"
60
25
1" (33,25mm)
40
10
0-25
33,5
11,14 €*
pc:
AF0822.000.032
32mm Klemm x 1 1/4"
66
32
1 1/4" (41,91mm)
55
7
0-25
42
11,45 €*
pc:
AF0822.000.040
40mm Klemm x 1 3/4"
78
40
1 3/4"
74
7
0-25
53,5
12,76 €*
pc:
AF0822.000.050
50mm Klemm x 2"
84
50
2" (59,61mm)
78
9
0-30
60,5
25,16 €*
pc:
AF0822.000.063
63mm Klemm x 2 1/2"
90
63
2 1/2" (75,18mm)
100
9
0-30
75
26,89 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

PVC-U Quetschverbindung/Durchführkupplung

Anschluss:
Quetschverbindung/Aussengewinde
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C
Material:
PVC-U
Farbe:
Grau
Dichtung:
inklusive Flachdichtung EPDM und Gleitring PP
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
