Upper cap with ventilation for IBC container

SKU: IB0111
Auswahl Steuerzone / Lieferland
from
9,47 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
B
D
DN
G
H
H1
Price
Quantity
Upper cap with ventilation for IBC container
IB0111.150.000
S165*7 | DN150 Entlüftungskappe
187
32
DN 150 | ~ 163mm
1" (33,25mm)
38
9,47 €*
pc.:
Upper cap with ventilation for IBC container
IB0111.150.407
S165*7|DN150 Entlüftungskappe, Winkel
187
32
DN 150 | ~ 163mm
1" (33,25mm)
38
14,58 €*
pc.:
Upper cap with ventilation for IBC container
IB0111.150.504
S165*7|DN150 Entlüftungskappe, T-Stück
187
32
DN 150 | ~ 163mm
1" (33,25mm)
38
14,84 €*
pc.:
Upper cap with ventilation for IBC container
IB0111.225.000
S245*6|DN 225 Entlüftungskappe
265
32
DN 225 | ~ 242mm
1" (33,25mm)
41
14,84 €*
pc.:
Upper cap with ventilation for IBC container
IB0111.225.407
S245*6|DN225 Entlüftungskappe, Winkel
265
32
DN 225 | ~ 242mm
1" (33,25mm)
41
19,47 €*
pc.:
Upper cap with ventilation for IBC container
IB0111.225.504
S245*6|DN 225 Entlüftungskappe, T-Stück
265
32
DN 225 | ~ 242mm
1" (33,25mm)
41
20,22 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

IBC container screw cap with vent for rainwater filling

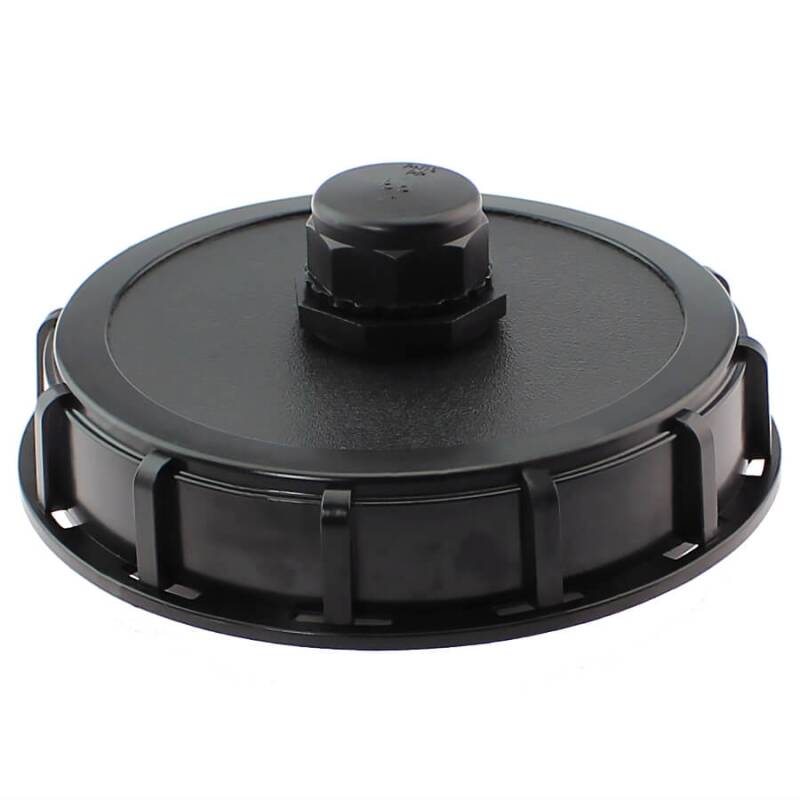

Screw lid with venting:
The opening of the lid is secured with a screw cap, which is not screwed on completely. The possibility of "pulling air" allows air to escape during filling and air to flow in when water is withdrawn.

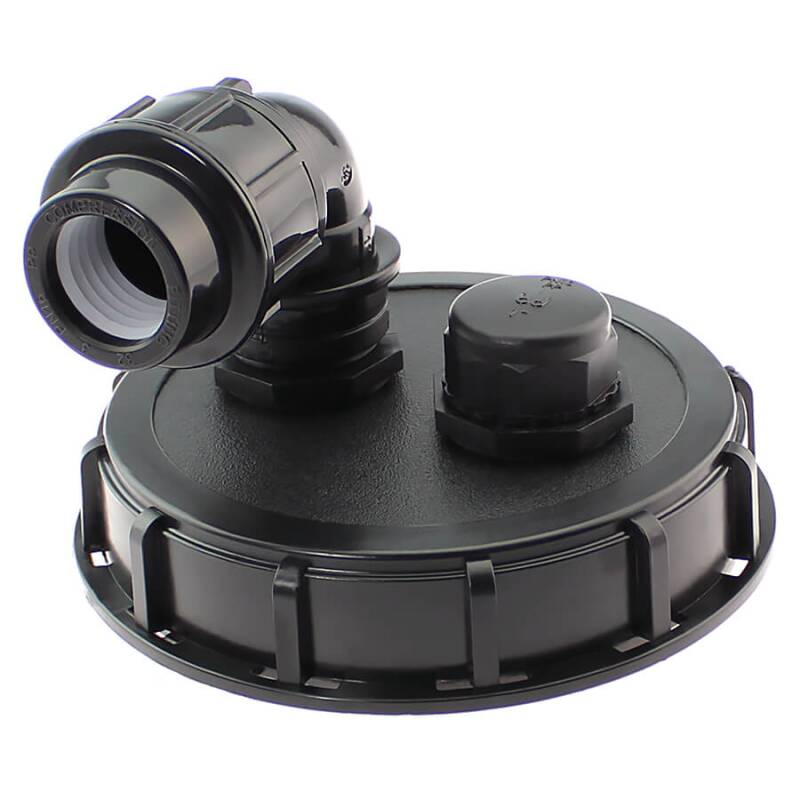

Screw cap with vent and PE pipe connection angle 32mm:
This variant also has a clamp connection in angle form for PE pipe 32mm for supply line or connection via the lid of the IBC container.

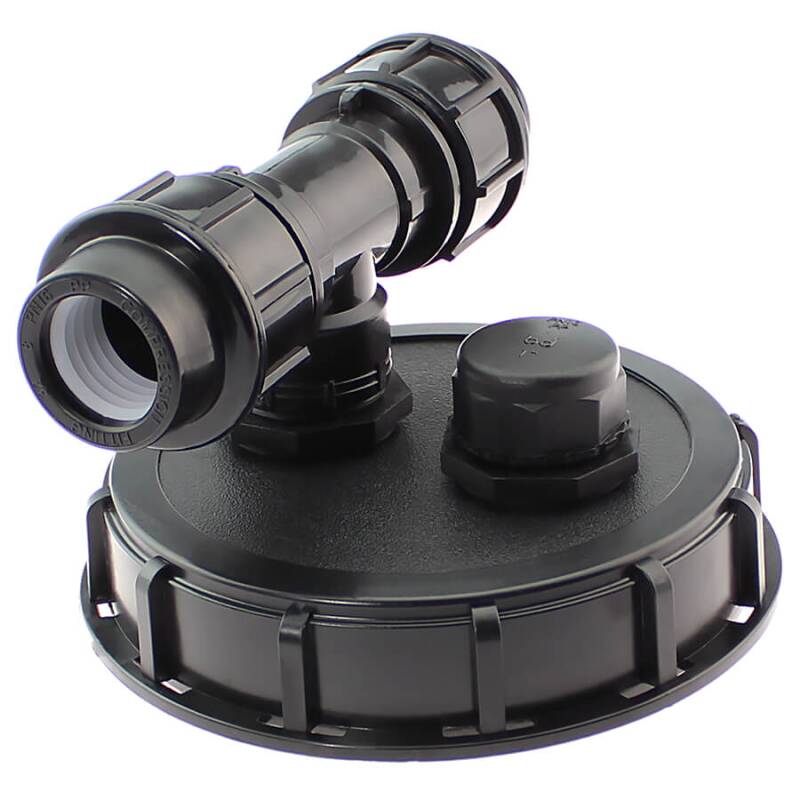

Screw cap with vent and PE pipe connection T-piece 32mm:
This variant also has a T-shaped clamp connection for PE pipe 32mm for supply line or connection via the lid of the IBC container.

Connection:
See variant
Seal:
TPE-V (thermoplastic elastomer)
Material:
HDPE (hard polyethylene)
Color:
Black
DOWNLOADRoHS confirmation HTC
DOWNLOAD the thread identification - or why 1" is not 25.4mm
DOWNLOADPP polypropylene temperature/pressure diagram
DOWNLOADchemical resistance of plastics
