All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description
IBC container screw cap with vent for rainwater filling
Screw lid with venting:
The opening of the lid is secured with a screw cap, which is not screwed on completely. The possibility of "pulling air" allows air to escape during filling and air to flow in when water is withdrawn.
Screw cap with vent and PE pipe connection angle 32mm:
This variant also has a clamp connection in angle form for PE pipe 32mm for supply line or connection via the lid of the IBC container.

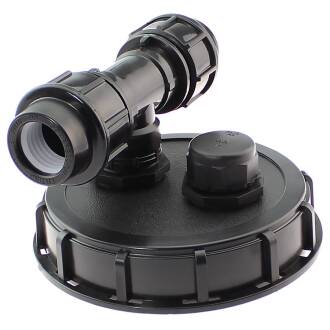

Screw cap with vent and PE pipe connection T-piece 32mm:
This variant also has a T-shaped clamp connection for PE pipe 32mm for supply line or connection via the lid of the IBC container.
Connection:
See variant
Seal:
TPE-V (thermoplastic elastomer)
Material:
HDPE (hard polyethylene)
Color:
Black
