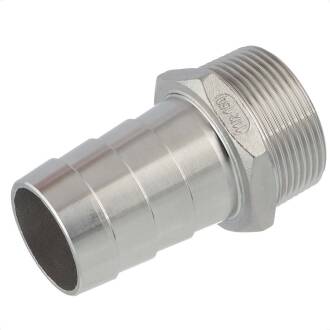

A4 ss male threaded hose tail

SKU: EF0802
Auswahl Steuerzone / Lieferland
from
0,82 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF

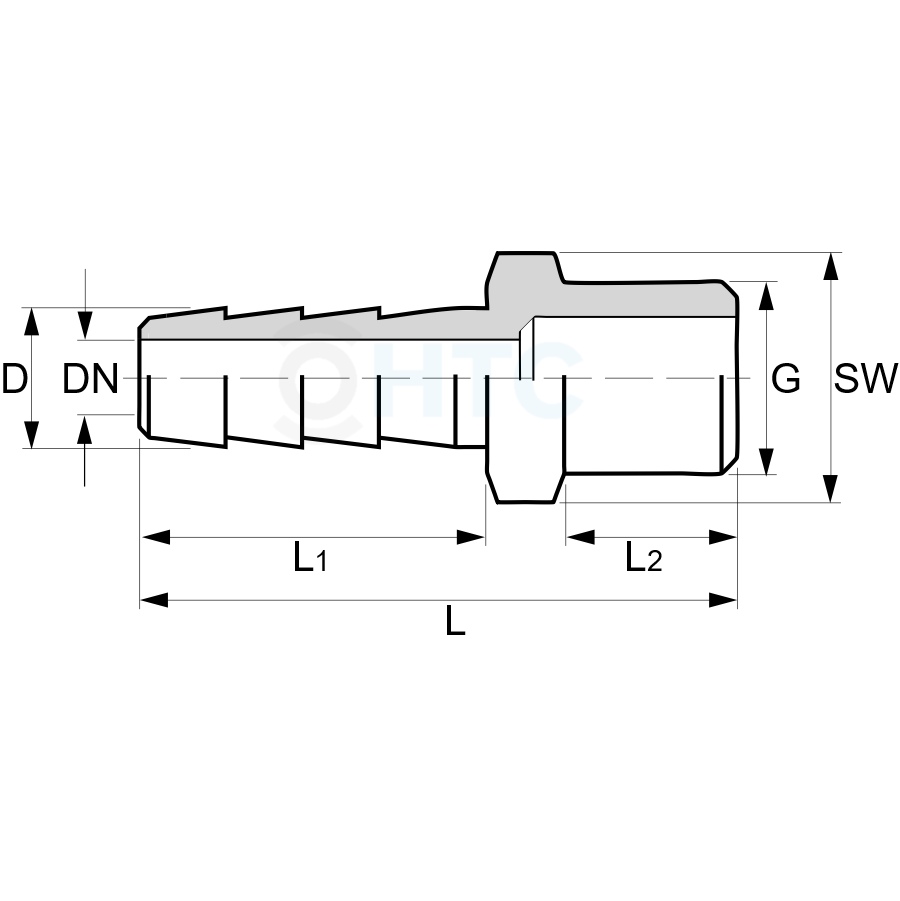

How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
D
DN
G
L
L1
L2
SW
Price
Quantity
A4 ss male threaded hose tail 1/8" x 6mm
EF0802.009.006
1/8" x 6mm
6  (6/5)
3
R 1/8" (9,73mm)
33
18
8
11
0,82 €*
pc.:
Stainless steel V4A hose nozzle, external thread 1/8" x 8mm
EF0802.009.008
1/8" x 8mm
8  (8/6,5)
5
R 1/8" (9,73mm)
30,5
17
8
11
0,89 €*
pc.:
A4 ss male threaded hose tail 1/8" x 9mm
EF0802.009.009
1/8" x 9mm
9  (9/7,5)
4,5
R 1/8" (9,73mm)
33
18
8
11
0,96 €*
pc.:
A4 ss male threaded hose tail 1/4" x 6mm
EF0802.012.006
1/4" x 6mm
6  (6/5)
3
R 1/4" (13,16mm)
44
25
10
17
1,25 €*
pc.:
A4 ss male threaded hose tail 1/4" x 8mm
EF0802.012.008
1/4" x 8mm
8  (9/7,5)
4,6
R 1/4" (13,16mm)
43
28
8
15
1,25 €*
pc.:
A4 ss male threaded hose tail 1/4" x 9mm
EF0802.012.009
1/4" x 9mm
9  (9/7,5)
5
R 1/4" (13,16mm)
46
27
8
17
1,25 €*
pc.:
A4 ss male threaded hose tail 1/4" x 10mm
EF0802.012.010
1/4" x 10mm
10  (10/8,5)
6
R 1/4" (13,16mm)
46
27
8
17
1,37 €*
pc.:
A4 ss male threaded hose tail 1/4" x 13mm
EF0802.012.013
1/4" x 13mm
13  (13/11,5)
9
R 1/4" (13,16mm)
43
27
8,5
17
1,37 €*
pc.:
A4 ss male threaded hose tail 3/8" x 8mm
EF0802.016.008
3/8" x 8mm
8  (8/6,5)
4
R 3/8" (16,66mm)
48
28
11
19
1,86 €*
pc.:
A4 ss male threaded hose tail 3/8" x 9mm
EF0802.016.009
3/8" x 9mm
9  (9/7,5)
4,7
R 3/8" (16,66mm)
52
32
10
19
1,86 €*
pc.:
A4 ss male threaded hose tail 3/8" x 10mm
EF0802.016.010
3/8" x 10mm
10  (10/8,5)
4,8
R 3/8" (16,66mm)
52
32
10
19
1,86 €*
pc.:
A4 ss male threaded hose tail 3/8" x 13mm
EF0802.016.013
3/8" x 13mm
13  (13/11,5)
6
R 3/8" (16,66mm)
51,5
31
11
18
1,86 €*
pc.:
Stainless steel V4A hose nozzle, external thread 3/8" x 16mm
EF0802.016.016
3/8" x 16mm
16  (16/14,5)
9,2
R 3/8" (16,66mm)
52
32
11
19
1,86 €*
pc.:
A4 ss male threaded hose tail 1/2" x 9mm
EF0802.020.009
1/2" x 9mm
9  (9/7,5)
5
R 1/2" (20,95mm)
55
32
13
22
2,74 €*
pc.:
A4 ss male threaded hose tail 1/2" x 13mm
EF0802.020.013
1/2" x 13mm
13  (13/11,5)
7,7
R 1/2" (20,95mm)
63,5
40
13
22
2,74 €*
pc.:
A4 ss male threaded hose tail 1/2" x 16mm
EF0802.020.016
1/2" x 16mm
16  (16/15)
12,5
R 1/2" (20,95mm)
49
28
13
22
2,74 €*
pc.:
A4 ss male threaded hose tail 1/2" x 19mm
EF0802.020.019
1/2" x 19mm
19  (19/17,5)
14,8
R 1/2" (20,95mm)
60
37
13
22
2,82 €*
pc.:
A4 ss male threaded hose tail 1/2" x 20mm
EF0802.020.020
1/2" x 20mm
20  (20/18,5)
15
R 1/2" (20,95mm)
60
37
13
22
3,39 €*
pc.:
A4 ss male threaded hose tail 3/4" x 13mm
EF0802.025.013
3/4" x 13mm
13  (13/11,5)
9
R 3/4" (26,44mm)
64
37
16
29
4,11 €*
pc.:
A4 ss male threaded hose tail 3/4" x 16mm
EF0802.025.016
3/4" x 16mm
16  (16/14,5)
12
R 3/4" (26,44mm)
66
40
15
29
4,11 €*
pc.:
A4 ss male threaded hose tail 3/4" x 19mm
EF0802.025.019
3/4" x 19mm
19  (19/17,5)
15
R 3/4" (26,44mm)
66,5
44
14
28
4,28 €*
pc.:
A4 ss male threaded hose tail 3/4" x 20mm
EF0802.025.020
3/4" x 20mm
20  (20/18,5)
15
R 3/4" (26,44mm)
66,5
44
13
28
4,53 €*
pc.:
A4 ss male threaded hose tail 3/4" x 25mm
EF0802.025.025
3/4" x 25mm
25  (25/23,5)
20
R 3/4" (26,44mm)
70
44
15
29
4,53 €*
pc.:
A4 ss male threaded hose tail 1" x 19mm
EF0802.032.019
1" x 19mm
19  (19/17,5)
15,5
R 1" (33,25mm)
75,5
47
17,5
36
6,75 €*
pc.:
A4 ss male threaded hose tail 1" x 20mm
EF0802.032.020
1" x 20mm
20  (20/18)
16
R 1" (33,25mm)
75
47
17
36
6,75 €*
pc.:
A4 ss male threaded hose tail 1" x 25mm
EF0802.032.025
1" x 25mm
25  (25/23)
20
R 1" (33,25mm)
75
46
16
36
6,78 €*
pc.:
A4 ss male threaded hose tail 1" x 32mm
EF0802.032.032
1" x 32mm
32  (32/30)
25
R 1" (33,25mm)
81
52
21
41
6,93 €*
pc.:
A4 ss male threaded hose tail 1 1/4" x 25mm
EF0802.040.025
1 1/4" x 25mm
25  (25/23,5)
20
R 1 1/4" (41,91mm)
70
42
19
44
11,10 €*
pc.:
A4 ss male threaded hose tail 1 1/4" x 32mm
EF0802.040.032
1 1/4" x 32mm
32  (33/31)
27,5
R 1 1/4" (41,91mm)
80
52
17
44
11,17 €*
pc.:
A4 ss male threaded hose tail 1 1/4" x 38mm
EF0802.040.038
1 1/4" x 38mm
38  (38/35,5)
32
R 1 1/4" (41,91mm)
80,5
49
19
44
11,21 €*
pc.:
A4 ss male threaded hose tail 1 1/4" x 40mm
EF0802.040.040
1 1/4" x 40mm
40  (40/37,5)
34
R 1 1/4" (41,91mm)
80,5
48,5
20
44
11,21 €*
pc.:
A4 ss male threaded hose tail 1 1/2" x 32mm
EF0802.050.032
1 1/2" x 32mm
32  (32/30)
25
R 1 1/2" (47,81mm)
87
54
19
51
11,75 €*
pc.:
A4 ss male threaded hose tail 1 1/2" x 38mm
EF0802.050.038
1 1/2" x 38mm
38  (38/36)
33
R 1 1/2" (47,91mm)
86
55
17
50
11,75 €*
pc.:
A4 ss male threaded hose tail 1 1/2" x 40mm
EF0802.050.040
1 1/2" x 40mm
40  (40/38)
33
R 1 1/2" (47,81mm)
86
55
19
50
11,78 €*
A4 ss male threaded hose tail 1 1/2" x 51mm
EF0802.050.050
1 1/2" x 51mm
51  (51/49)
40
R 1 1/2" (47,81mm)
83
55
19
53
11,89 €*
pc.:
A4 ss male threaded hose tail 2" x 51mm
EF0802.063.050
2" x 51mm
51  (52/50)
45
R 2" (59,61mm)
92,5
59
22
62
21,31 €*
pc.:
A4 ss male threaded hose tail 2" x 60mm
EF0802.063.060
2" x 60mm
60  (60/58)
51
R 2" (59,61mm)
94
59
23
62
21,49 €*
pc.:
A4 ss male threaded hose tail 2" x 63mm
EF0802.063.063
2" x 63mm
63  (63/61)
50
R 2" (59,61mm)
92
59
24
65
21,53 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Hose nozzle male thread BSP R x nozzle
Stainless steel fitting, quality AISI 316, V4A

Connection:
2-way male thread
Thread:
BSP pipe thread ISO 7-1/EN 10226-1 male thread conical (R), not self-sealing, sealing with hemp, sealing paste or similar.
Temperature:
-20°C to 200°C
Working pressure (PN):
20 bar | -20°C to 40°C
16.5 bar | 100°C
15 bar | 150°C
13.5 bar | 200°C
Material
Stainless steel AISI 316 | material 1.440 | X5CrNiMo 17-12-2 | V4A
DIN:
Dimensions conform to ISO 4144, connection thread to ISO 7/1 (DIN 2999 / BS 21)
Color:
Gray Stainless steel





Druck_Temperatur

The key data

  • Working temperature -20°C to 200°C
  • Working pressure PN 20 bar (300 psi)
  • Dimensioning according to ISO 4144
  • Whitworth thread, CNC machined according to ISO 7/1 (DIN 2999 / BS21)
  • Manufacturing standard UNE EN 10213-4, tolerance DIN 1.4408

Stainless steel (according to EN 10020) is a designation for alloyed or unalloyed steels with a special degree of purity. Steels whose sulphur and phosphorus content (so-called iron companions) does not exceed 0.025%.
Alloy 316 is a standard steel grade with molybdenum. The molybdenum gives alloy 316 better corrosion resistance than 304, in particular greater resistance to pitting and crevice corrosion in chloride-containing media. The austenitic structure gives this alloy a high degree of toughness, even at very low temperatures, high creep strength, creep rupture strength and tensile strength at elevated temperatures. The alloy is colloquially known as V4A stainless steel.

Stainless steel AISI 316 | material 1.4401 (X5CrNiMo17-12-2) (V4A) Application: According to DVGW worksheet W541 (basis for the requirements for stainless steel pipes for domestic drinking water installations), the steel material 1.4401 is the most commonly used.
It can be used in a wide range of applications in the chemical, petrochemical and natural gas industries, the food industry, corrosive environments and extreme temperatures ... Fluid technology, boilers, condensers, heat exchangers, reactors ...
