All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

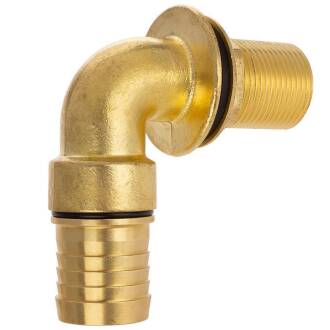

Brass tank bushing angled 90°, different versions
Rain barrel feedthrough, angled 90° tank feedthrough for individual use with flat and curved tanks or rain barrels with double seal, female threaded outlet, hose nozzle or GEKA claw coupling
Brass tank feed-through as 90° elbow with internal thread, GEKA claw coupling or hose nozzle - optionally 19 mm, 25 mm or 32 mm - for direct installation of a hose. Ideal for tanks or rain barrels. Our feed-through is equipped with two seals so that even a barrel with a slight bend can be sealed. The angle allows removal to the side or downwards without the risk of kinking the hose.Connection:
Male x female thread, hose nozzle or GEKA connection
Thread:
BSP pipe thread G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, not self-sealing , seal with hemp, sealing paste or similar.
Temperature:
-20°C to 90°C
Working pressure (PN):
10 bar
material:
Brass UNE EN 12165
Gasket:
2x NBR flat gasket, black
Hose nozzle seal:
NBR O-ring partially recessed
Gasket GEKA connection:
PTFE (Teflon) tape
Color:
Brass color
DOWNLOADRoHS confirmation HTC
DOWNLOADREACH addition brass HTC
DOWNLOAD The thread identification - or why 1" is not 25.4mm
READ MOREDetailed information: Brass hose nozzle
READ MOREDetails: Brass quick coupling GEKA similar
