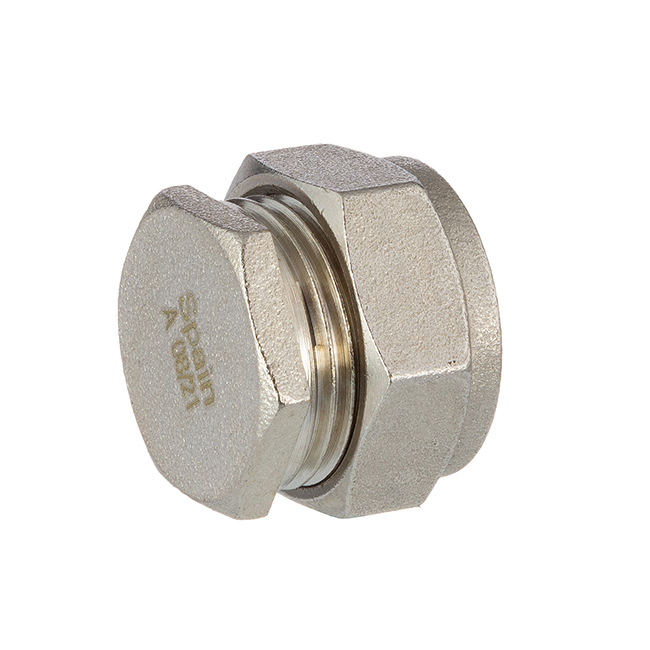

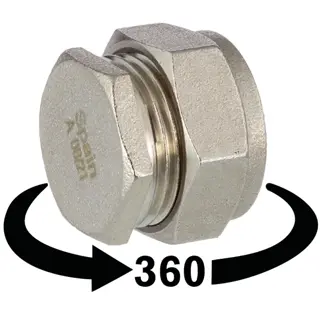

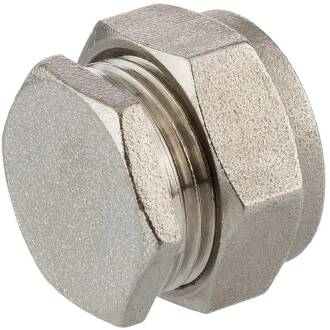

Brass end cap compression fitting

from
1,69 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
Variants

Item no.
Variation
A
B
CH1
CH2
Price
Quantity
MK0815.000.015
15mm
15
23
17
23,5
1,69 €*
pc.:
MK0815.000.018
18mm
18
23
26
28
2,39 €*
pc.:
MK0815.000.022
22mm
22
23
29
31,5
3,37 €*
pc.:

incl. 19% VAT , plus shipping costs

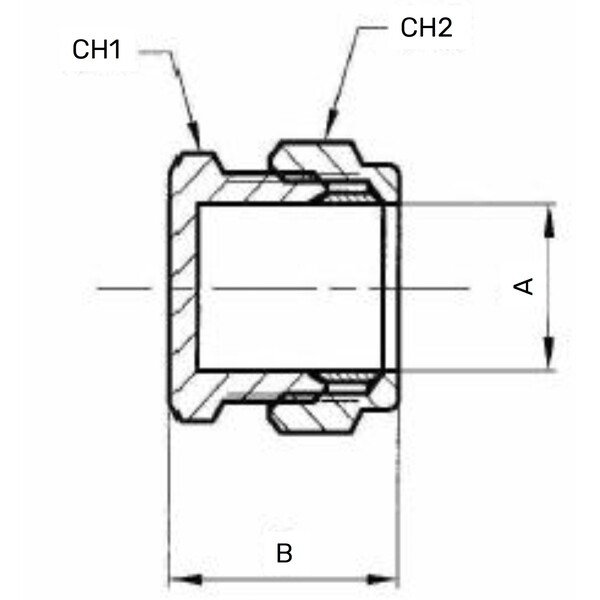

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

  • Körper aus vernickeltem Messing UNE EN 12164
  • Überwurfmutter aus vernickeltem Messing
  • Messingring
  • Beidseitige Durchflussrichtung
  • Temperaturbereich -20°C bis 180°C
  • max. Betriebsdruck PN 16 bei 30°C für Kalt- und Warmwasser
  • Konzipiert für den Einsatz mit Kupferrohr EN 1057:1996 und Edelstahlrohr BS4127:1994
  • Befestigungsgewinde nach ISO 228/1
  • Geeignet für den Einsatz in Schaltkreisen für die Wasserverteilung und nicht aggressive Flüssigkeiten mit höherer oder niedriger Dichte.

    Klemmfittings für Kupfer- und Edelstahlrohr sind durch das Water Regulations Advisory Scheme (WRAS) Konformitätszeichen in UK für den Einsatz mit Trinkwasser freigegeben und erfüllen den hohen Standard einer zugelassenen Sanitärarmatur.


  • Others
