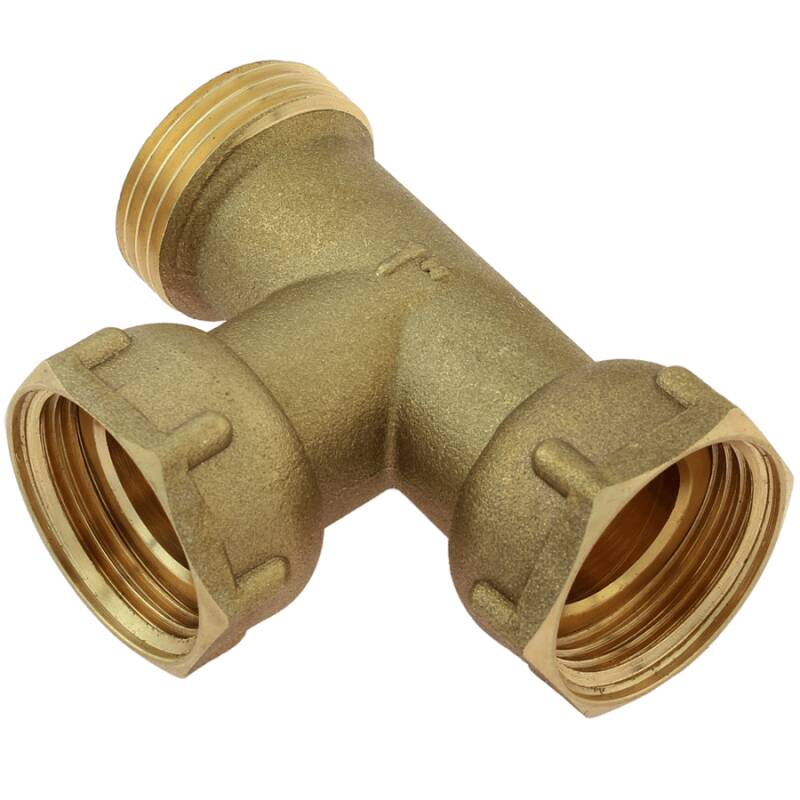

Brass female/male threaded tee 90° with nut F/F/M

SKU: MV0508
Auswahl Steuerzone / Lieferland
from
8,65 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
G
H
L
L1
L2
Price
Quantity
MV0508.025.025
3/4" (I/I/A)
3/4" (26,44mm)
28,5
56
11
8
8,65 €*
pc.:
MV0508.032.032
1" (I/I/A)
1" (33,25mm)
37
73
15
10
12,22 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Brass Tee 90° Reduced, 2x Internal Thread x External Thread (I/I/E)

Connection:
2x Internal Thread Overnut x External Thread
Material:
Brass CW61N (suitable for drinking water pipes)
External Thread:
BSP Pipe Thread ISO 228-1, not self-sealing, sealing with Teflon tape or similar
Internal Thread Overnut:
BSP Pipe Thread ISO 228-1, not self-sealing, sealing with flat gasket - not included - please order separately
Temperature:
-20°C to 150°C
Working Pressure (PN):
max. 6 bar at 20°C water medium


Sliding Nut - The Intelligent Nut


  • Complete accessory program
  • Unlimited possibilities
  • Enables all types of connections
  • Flat gasket and overnut provide perfect alignment
  • Ideal for installations in difficult places
  • Build distribution units according to your design without limits
  • Easy, simple, and safe application

High-quality brass construction,
Quality CW61N - suitable for drinking water for industrial, craft, and professional DIY use.

DOWNLOADRoHS Confirmation HTC
DOWNLOADREACH Supplement Brass HTC
DOWNLOAD The Thread Designation - or why 1" is not exactly 25.4mm
