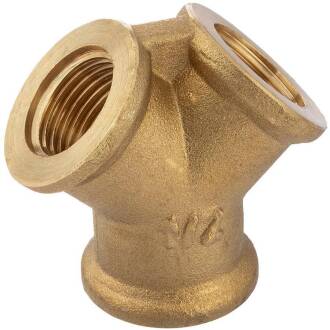

Brass female threaded Y-fitting

SKU: MF0508
Auswahl Steuerzone / Lieferland
from
5,47 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

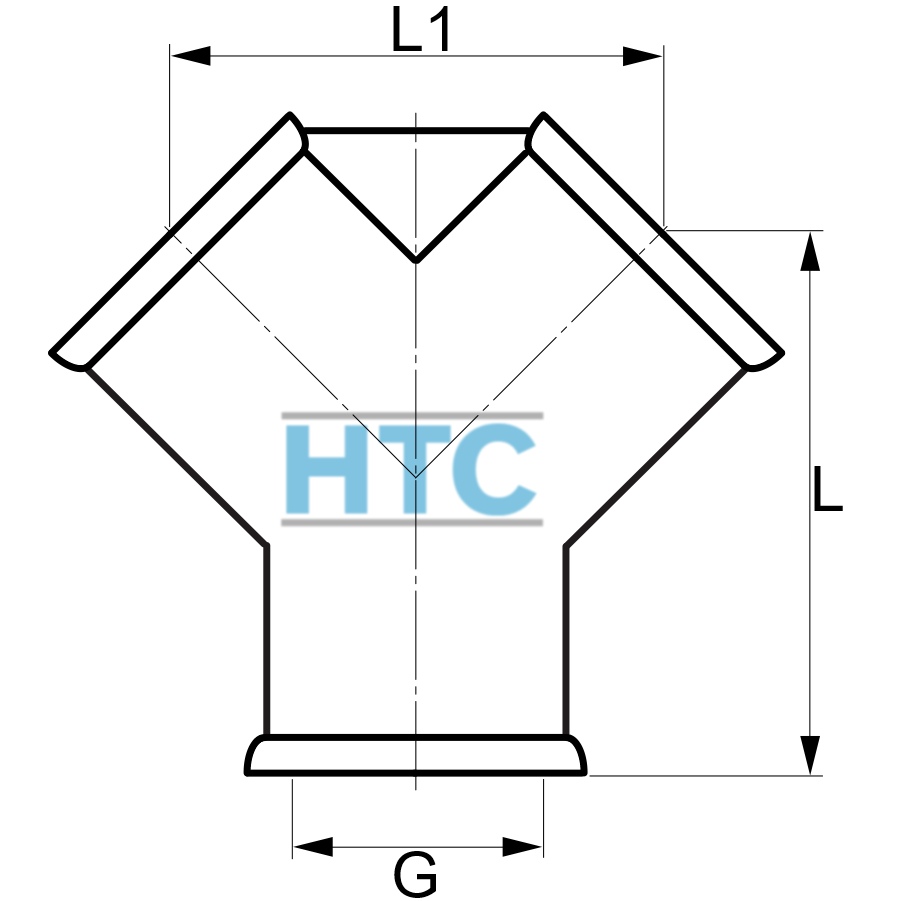

Item no.
Variation
G
L
L1
Price
Quantity
MF0508.000.016
3/8"
3/8" (16,66mm)
37
32
5,47 €*
pc:
MF0508.000.020
1/2"
1/2" (20,96mm)
40
34
6,37 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Messing Y-Stück 3fach Innengewinde

Anschluss:
3fach Innengewinde
Gewinde:
BSP Rohrgewinde G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, nicht selbstdichtend, Abdichtung mit Hanf, Dichtpaste o.ä.
Arbeitsdruck (PN):
PN 16 bar bei 30°C | PN 10 bar bei 65°C | PN 6 bar bei 110°C
Material:
Messing MS 58 | CW614N
DIN:
Dimensionen konform ISO 4144, Anschlussgewinde nach ISO 7/1 (DIN 2999 / BS 21)
Farbe:
Messing
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
