All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

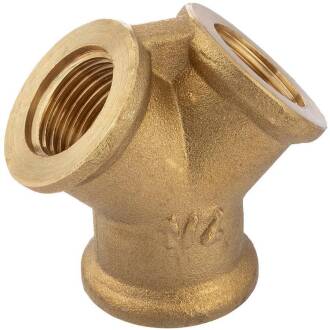

Brass Y-piece 3-way female thread
Connection:
3-way female thread
Thread:
BSP pipe thread G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, not self-sealing, sealing with hemp, sealing paste or similar.
Working pressure (PN):
PN 16 bar at 30°C | PN 10 bar at 65°C | PN 6 bar at 110°C
Material
Brass MS 58 | CW614N
DIN:
Dimensions conform to ISO 4144, connection thread to ISO 7/1 (DIN 2999 / BS 21)
Color:
Brass
DOWNLOADRoHS confirmation HTC
DOWNLOADREACH addition brass HTC
DOWNLOAD the thread identification - or why 1" is not 25.4mm
