Variants

Item no.
Variation
G
L
L1
Price
Quantity
MF0508.000.016
3/8"
3/8" (16,66mm)
37
32
5,47 €*
pc:
MF0508.000.020
1/2"
1/2" (20,96mm)
40
34
6,37 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

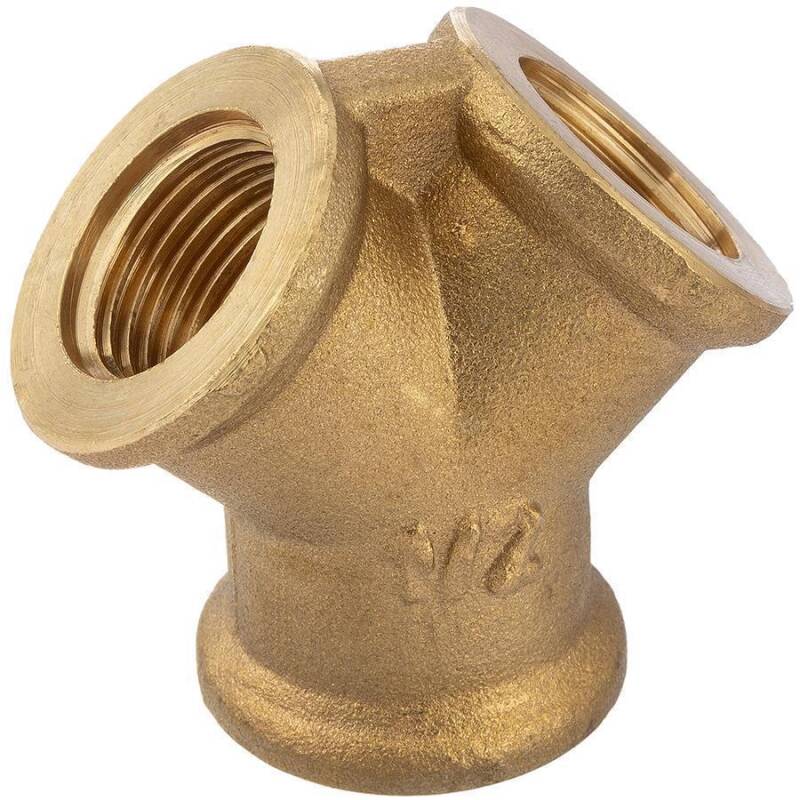

Messing Y-Stück 3fach Innengewinde

Anschluss:
3fach Innengewinde
Gewinde:
BSP Rohrgewinde G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, nicht selbstdichtend, Abdichtung mit Hanf, Dichtpaste o.ä.
Arbeitsdruck (PN):
PN 16 bar bei 30°C | PN 10 bar bei 65°C | PN 6 bar bei 110°C
Material:
Messing MS 58 | CW614N
DIN:
Dimensionen konform ISO 4144, Anschlussgewinde nach ISO 7/1 (DIN 2999 / BS 21)
Farbe:
Messing
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
