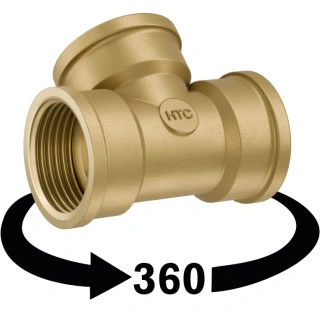

Brass female threaded tee 90°

SKU: MF0505
Auswahl Steuerzone / Lieferland
from
1,58 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
A
B
C
G
Price
Quantity
MF0505.000.016
3fach 3/8"
35
17,5
9
3/8" (16,66mm)
1,58 €*
pc:
MF0505.000.020
3fach 1/2"
46
24
13
1/2" (20,95mm)
1,65 €*
pc:
MF0505.000.025
3fach 3/4"
55
31
13
3/4" (26,44mm)
3,44 €*
pc:
MF0505.000.032
3fach 1"
64
32
15
1" (33,25mm)
5,53 €*
pc:
MF0505.000.040
3fach 1 1/4"
70
35
14,5
1 1/4" (41,91mm)
7,93 €*
pc:
MF0505.000.050
3fach 1 1/2"
81
40,5
17
1 1/2" (47,81mm)
11,29 €*
pc:
MF0505.000.063
3fach 2"
102
51
21
2" (59,61mm)
24,72 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

Messing T-Stück, 3fach Innengewinde

Anschluss:
3fach Innengewinde
Material:
Messing CW61N (für Trinkwasserleitungen verwendbar)
Gewinde:
BSP Rohrgewinde ISO 228-1, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
-20°C bis 150°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
