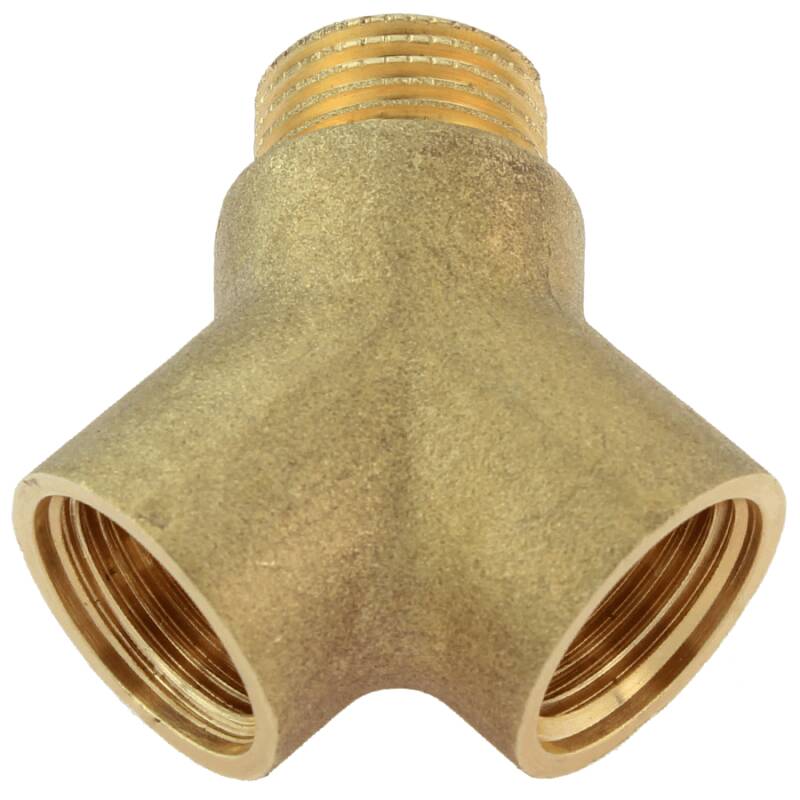

Brass male/female threaded Y-fitting F/F/M
4,22 €

including 19% VAT., plus shipping

Item number: MFB508

Item no. Variation Price Quantity
MFB508.020.020 1/2" 4,22 €*

including 19% VAT., plus shipping

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

Messing Y-Stück 2fach Innengewinde x Aussengewinde

Anschluss:
2fach Innengewinde x Aussengewinde
Gewinde:
BSP
Rohrgewinde

Das Whitworth-Gewinde, auch als Zoll-Gewinde bezeichnet wird heute als British Standard Thread (BSP) auf dem europäischem Festland angewendet.

Sir Joseph Whitworth führte es 1841 als ersten genormtes Gewinde in der Welt ein.

G DIN 2999 & BS21, ISO 228/1 & ISO 7/1,
nicht selbstdichtend

Ein nicht selbstdichtendes Gewinde besteht meist durch ein paralleles Innengewinde und ein konisches Aussengewinde. Man benötigt Teflonband oder Dichtfaden für Kunststoff bzw. Teflonband, Dichtfaden oder Hanf für Metallgewinde zum Abdichten.

, Abdichtung mit Hanf, Dichtpaste o.ä.
Arbeitsdruck (
PN
Pressure Nominal, englisch für Nenndruck, der Druck (in bar), für den genormte Rohrleitungsteile ausgelegt sind
):
PN 16 bar bei 30°C | PN 10 bar bei 65°C | PN 6 bar bei 110°C
Material:
Messing MS 58 | CW614N
DIN:
Dimensionen konform ISO 4144, Anschlussgewinde nach ISO 7/1 (DIN 2999 / BS 21)
Farbe:
Messing
