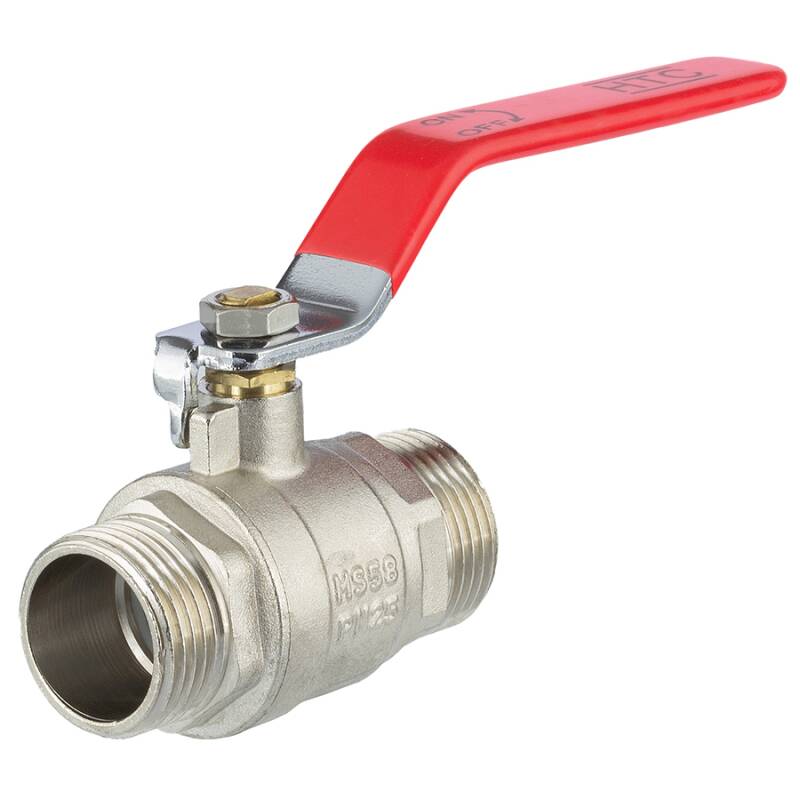

Brass male threaded ball valve with steel handle

SKU: MA0003
Auswahl Steuerzone / Lieferland
from
4,99 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
Variants

Item no.
Variation
DN
G
H
L
L1
Price
Quantity
MA0003.000.016
3/8"
10
3/8" (16,66mm)
43
52
86
4,99 €*
pc:
MA0003.000.020
1/2"
14
1/2" (20,95mm)
49
65,5
92
6,58 €*
pc:
MA0003.000.025
3/4"
17
3/4" (26,44mm)
53
72
93
9,44 €*
pc:
MA0003.000.032
1"
23
1" (33,25mm)
61
84
110
14,27 €*
pc:
MA0003.000.040
1 1/4"
30
1 1/4" (41,91mm)
72,5
90
132
25,78 €*
MA0003.000.050
1 1/2"
37
1 1/2" (47,81mm)
77
103
140
37,09 €*
pc:
MA0003.000.063
2"
47
2" (59,61mm)
86
122
149
59,01 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

Messing Kugelhahn Stahlhebel, 2fach Aussengewinde

Anschluss:
2fach Aussengewinde DIN 259
Gewinde:
BSP Rohrgewinde G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, nicht selbstdichtend, Abdichtung mit Hanf, Dichtpaste o.ä.
Einsatzgebiet:
geeignet für Druckluft, Kalt- und Warmwasser
Temperatur:
-20°C bis 150°C
Arbeitsdruck (PN):
25 bar bei 60°C
Material:
Messing MS 58 | CW614N
Dichtung:
PTFE (Teflon)
Durchlass:
full port - voller Durchlass
DIN:
Dimensionen konform ISO 4144, Anschlussgewinde nach ISO 7/1 (DIN 2999 / BS 21)
Farbe:
Messing verchromt, Griff Überzug Farbe: Rot oder Blau
Kugelhahn Messing Stahlhebel
Nr.
Teil
Material
1
Welle
Messing
2
Mutter
Stahl
3
Griff
Stahl
4
Einschraubmutter
Messing
5
Einlage
PTFE
6
O-Ring
NBR
7
Körper
Messing
8
Kugel
Messing verchromt
9
Kugelsitz
PTFE
10
Körpergegenstück
Messing
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
