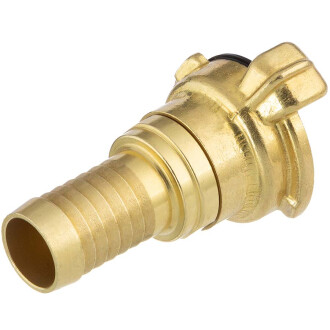

Brass quick bayonet coupling 360° with hose tail

from
4,00 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
Variants

Item no.
Variation
L
L1
NW
SLW
ø hose inside
Price
Quantity
GK0002.000.013
für Schlauch 13mm (1/2" Schlauch)
49
30
10
13
13 (1/2" Schlauch)
4,00 €*
pc.:
GK0002.000.019
für Schlauch 19mm (3/4" Schlauch)
48
33
17
19
19 (3/4" Schlauch)
4,11 €*
pc.:
GK0002.000.025
für Schlauch 25mm (1" Schlauch)
52
37
22
25
25 (1" Schlauch)
4,11 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

Messing Schnellkupplung Schlauchtülle 360° drehbar

Anschluss:
Schnellkupplung x Schlauchtülle drehbar
Temperatur:
ca. -10°C bis +90°C
Arbeitsdruck (PN):
max. 10 bar
Material:
Messing CW61N (für Trinkwasserleitungen verwendbar)
Dichtung:
NBR
  • Das Schlauchinnenmaß wird in mm angegeben. Die Bezeichnung 1/2" Schlauch oder auch 3/4" Schlauch bezieht sich auf die umgangssprachlich verwendeten, veralteten Maßgaben für Schlauch und ist nicht identisch mit den Zoll-Maßangaben für Fittings.
