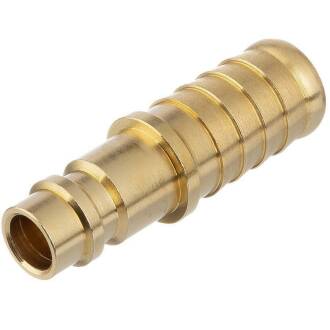

Brass quick release DN 7.2 plug nipple x hose nozzle

SKU: MF3006
Auswahl Steuerzone / Lieferland
from
0,89 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately

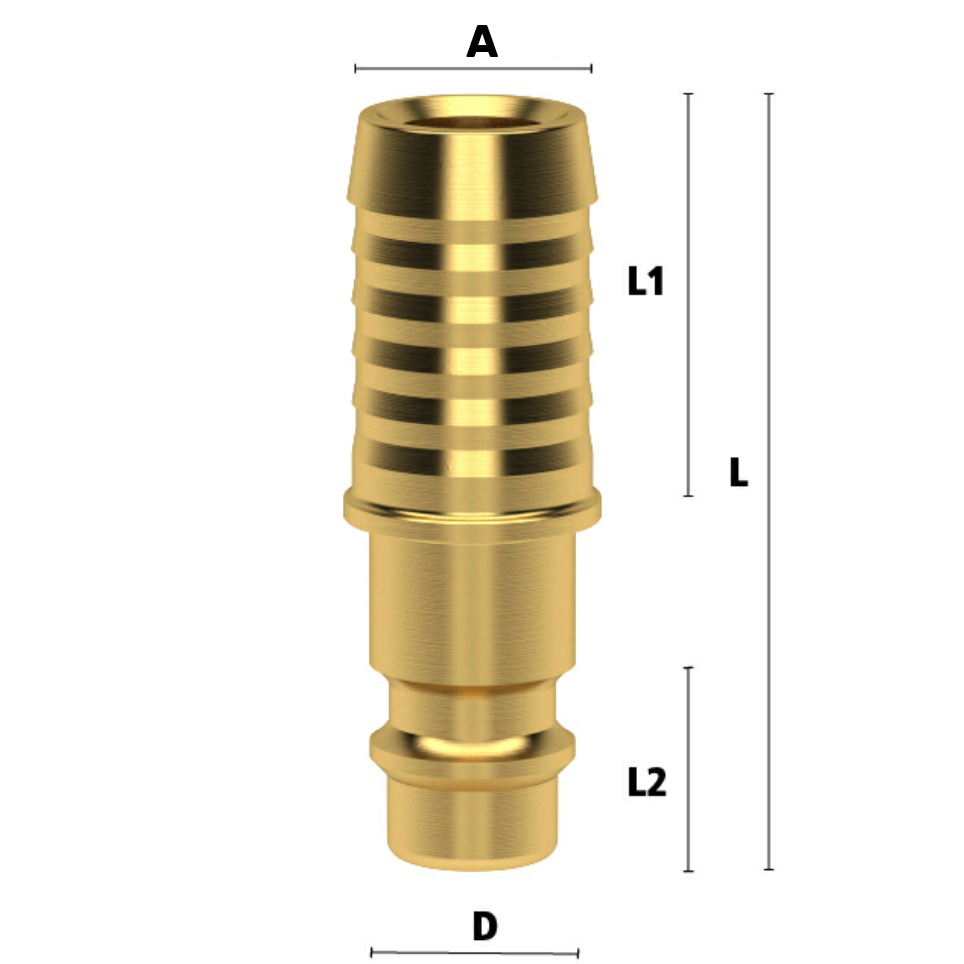

   Variants

Item no.
Variation
A
D
L
L1
L2
Price
Quantity
MF3006.072.006
DN 7,2 x 6mm
6
12
44
24
20
0,89 €*
pc.:
MF3006.072.009
DN 7,2 x 9mm
9
12
44
24
20
0,98 €*
pc.:
MF3006.072.013
DN 7,2 x 13mm
13
15
44
23
20
1,37 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Brass quick-release coupling DN 7.2 Plug nipple with hose nozzle

Coupling DN 7.2, brass MS 58, shut-off on one side

Connection:
Plug nipple x hose nozzle
Thread:
BSP pipe thread ISO 228-1, not self-sealing, seal with Teflon tape or similar.
Temperature:
-20°C to +100°C
Valve type:
free passage
Max. operating pressure:
PN 35 bar
medium:
Air etc.
material:
Brass MS 58
DOWNLOADRoHS confirmation HTC
DOWNLOADREACH addition brass HTC
DOWNLOAD the thread identification - or why 1" is not 25.4mm
