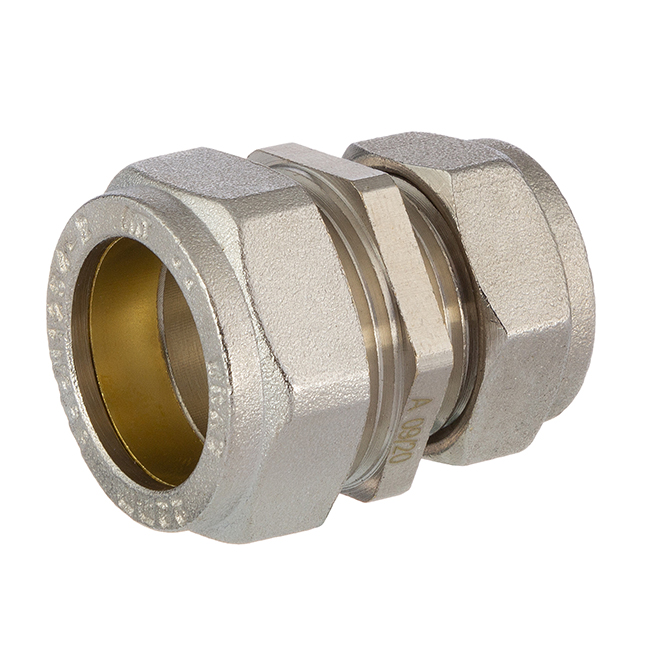

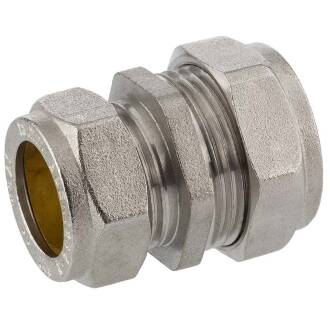

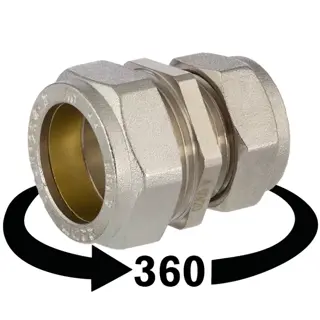

Brass reducing compression fitting

SKU: MK0202
Auswahl Steuerzone / Lieferland
from
2,58 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
A
B
C
CH1
CH2
Price
Quantity
MK0202.018.015
18 x 15mm
43
18
15
26
23,5
2,58 €*
pc.:
MK0202.022.015
22 x 15mm
46,5
22
15
29
23,5
3,38 €*
pc.:
MK0202.022.018
22 x 18mm
47,5
22
18
29
28
3,57 €*
pc.:
MK0202.028.022
28 x 22mm
50,5
28
22
35
31,5
7,34 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Brass connection sleeve 2-way terminal

Connection:
2-fold terminal
Material:
Nickel-plated brass body UNE EN 12164
Union nut made of nickel-plated brass UNE EN 12165
Brass clamping ring (can be used for drinking water pipes)
Thread:
BSP pipe thread ISO 228-1, not self-sealing, sealing with Teflon tape or similar.
Temperature:
-20°C to +120°C
Working pressure (PN):
max. PN 16 bar at 30°C (PN 6 bar at 110°C, PN 5 bar at 120°C) Medium: water
Application
For semi-hard or hard copper pipe and stainless steel pipe
Anzugsdrehmoment

The cutting ring

Important technical information:
The cutting ring may only be used once. If the fitting is dismantled and is to be used again, the cutting ring must be replaced.

DOWNLOADWRAS certification
DOWNLOAD the thread identification - or why 1" is not 25.4mm

Brass reducing sleeve 2-fold clamp for copper pipe and stainless steel pipe

Connect semi-hard or hard copper pipe (bar stock) and stainless steel pipe with different outside diameters with the brass reducing sleeve 2-fold clamp without expensive special tools. Can be used universally for cold water pipes, hot water pipes, solar system connections or compressed air pipes without soldering or pressing - so the connection can be disconnected again at any time.

In addition to a high quality standard, our brass compression fitting range is characterized by the fact that it can also be used for drinking water pipes. This is confirmed by the WRAS product certification.

The brass fittings for clamping copper pipes and stainless steel pipes are an excellent alternative to soldered fittings or press fittings when using stainless steel pipes. A compressed air line or solar system connection, for example, can be created quickly and inexpensively with these solar clamp connectors.

Quality, price and service - these three cornerstones of our trading philosophy give our customers the certainty: in the Fitting Online Shop PVC-Welt.de you buy first-class products at reasonable prices. We don't just advertise with certificates or features, but also fully substantiate these with downloads or awards in the item description. This constant maintenance of the product range only works if a highly motivated team wants to give the best for its customers every day.
