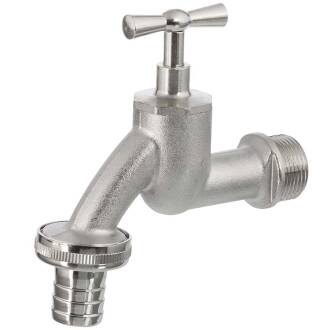

Brass tap outlet tap

SKU: MA0033
Auswahl Steuerzone / Lieferland
from
7,06 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
B
D
G
G1
H
L
L1
L2
Price
Quantity
MA0033.S20.025
1/2" x 3/4" (Tülle)
24
14,5
1/2" (20,96mm)
3/4" (26,44mm)
73
88
54,5
11
7,06 €*
pc.:
MA0033.S25.032
3/4" x 1" (Tülle)
30
20
3/4" (26,44mm)
1" (33,25mm)
87
100
57
13,5
10,63 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Brass Drain Cock, Water Tap, External Thread x Screw-on Nozzle

Connection:
External thread x External thread (including screw-on nozzle)
Material:
Brass CW617N (suitable for drinking water pipelines)
Thread:
BSP pipe thread G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, non-self-sealing, sealed with hemp, sealing paste or similar
Application:
Suitable for cold and hot water
Working Pressure (PN):
10 bar at 20°C | 4 bar at 80°C medium water
Color:
Nickel-plated brass
DOWNLOADRoHS Confirmation HTC
DOWNLOADREACH Supplement Brass HTC
DOWNLOAD The Thread Designation - or why 1" is not exactly 25.4mm
