Variants

Product picture
Item no.
Variation
B
D
d1
H
I
L
P
Price
Quantity

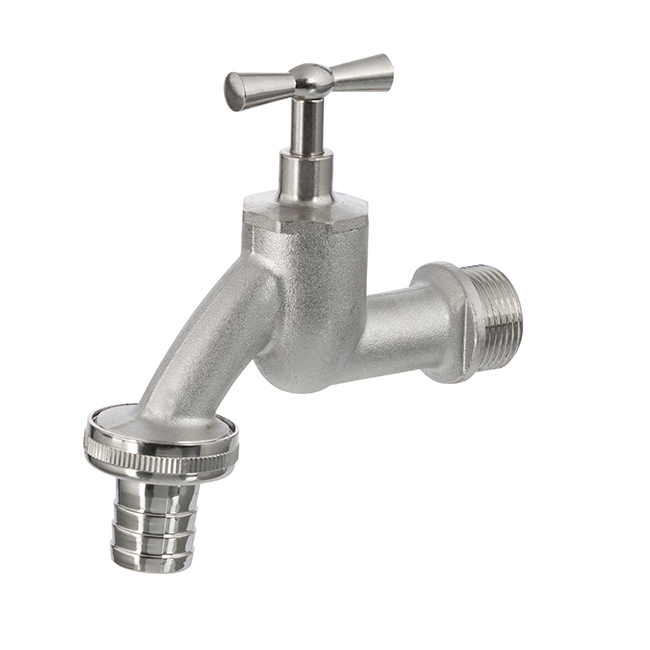

Brass ball valve spigot male thread x QuickConnector chromed 1/2" x 3/4"(13mm hose tail)
MA0033.S20.025
1/2" x 3/4" (13mm Tülle)
23
14
1/2" (20,96mm)
70
11
93
55
8,82 €*
pc.:
Brass ball valve spigot male thread x QuickConnector chromed 3/4" x 1" (19mm hose tail)
MA0033.S25.032
3/4" x 1"(19mm Tülle)
30
19
3/4" (26,44mm)
80
14
94
60
13,32 €*
pc.:
Brass ball valve spigot male thread x QuickConnector polished 1/2" x 3/4"(16mm hose tail)
MA0033.G20.025
1/2" x 3/4" (16mm Tülle)
24
16,5
1/2" (20,96mm)
81
10,5
93
54
11,34 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

Messing Auslaufhahn, Wasserhahn, Aussengewinde x Aufschraubtülle

Anschluss:
Aussengewinde x Aussengewinde (incl. Aufschraubtülle)
Gewinde:
BSP Rohrgewinde G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, nicht selbstdichtend, Abdichtung mit Hanf, Dichtpaste o.ä.
Einsatzgebiet:
geeignet für Kalt- und Warmwasser
Arbeitsdruck (PN):
10 bar bei 20°C | 4 bar bei 80°C Medium Wasser
Material:
Messing MS 58 | CW614N
Farbe:
Messing verchromt oder Messing natur poliert (nach Auswahl)
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
