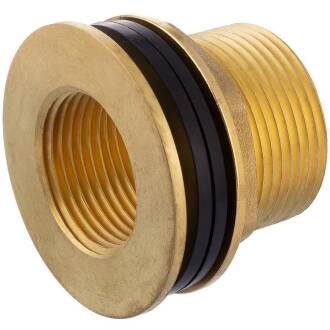

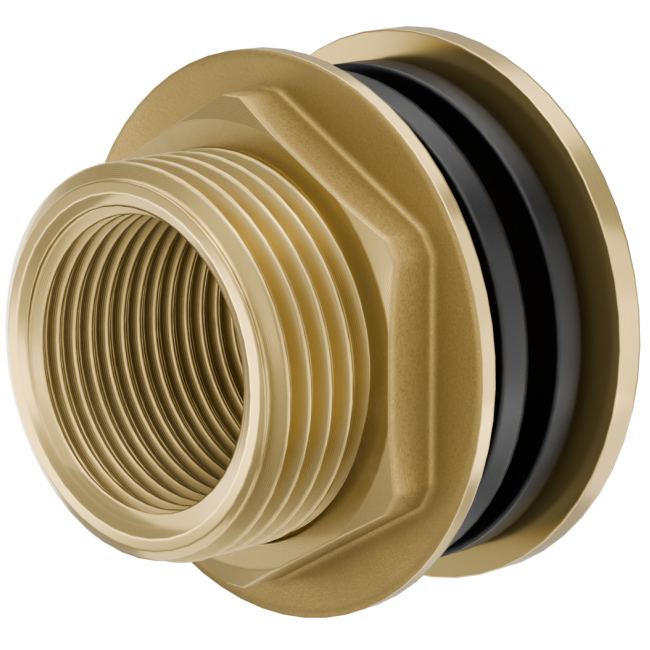

Brass water tank connector

SKU: MF0821
Auswahl Steuerzone / Lieferland
from
3,20 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture

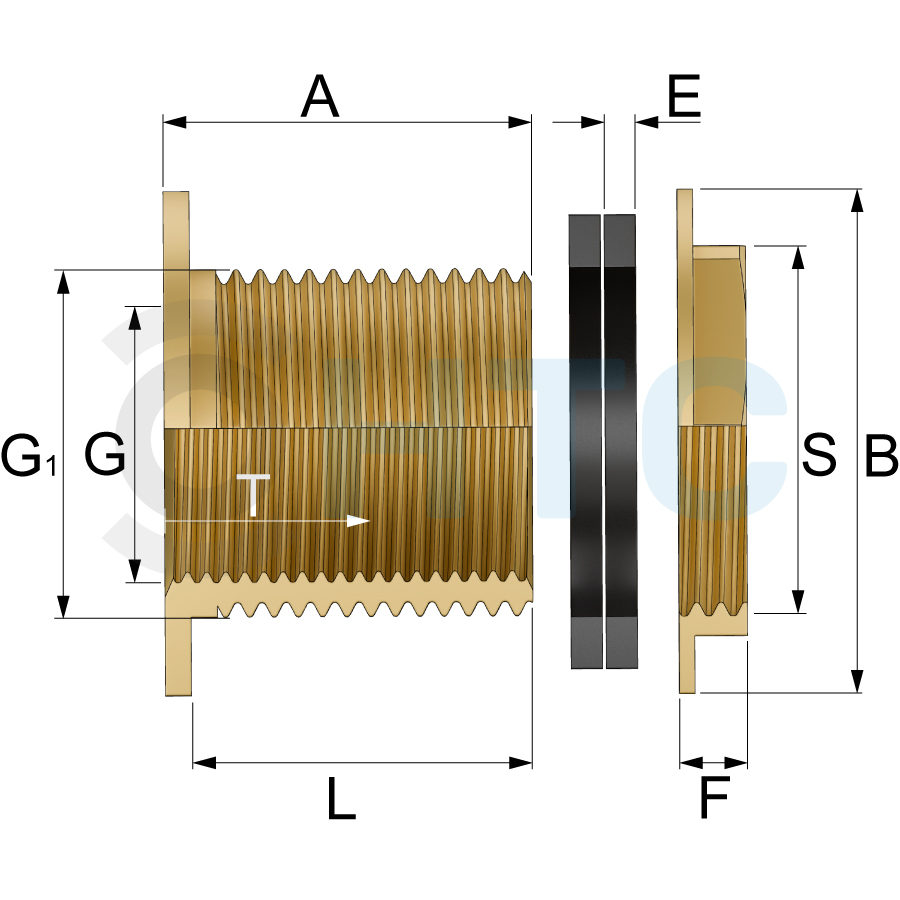

Item no.
Variation
A
B
E
F
G
G1
L
S
T
Price
Quantity
Brass water tank connector 3/4" x 1/2"
MF0821.025.020
3/4" x 1/2"
35
40
2
8
1/2" (20,95mm)
3/4" (26,44mm)
32
30
35
3,20 €*
pc:
Brass water tank connector 1" x 3/4"
MF0821.032.025
1" x 3/4"
30
48
2
8,5
3/4" (26,44mm)
1" (33,25mm)
27
37
30
3,50 €*
pc:
Brass water tank connector 1 1/4" x 1"
MF0821.040.032
1 1/4" x 1"
45
56
3
9
1" (33,25mm)
1 1/4" (41,91mm)
42
46
17
6,95 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

Brass rain barrel feedthrough

Rain barrel feed-through, container feed-through for individual use with flat and curved containers or rain barrels with double seal

Connection:
Male x female thread
Thread:
BSP pipe thread G DIN 2999 & BS21, ISO 228/1 & ISO 7/1, not self-sealing , seal with hemp, sealing paste or similar.
Temperature:
-20°C to 90°C
Working pressure (PN):
10 bar
material:
Brass UNE EN 12165
Gasket:
2x NBR flat gasket, black
Color:
Brass colored
Regentonnendurchführung

Rain barrel feed-through Mounting example 30 l mash tun

  • Can also be easily attached to small round bin diameters
  • In the example, both seals are fitted on the outside to compensate for the curvature of the barrel
  • support sealing with silicone for narrower tank curvatures
  • Inner diameter 3/4", therefore individually attachable or equippable
  • The individually applicable rainwater barrel feed-through from

DOWNLOADRoHS confirmation HTC
DOWNLOADREACH addition brass HTC
DOWNLOAD the thread identification - or why 1" is not 25.4mm
