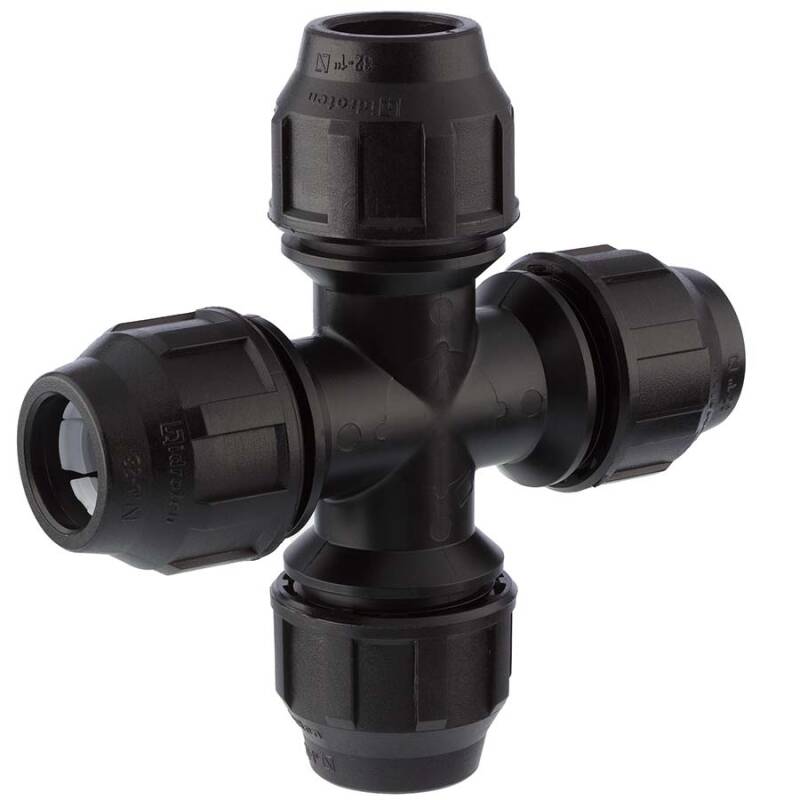

Cross compression fitting

from
7,47 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Item no.
Variation
A
B
C
Pipe O-ø
Price
Quantity
PZ0509.000.020
20mm
20
46
167
20
7,47 €*
pc.:
PZ0509.000.025
25mm
25
55
182
25
8,07 €*
pc.:
PZ0509.000.032
32mm
32
64
198
32
10,63 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are in millimeters, weights in grams. For photographic representations, we use an item size and studio lighting. The images, technical data, dimensions, and designs are non-binding. They do not constitute warranted properties or guarantees of quality or durability. We reserve the right to make changes at any time without notice. The usable dimensions are defined or emphasized, or are derived from the item description. Additional dimensions are provided solely for illustrative purposes. Please note this in the event of misuse.

   Description

PP Klemmringverschraubung Kreuz, 4fach Klemme

PP Klemmringverschraubung für den universellen Einsatz bei Brauchwasser, Trinkwasser im privaten Bereich, Bewässerung sowie industriellen Anforderungen

Anschluss:
4fach Klemme
Temperatur:
bis 60°C konstant, kurzzeitig 80°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C
Material:
PP Polypropylen
O-Ring:
NBR
Farbe:
Schwarz, Überwurfmutter: Schwarz
Verwendung:
Rohre aus PELD, PEHD, PE40, PE80, PE100

Bewässerung:

  • Landwirtschaft, Gärtnerei & Gartenbau, Weinberge

Besprengung:

  • Wohngebiete, kommunale Bereiche, Sportplätze, Golfplätze, Reitplätze

Industrie:

  • Wasserversorgung, Versorgung mit korrodierenden Flüssigkeiten, Kabelschutz

Qualität:

  • Wetter, UV- und Ozonbeständig, Innengewinde mit Verstärkungsring (außer separat vermerkt)

Preis/Leistung:

  • unser Markenprodukt mit hervorragendem Preis-/Leistungsverhältnis

DOWNLOAD RoHS Konformitätserklärung - Hidroten

DOWNLOAD verarbeiten von PP Klemm Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOADabdichten und verbinden von Kunststoffgewinden
DOWNLOAD PP Polypropylen Temperatur-/Druckdiagramm
DOWNLOAD chemische Beständigkeit von Kunststoffen
