Variants

Item no.
Variation
D
G (mm)
S
Price
Quantity
DI0002.000.016
3/8"
8
~ 15
2
0,42 €*
pc.:
DI0002.000.020
1/2"
10,5
~ 19
2,5
0,61 €*
pc.:
DI0002.000.025
3/4"
15,5
~ 24
2,5
0,65 €*
pc.:
DI0002.000.032
1"
21
~ 30
2,5
0,73 €*
DI0002.000.040
1 1/4"
26,5
~ 39
2,5
0,82 €*
pc.:
DI0002.000.050
1 1/2"
33,3
~ 44,8
2,5
0,98 €*
pc.:
DI0002.000.063
2"
43
~ 56,5
2,5
1,73 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

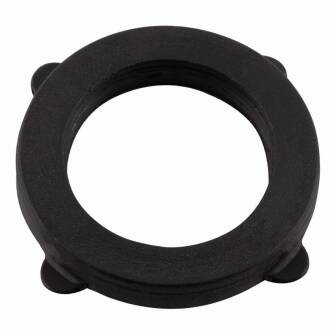

EPDM Flachdichtung mit Profil für Innengewinde oder Überwurmutter

Die Flachdichtung benötigt am Ende des Gewindekanals eine Auflagefläche (Zeichnung Rot markiert). Die Gewindetiefe des Aussengewindes muß länger als die Einstichtiefe des Innengewindes sein.


DOWNLOAD RoSH Konformitätserklärung - Bucchi s.R.l.

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
