Flat gasket professional for stub and flange

SKU: AFZ721
Auswahl Steuerzone / Lieferland
from
0,42 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
A
e
K
Price
Quantity
Flat gasket professional for stub and flange 20mm
AFZ721.000.020
20mm
20
2
65
0,42 €*
pc:

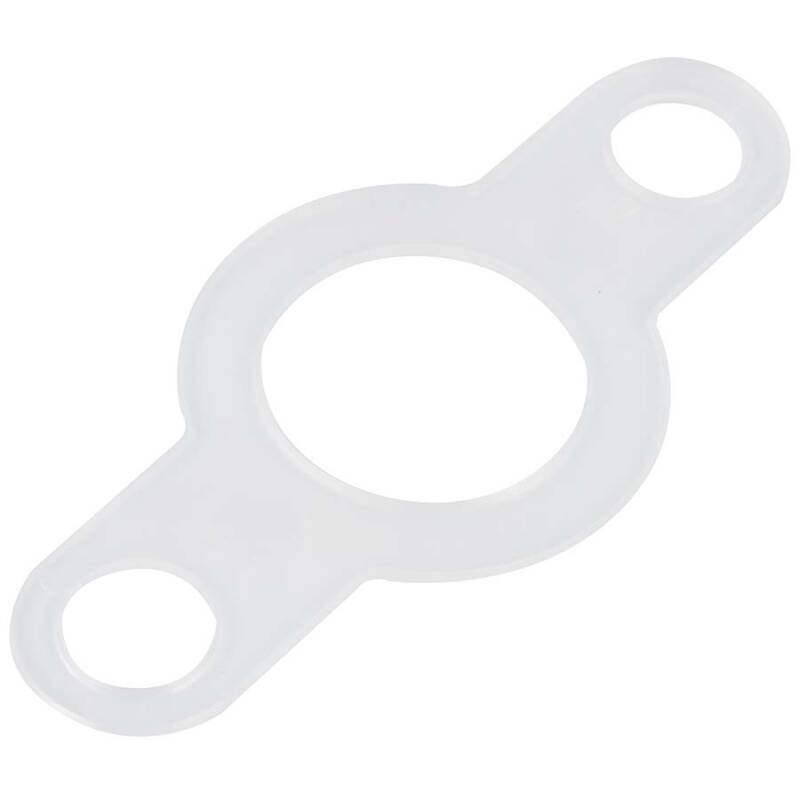

Flat gasket professional for stub and flange 25mm
AFZ721.000.025
25mm
25
2
75
0,43 €*
pc:
Flat gasket professional for stub and flange 32mm
AF0709.000.032
32mm
32
2
85
0,45 €*
pc:
Flat gasket professional for stub and flange 40mm
AFZ721.000.040
40mm
40
2
100
0,60 €*
pc:
Flat gasket professional for stub and flange 50mm
AFZ721.000.050
50mm
50
3
110
0,62 €*
pc:
Flat gasket professional for stub and flange 63mm
AF0709.000.063
63mm
63
3
125
0,67 €*
pc:
Flat gasket professional for stub and flange 75mm
AF0709.000.075
75mm
75
3
145
0,83 €*
pc:

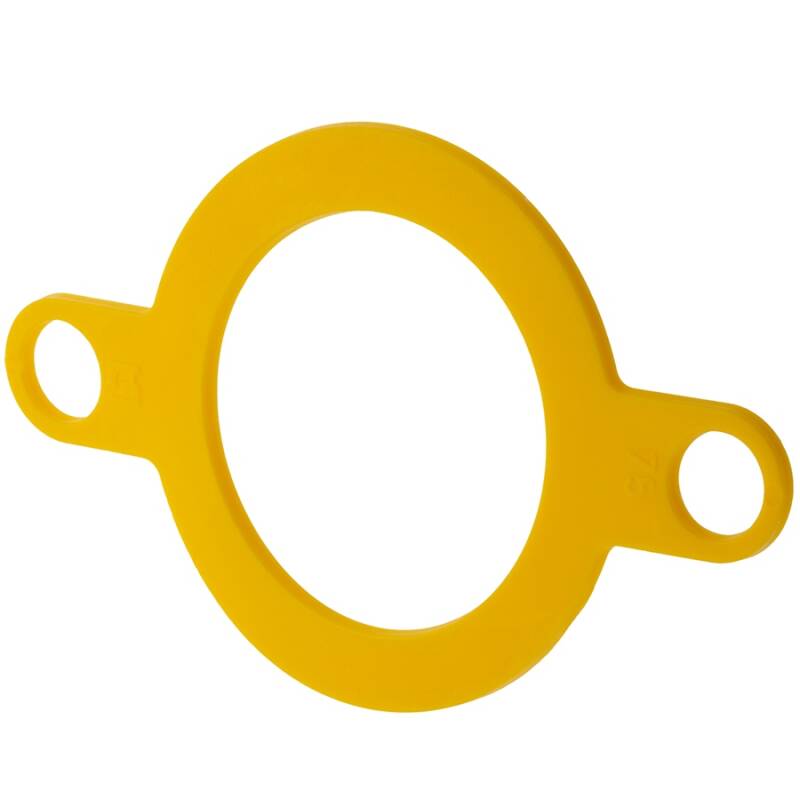

Flat gasket professional for stub and flange 90mm
AFZ721.000.090
90mm
90
3,4
160
1,29 €*
pc:
Flat gasket professional for stub and flange 110mm
AF0709.000.110
110mm
110
4,2
180
1,52 €*
pc:
Flat gasket professional for stub and flange 125mm
AFZ721.000.125
125mm
125
4,2
190
1,99 €*
pc:
Flat gasket professional for stub and flange 160mm
AF0709.000.160
160mm
160
4,3
240
2,59 €*
pc:
Flat gasket professional for stub and flange 200mm
AF0709.000.200
200mm
200
5,2
270
3,45 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

Flachdichtung EVA für Bundbuchse Flansch

Anschluss:
Dichtung für Bundbuchse Flansch
Temperatur:
bis 60°C konstant, kurzzeitig 80°C
Material:
EVA, kautschukähnlicher Elastomer
Farbe:
Gelb

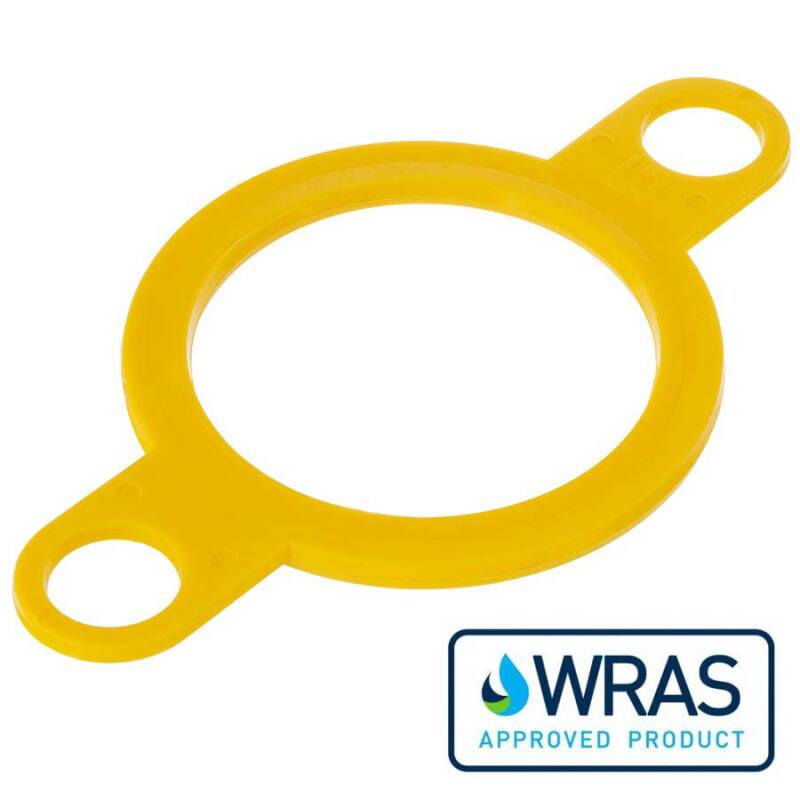

Dichtung Profi WRAS Anwendung

Flachdichtung Profi - WRAS approved - für Bundbuchse Flansche

Dank der beiden seitlichen "Ohren" ist die Flachdichtung Profi - WRAS approved - leicht beim Einbau an zwei Schrauben zu fixieren und bleibt während der Montage in dieser Position.
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
