Gate valve - Valterra

SKU: AK1001
Auswahl Steuerzone / Lieferland
from
5,00 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
A
B
C
D
E
F
bar
Price
Quantity
Valterra 50mm slide valve
AK1001.0SB.120
50mm
168
222
72,6
50
98
98
max. 3,5
18,72 €*
pc.:

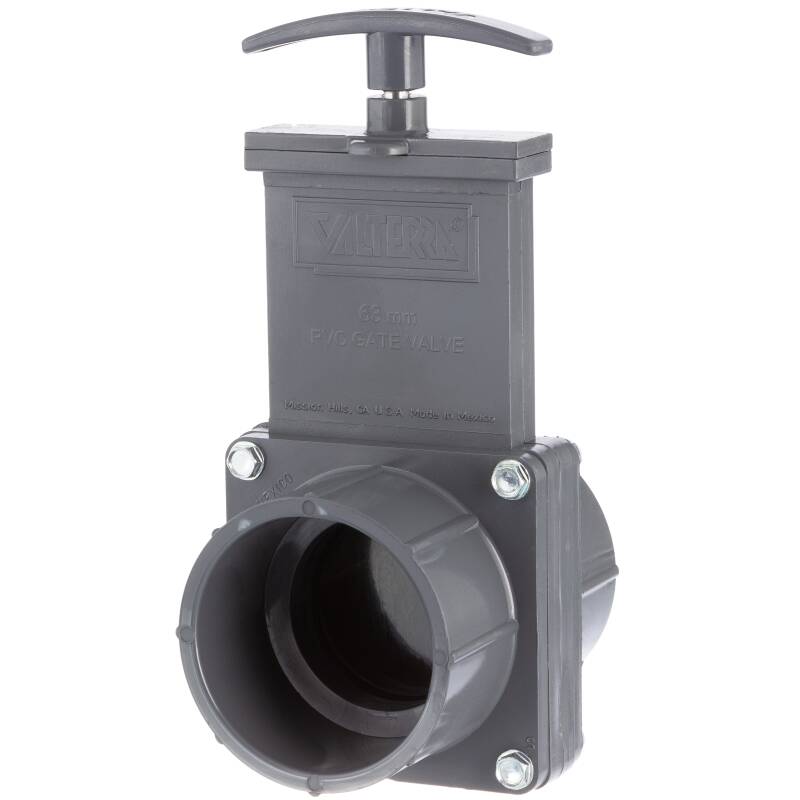

Valterra Zugschieber 63mm
AK1001.0SB.121
63mm
191
260
85,4
63
111
105
max. 2,8
27,23 €*
pc.:

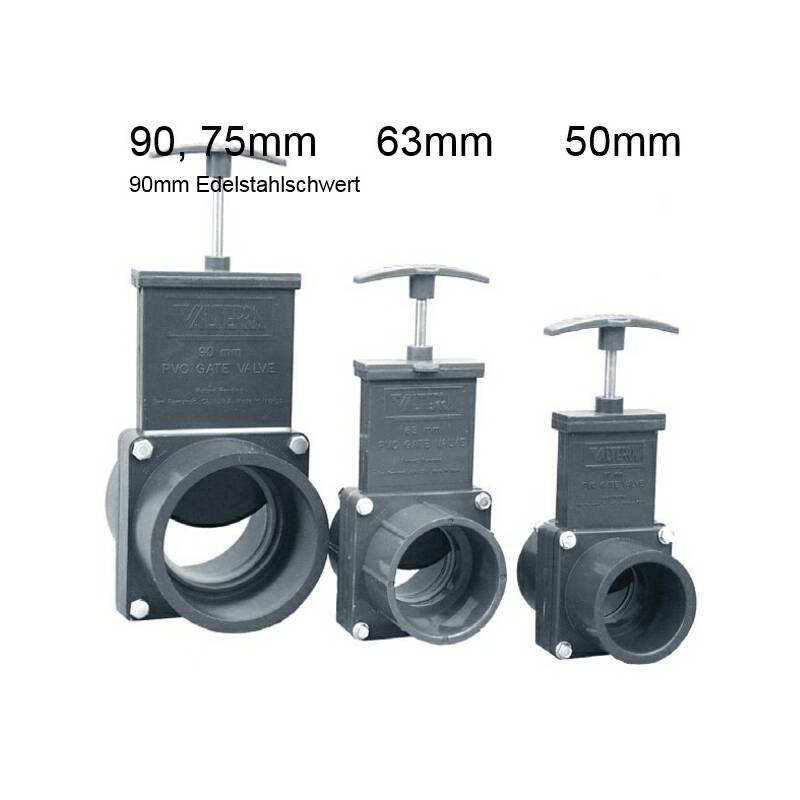

Valterra Zugschieber 75mm
AK1001.0SB.119
75mm
238
324
111
75
130
133
max. 1,4
34,22 €*
pc.:
Valterra Zugschieber 90mm Edelstahlschwert
AK1001.0SB.118
90mm
238
324
111
90
130
133
max. 1,4
64,11 €*

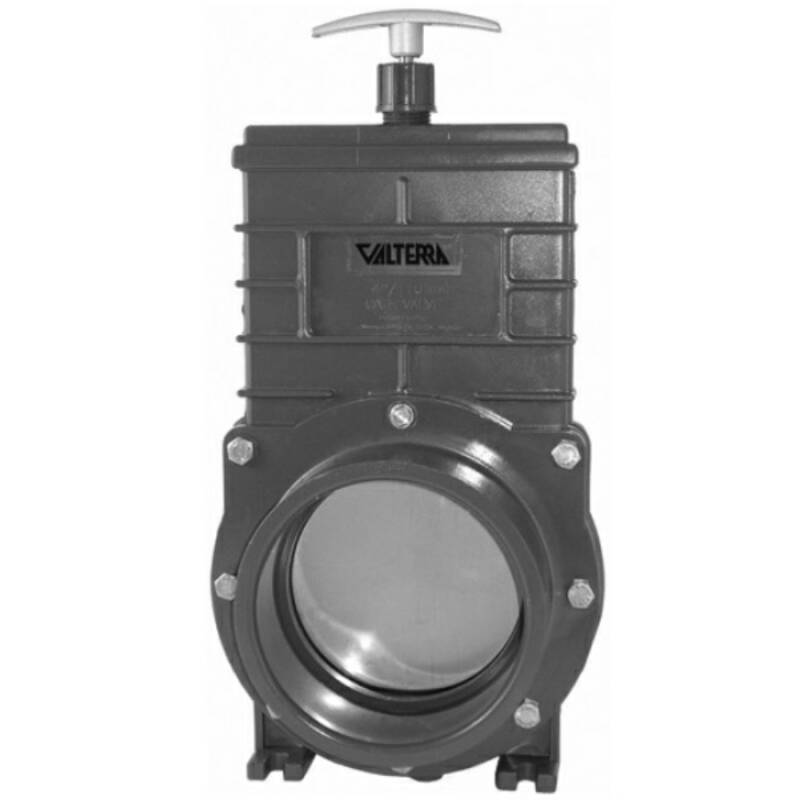

Valterra Zugschieber 110mm Edelstahlschwert
SB123
110mm
330
454
169
110
181
130
max. 1,0
61,48 €*
pc.:

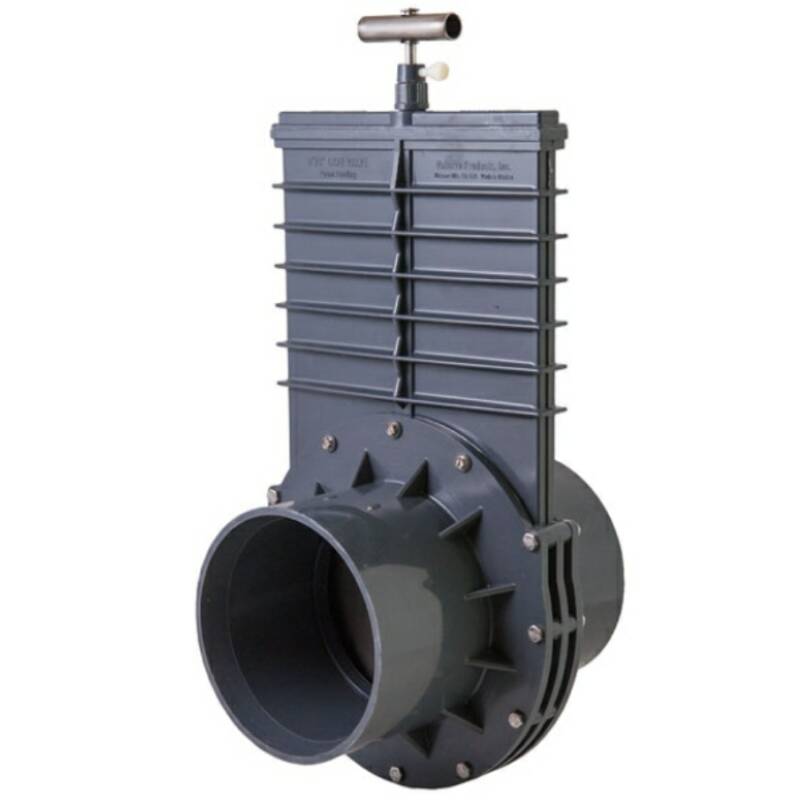

Valterra Zugschieber 160mm Edelstahlschwert
SB124
160mm
572
800
279,4
160
343
279
max. 1,0
Keine Express-Lieferung
452,59 €*
pc.:
Valterra Zugschieber 200mm Edelstahlschwert
SB125
200mm
572
797
279,4
200
327
276
max. 1,0
Keine Express-Lieferung
659,74 €*
pc.:
Valterra Zugschieber 250mm Edelstahlschwert
SB116
250mm
889
1232
470
250
514
342
max. 0,5
Keine Express-Lieferung
680,36 €*
Valterra Zugschieber 315mm Edelstahlschwert
SB117
315mm
889
1232
470
315
485
409
max. 0,5
Keine Express-Lieferung
1.135,89 €*
Gate valve - Valterra
AK1001.0SB.126

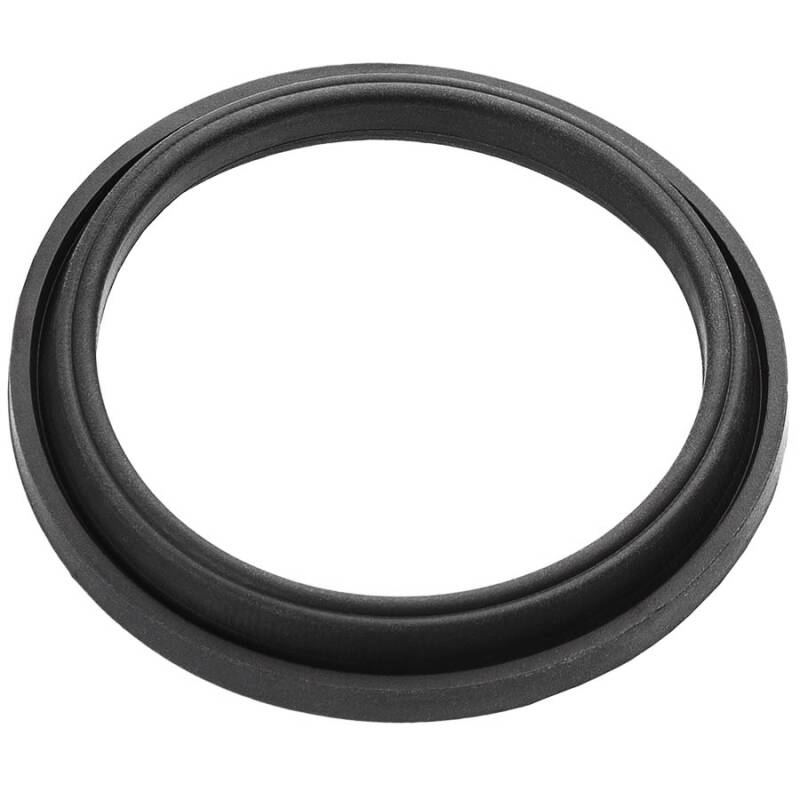

Dichtungsring für 50mm
---
---
---
---
---
---
6,89 €*
Gate valve - Valterra
AK1001.0SB.127
Dichtungsring für 63mm
---
---
---
---
---
---
---
8,19 €*
pc.:
Minimum order quantity: 2
Gate valve - Valterra
AK1001.0SB.128
Dichtungsring für 75/90mm
---
---
---
---
---
---
---
11,61 €*
pc.:
Minimum order quantity: 2
Gate valve - Valterra
AK1001.0SB.129
Dichtungsring für 110mm
---
---
---
---
---
---
---
13,35 €*
pc.:
Minimum order quantity: 2
Gate valve - Valterra
AK1001.0SB.092

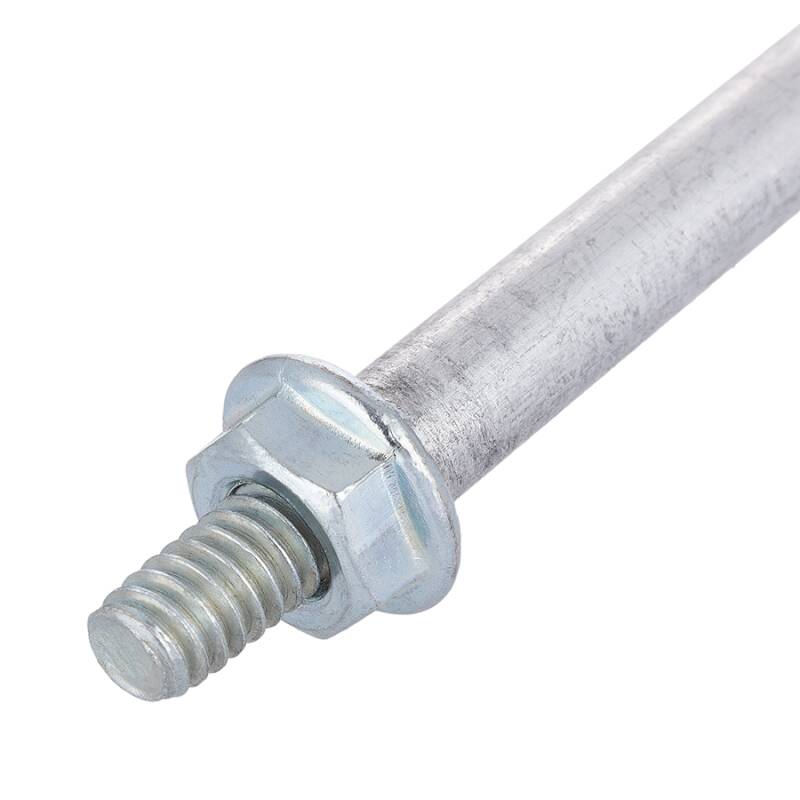

Verlängerung Alu 75cm
---
---
---
---
---
---
31,76 €*
pc.:
Gate valve - Valterra
AK1001.0SB.094
Verlängerung Alu 100cm
---
---
---
---
---
---
---
41,71 €*
pc.:
Gate valve - Valterra
AK1001.0SB.096

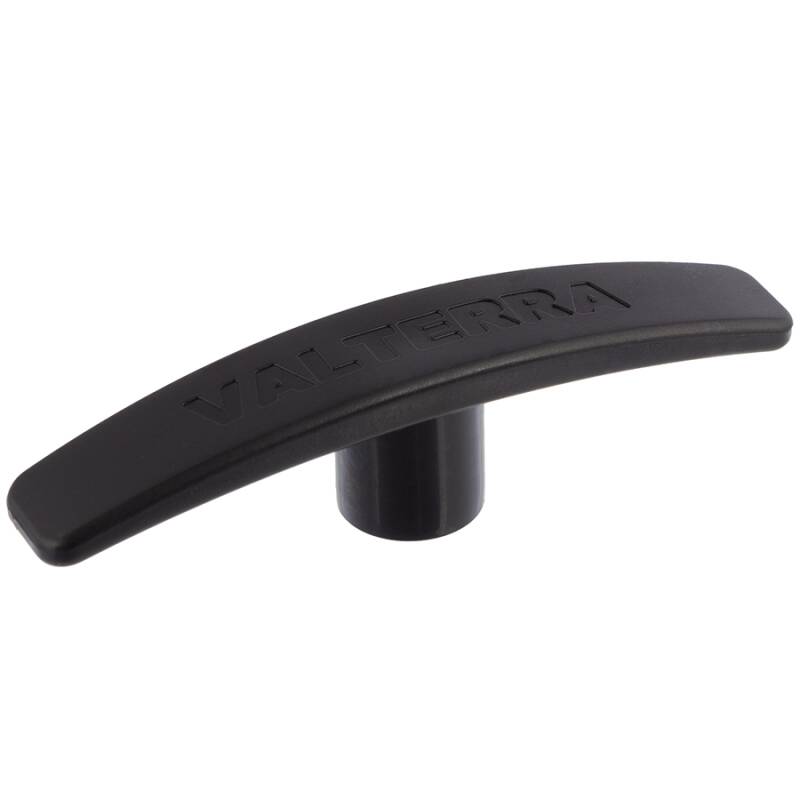

Griff Kunststoff
---
---
---
---
---
---
---
5,00 €*
pc.:
Gate valve - Valterra Griff Aluminium
AK1001.0SB.097

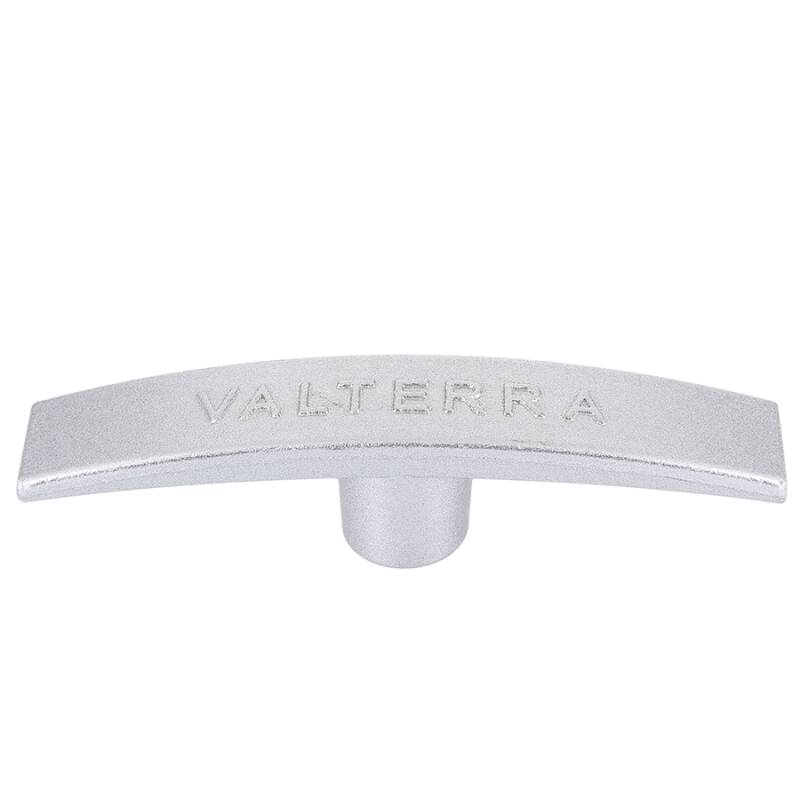

Griff Aluminium
---
---
---
---
---
---
---
7,26 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

Valterra Zugschieber

PVC Zugschieber mit einer Spindel aus Edelstahl mit dreifacher Dichtung im oberen Teil (3x O-Ring aus Santopren).
Ideal für drucklose oder Niederdruck Anlagen sowie als Not-Schieber bei drückenden Wässern.

  • 50 - 75mm Schwert aus Kunststoff
  • 90 - 315mm Schwert aus Edelstahl
